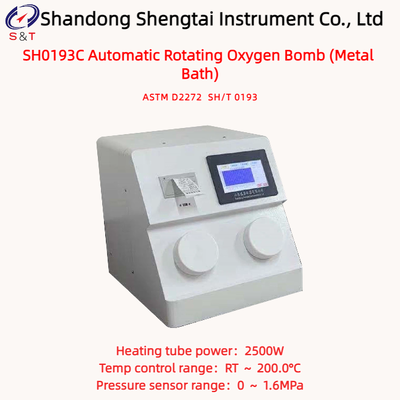

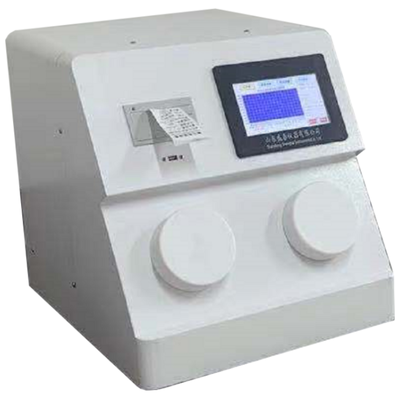

ASTM D2272 Dual Holes Metal Bath Auto Rotaing Bomb Analyzer For Gear Oil RT ～ 200.0°C

SH0193C Automatic Rotating Oxygen Bomb Metal Bath

Standard: ASTM D2272 SH/T 0193

ASTM D2272 dual holes metal bath auto rotaing bomb analyzer for gear oil RT ～ 200.0°C

SH0193C automatic rotating oxygen bomb tester is designed and manufactured according to the national standard ASTM D2272-2009 "Lubricating oil oxidation stability determination method" metal bath standard. Suitable for assessing the oxidation stability of new and in-service turbine oils with the same composition (base oils and additives). It can also be used to evaluate new mineral insulating oils containing 2, 6- ditert-butylp-cresol, as a quick method to evaluate their oxidation stability. The test results are used to test the new mineral insulating oil containing 2, 6- dit-butyl p-cresol or 2, 6- dit-butyl phenol or both, and the performance of each batch of oil can be continuously controlled.

The performance characteristics

● Used for new oil, in-service oil, steam turbine oil, lubricating oil, insulating oil, and automotive gasoline engine oil, among others.

● The metal measuring tank reduces the unpleasant odor emitted by the medium oil during experiments and eliminates potential hazards that may arise from prolonged testing periods.

● It can automatically perform pressure testing, data recording, oxidation time calculation, and terminate the test.

● Metal bath heating without the need for liquid medium.

● Ventilation is straightforward; no need to place it in a fume hood, as exhaust gases and odors can be easily discharged through plastic pipes.

● Up to 2 sets of experiments can be controlled simultaneously

● Sample temperature sensor assembly: Measures the temperature of the sample during testing

● Instrument display: 7-inch color touch screen, aesthetically pleasing interface, simple operation

● High level of automation: automatic constant temperature, automatic oxygen charging, automatic leak detection, automatic recording of test data with real-time curve display, automatic determination of test turning points, and automatic heating shutdown upon test completion.

● Miniature Printer: Panel-type thermal.

● Utilizes imported PT100 temperature sensors

● High-precision barometric pressure sensor with high sensitivity

Technical Specifications:

Note: The appearance, dimensions, volume, and weight of the instrument are for reference only. Updates to the instrument may involve minor changes, and no further notice will be provided.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
