ASTM D1384 Engine Coolant Corrosion Test Device 3 Hole Electric Plate Heating Method

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH0085B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH0085B Working Power Supply AC220V ± 10%, 50Hz.
Ambient Temperature - 10 ℃~+35 ℃ Relative Humidity ≤ 85%
Power Consumption Of The Whole Machine No More Than 2000W Temperature Control Range Room Temperature+100 ℃ ± 0.1 ℃
Air Flow Meter Flow Range 30~300ml/min
High Light

ASTM D1384 Corrosion Test Device


Engine Coolant Corrosion Test Device

Leave a Message
Product Description

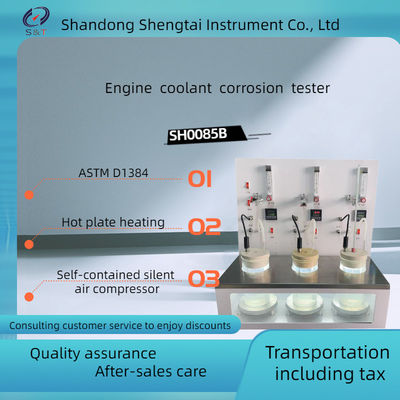

ASTM D1384 Engine Coolant Corrosion Test Device 3-Hole, Electric Plate Heating Method With Silent Air Compressor

SH0085B antifreeze corrosion tester is designed and manufactured in accordance with the requirements of the petrochemical industry standard of the People's Republic of China, SH/T0085 Engine Coolant Corrosion Test Method. It is suitable for measuring the corrosion degree of high boiling point and low boiling point engine coolant and its concentrate on typical metal test pieces according to the test method of SH/T0085 ASTMD1384 standard. After the upgrade of SH0085 corrosion tester, the instrument is equipped with a silent air compressor, There is no need to manually equip the air source.


The SH0085B engine coolant corrosion tester is upgraded from the original one. It can observe the experimental state while doing the experiment. At the same time, the heating method uses an electric heating plate to heat without adding medium.


Main technical specifications and parameters


Heating method

electric plate heating



made of heat-resistant glass. High-type mouthless 1000ml, conforming to SH/T0085 standard


Gas diffusion pipe

the diffusion head is made of sand-cored glass, and the pipe diameter is made of heat-resistant glass.


Reflux condensate pipe

water-cooled type, with the length of sleeve not less than 400mm.


Temperature control range

room temperature+100 ℃ ± 0.1 ℃


Air flow meter: flow range




timing range 0~9999 h


Number of test holes 3
Working power supply

AC220V ± 10%, 50Hz.


Ambient temperature - 10 ℃~+35 ℃.
Relative humidity ≤ 85%.
Power consumption of the whole machine no more than 2000W.

Instrument size: 550 * 370 * 480mm Weight: 28kg


Package size: 620 * 420 * 450mm Weight: 34kg



Test piece size and material:


SH/T0085 Engine Coolant Corrosion Test Method (Glassware Method) Group Test Piece


50x20x2mm (20 # steel, brass sheet, red copper sheet)


50x25x3.5mm (cast aluminum sheet, solder sheet, cast iron sheet)


Single center hole: φ 7.0mm


Supporting products:


Brass washer, insulating washer, steel washer, insulating sleeve, brass bracket


Instrument size: length 35 * width 37 * height 48cm Weight: 28kg


Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Power cord 1 piece
3 Corrosion test piece 3 group
4 Condenser tube 3 group
5 Gas diffusion tube 3 group
6 Fuse tube 1 piece
7 Instruction 1 Copy
8 Certificate warranty card 1 copy

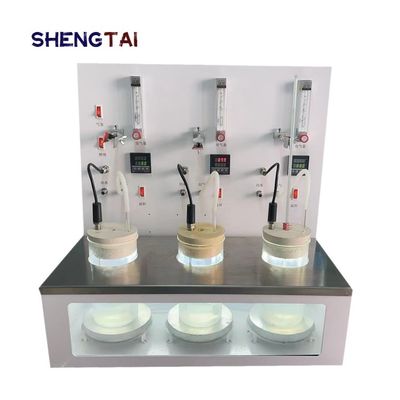

ASTM D1384 Engine Coolant Corrosion Test Device 3 Hole Electric Plate Heating Method 0ASTM D1384 Engine Coolant Corrosion Test Device 3 Hole Electric Plate Heating Method 1
