ASTM D1384 Engine Coolant Corrosion Tester Equipped With Silent Air Compressor

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH0085
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH0085 Power AC220V±10% 50Hz
The Power Consumption Of The Whole Machine Not More Than 2000W Temperature Control Range Room Temperature ~+100℃ ±0.1℃
Constant Temperature Precision ±0.2℃ Ambient Temperature -10℃~+35℃
Relative Humidity ≤85%. Air Flow Meter Flow Range Of 30~300ml/min
Timer Timing Range 0~ 9999h
High Light

ASTM D1384 corrosion tester


Engine coolant corrosion tester


Glassware Method corrosion tester

Leave a Message
Product Description

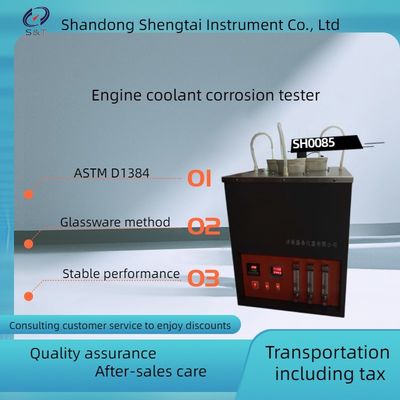

ASTM D1384 Engine Coolant Corrosion Tester Equipped With Silent Air Compressor (Glassware Method)

SH0085 antifreeze corrosion instrument is according to the law of the People's Republic of China petroleum and chemical industry standard SH/T0085 the engine cooling fluid corrosion measurement the requirements of the design and manufacture, suitable for according to the SH/T0085 standard measurement method, the determination of high boiling point and low boiling point engine coolant and concentrate on the extent of the typical specimens of metal corrosion, SH0085 corrosion tester upgraded instruments bring silent air compressor, no need to manually equipped with air.

Main technical specifications

  1. Heating method: electric heating tube;
  2. Timing: display timer;
  3. Total power: 2.5kW;
  4. Flow rate(adjusted by flow meter): 100ml/min+/-10ml/min;
  5. Sand core glass gas diffusion head
  6. Can operate three groups of experiment at the same time
  7. Baking cup: made of heat-resistant glass.
  8. High-type nozzle-less 1000ml, in line with the requirements of SH/T0085 standard.
  9. gas diffusion tube: the diffusion head is made of sand core glass, and the pipe diameter is made of heat-resistant glass.
  10. reflux condensing pipe: water cooling type, sleeve length is not less than 400mm.

Technical parameters

No. Tech Indicator Description
1 Power AC220V±10% 50Hz
2 the power consumption of the whole machine

not more than 2000W.


3 Temperature Control Range room temperature ~+100℃ ±0.1℃
4 Constant Temperature Precision ±0.2℃
5 Ambient temperature -10℃~+35℃.
6 Relative humidity ≤85%.
7 air flow meter flow range of 30~300ml/min
8 timer timing range 0~ 9999h
9 Package size: 430 * 420 * 450mm Weight: 34kg
10 Instrument size: 350 * 370 * 480mm Weight: 28kg


Sample size and material:

  1. SH/T0085 engine coolant corrosion determination method (glassware method) set of test plates AST,M D1384
  2. 50x20x2mm (20# steel, brass sheet, copper sheet)
  3. 50x25x3.5mm (cast aluminum sheet, solder sheet, cast iron sheet)
  4. Single center hole: φ7.0mm
  5. Supporting products:
  6. Brass washers, Insulation washers, Steel washers, Insulation bushing, Brass bracket
  7. Instrument size: 350 * 370 * 480mm Weight: 28kg

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 power cord 1 piece
3 Corrosion test piece 3 set
4 Condenser tube 3 set
5 Gas diffusion tube 3 set
6 Fuse tube 1 piece
7 instruction manual 1 copy
8 Certificate warranty card 1 copy
