Dropping Point Tester Oil Bath For Lubricating Grease ASTM D566

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SD4929A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
MODEL SD-4929A Power Supply AC 220 V±10%, 50 Hz
Metal Bath Heating Power 800W Relative Humidity ≤85%
Mixing Motor Speed 120r/min Stirring Motor Rotating Speed 60 RPM
High Light

Dropping Point Tester Oil Bath


Lubricating Grease Dropping Point Tester


ASTM D566 Dropping Point Tester

Leave a Message
Product Description

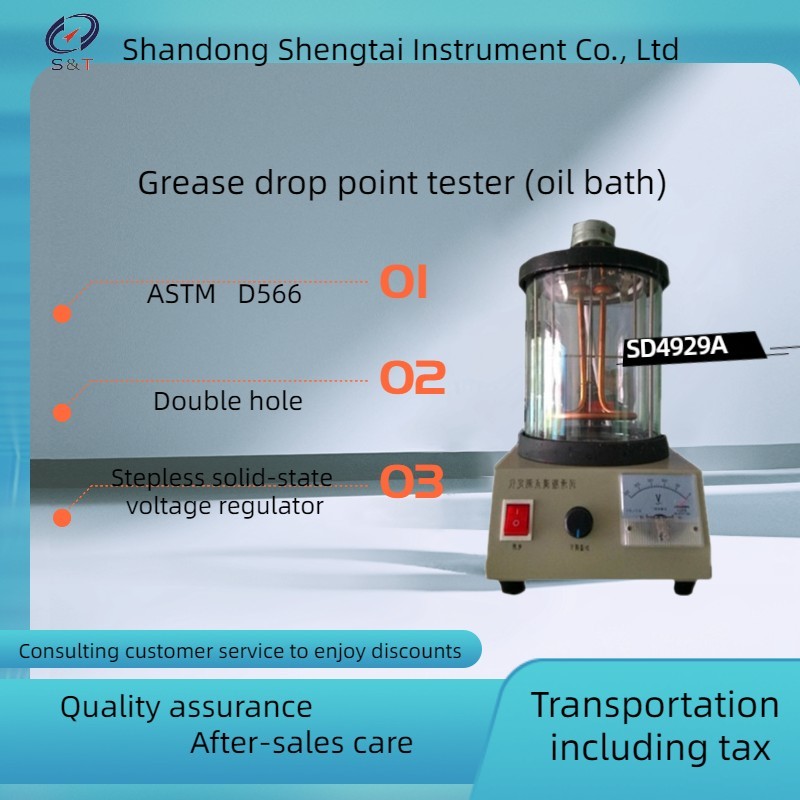

Dropping Point Tester (Oil Bath) For Lubricating Grease ASTM D566

SD4929A grease drop point tester is designed and manufactured according to the requirements of the People's Republic of China standard GB/T4929 "Grease drop point determination method". It is suitable for testing the drop point of grease according to the GB/T4929 standard.

Purpose: This instrument is suitable for measuring the drop point of grease according to GB/T4929, ISO2176,

Technical performance:

1. Power supply: AC 220 V±10%, 50 Hz;
Grease cup: Made of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm. The height of the cup is about 12 mm.
Test tube: A tube made of heat-resistant glass with rim. Its inner diameter is 11.1 mm to 12.7 mm. There are three indentations at about 19 mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup.
Thermometer: room temperature ~300 ºC, scale value is 1 ºC. The measuring range of the instrument is to 270 ℃
Cylinder: beaker with volume of 600ml
Stirring motor: Rotating speed 60 RPM
Metal bath heating power 800W
Relative humidity: ≤85%
Mixing motor: speed 120r/min
Temperature regulation mode: temperature regulation by stepless solid state voltage regulator
Dimension: 300mm×3600mm×500mm weight: 10kg

Provided by the customer: heating medium (silicone oil)


Packing List

No Name Quantity
1 Lubricating grease drop point tester 1
2 Grease cup 2
3 vitro 2
4 Rubber plug 2
5 Guide ring 2
6 Thermometer (-5 to 300 ° C, index value 1 ° C,) 2
7 Metal bar 1
8 instructions 1
9 Certificate of conformity warranty card 1
















Dropping Point Tester Oil Bath For Lubricating Grease ASTM D566 0Dropping Point Tester Oil Bath For Lubricating Grease ASTM D566 1
