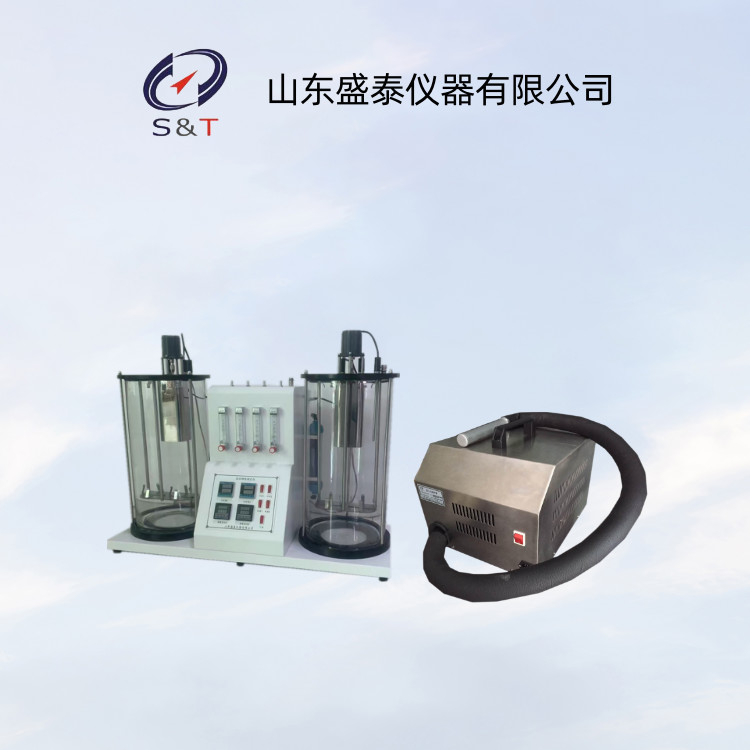

ASTM D892 Foam Tester For Measuring Foaming Tendency / Stabilityof Lubricating Oil

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH126
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH126 POWER AC220V±10% 50Hz
Test Cylinder Specification 1000mL Time System 0~99.99 Hour
Cooling Device Power 200W Air Source Self-contained Air Source, 3L/min
Highlight

ASTM D892 Foam Tester

,

Lubricating Oil Foam Tester

,

AC220V Foam Tester

Leave a Message
Product Description

ASTM D892 Foam Tester For Measuring Foaming Tendency And Stabilityof Lubricating Oil Under The Standard Test Method



SH126 lubricating oil foam tester conforms to GB/T12579,ASTMD892 method requirements. It is suitable for testing the foam tendency and foam stability of lubricating oil under the standard conditions .Foam Testing Equipment Electronic for Lubricating Oils ASTM D892 & GB/T12579 Bubble Tester

The instrument adopts digital PID temperature automatic control system, high temperature control accuracy; Display using high-definition color touch display, man-machine dialogue intuitive, convenient;

ASTM D892 Foam Tester For Measuring Foaming Tendency / Stabilityof Lubricating Oil 0

ASTM D892 Lubricating Oil Foam Characterization Analyzer

Foaming Characteristics Test Apparatus for The Foaming Characteristics of Lubricating Oils

ASTM D892 Lube Oil Foaming Characteristic Tester

ASTM D892 Foam Tester for Measuring Lubricant's Foaming Tendency and Stability

Automatic timing, air supply, simple test operation, practical.

SH126 Foam Tester is designed and manufactured according to the national standard GB/T12579, which is used to determine the tendency and stability of foam formation of oil products such as fuel oil, lubricating oil, gear oil and hydraulic oil.

Automatic temperature control, automatic timing, air source and gas flow centralized control, reasonable design, beautiful.

ASTM D892 Foam Tester For Measuring Foaming Tendency / Stabilityof Lubricating Oil 1

No. Tech Indicator Description
1 Power

AC220V±10% 50Hz

(Can be changed to your country request)

2 Test cylinder specification: 1000mL (special cylinder)
3 Temperature of Baths

The 24℃±0.5℃ of Low Temperature

The93.℃±0.5℃of High Temperature

4 Accuracy ±0.5℃
5 Stir Motor 25W
6 Temperature Range 0 ~ 99.9℃
7 Time System 0~99.99 Hour
8 Cooling Device Power 200W
9 Flow Meter 16 ~ 160ml/min
  Gas diffusion head: 3000~6000ml/min, at 2.45Kpa
  Air source: self-contained air source, 3L/min
Instrument size: 680 * 380 * 550mm Weight: 35kg
10 Characteristics

Digital Temperature Display

Intelligent Temperature Control

Efficient Cooling System

High Temperature Bath

Low Temperature Bath

With Gas Pump

Easy to Operation



ASTM D892 Foam Tester For Measuring Foaming Tendency / Stabilityof Lubricating Oil 2

Technical parameters:

★ Applicable standard: GB/T12579 ASTMD892

Timing mode: automatic timing, accuracy ±1S

★ Temperature control range: 0℃ ~ 99.9℃

Temperature control accuracy: ±0.5℃

★ Temperature control: low temperature bath: 24±0.5℃ high temperature bath: 93.5±0.5℃

★ Flow control: 16 ~ 160ml/min float flow meter, adjustable

Air source: with air source, 3L/min

★ Gas diffuser: 3000 ~ 6000 ml /min, under 2.45 kPa

Timing device: 0 ~ 99.99 hours

Specifications of test cylinder: 1000mL (special cylinder)

Instrument size: 680 * 380 * 550mm Weight: 35kg



Packing list

S/N Name Quantity Unit Remarks
  1.
Host 1 set
  1.
Portable refrigeration device 1 set
  1.
Graduated cylinder 4 piece
  1.
Foam head 4 piece
  1.
Graduated cylinder plug 4 piece
  1.
Rubber tube 2 meter
  1.
thermometer 1 piece
  1.
power cord 1 piece
  1.
Fuse tube 1 piece 10A
  1.
Instructions 1 copy
  1.

Packing list



1 copy
  1.
Certificate warranty card 1 copy

 ASTM D892 Foam Tester For Measuring Foaming Tendency / Stabilityof Lubricating Oil 3

ASTM D892 Foam Tester For Measuring Foaming Tendency / Stabilityof Lubricating Oil 4

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

ASTM D892 Foam Tester For Measuring Foaming Tendency / Stabilityof Lubricating Oil 5
