xMODEL | SH0048 | Standard Capillary Size | 0.025, 0.05, 0.1 Cm |
---|---|---|---|
The Maximum Strength Of Spring Group | 60Kg/cm2 | Record Paper Size | 110×300mm |
High Light | SH0048 Viscosity Tester,Lubricating Grease Viscosity Tester |

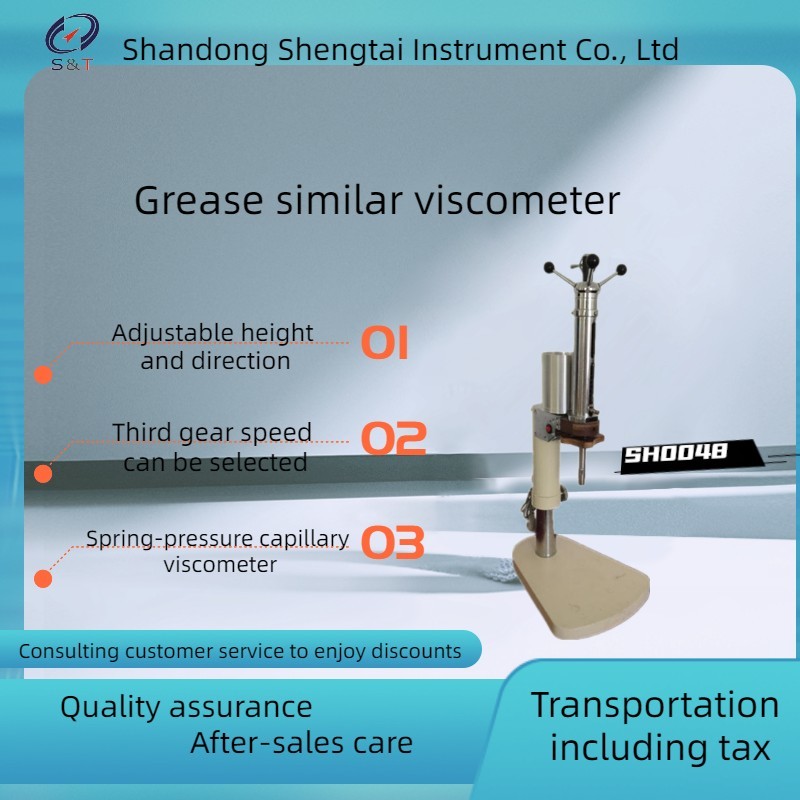

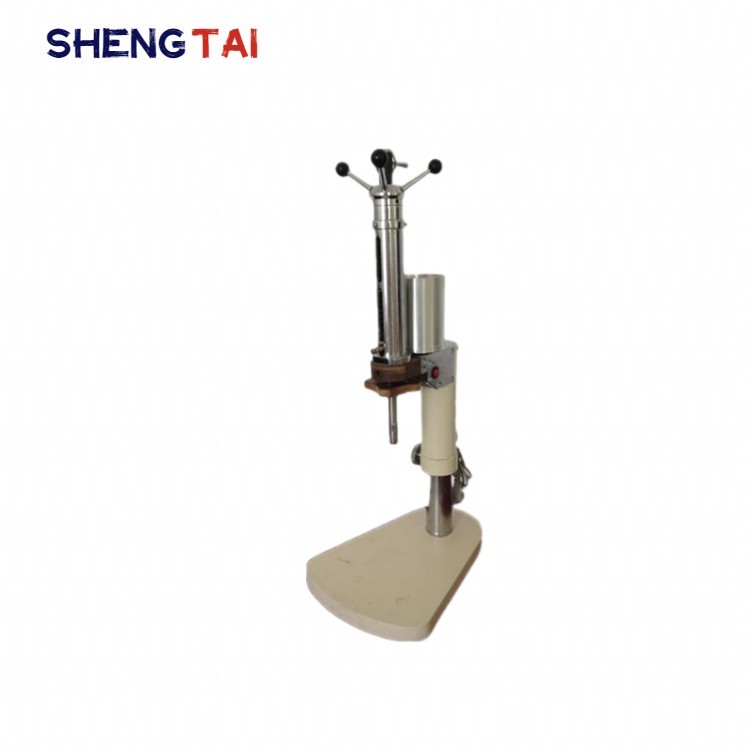

Г О С Т 7163 Lubricating Grease Similar Viscosity Tester Spring Pressure Capillary Viscometer
SH0048 Grease similar viscosimeter is used to determine the similar viscosity of grease according to SH/T0048-91 "similar viscosity of grease measurement method".Instrument equivalent Г О С Т 7163 standard for similar grease viscometry.
ASTM D1092 Measuring Apparent Viscosity of Lubricating Greases
Performance characteristics:
Adopt spring pressure type capillary viscometer
The height and direction of the instrument can be adjusted arbitrarily on the column
Recording cylinder can have three speeds to choose from
4 the whole instrument structure is compact and complete
Technical parameters:
1 standard capillary size:0.025, 0.05, 0.1 cm
2. The maximum strength of spring group: 60Kg/cm2
3 Record paper size: 110×300mm
The speed and linear speed of recording paper are compared
Instrument size: 320x420x850 mm; weight: 18 kg
File number | Speed (RPM) | Linear velocity (cm/s) |
1 | 0.0111 | 0.0054 |
2 | 0.195 | 0.094 |
3 | 3.42 | 1.65 |
SH0048-40 Similar viscosity matching cryogenic device
Application and scope of application
SH0048-40 similar viscosity low temperature matching device is a high precision constant temperature source with refrigeration and heating. It can be used as a constant temperature source for constant temperature experiment in the tank inside the machine, or connected with other equipment through hoses.
Instrument performance characteristics
1, Fully enclosed compressor refrigeration, refrigeration system with overheating, over current multiple protection device
2. The circulating pump can take the constant temperature liquid out of the tank to establish the second constant temperature field
3. The cold liquid in the tank can be drawn out, the experimental container outside the cooling machine can also be directly carried out low temperature and constant temperature experiments in the tank
4, Adopt PID automatic control system, LCD temperature digital display
Main technical specifications and parameters
working power supply | AC220V±10%;50 hz |
cold tank temperature control | +50℃ ~ -40℃ (custom +50℃ ~ -70℃) |
Refrigeration system | new refrigerating compressor (double compressor refrigeration). |
Ambient temperature |
≤30℃.
|
relative humidity | ≤85% |
power consumption | no more than 1000W |
Instrument size: 450 * 480 * 580mm Weight: 28kg | |
You need to bring your own consumables: alcohol.
|
Packing list
S/N | Name | Unit | Quantity | Remarks |
1 | Similar viscosity tester | set | 1 | |
2 | capillary | piece | 3 | |
3 | Sample tube | piece | 2 | (one of which has been installed in the viscometer) |
4 | Grease cup | piece | 1 | |
5 | shim | piece | 4 | |
6 | instruction manual | copy | 1 | |
7 | Certificate warranty card | copy | 1 |
