Antifreeze And Engine Coolant Freezing Point Analyzer Freezing -54℃ ～ 2℃ ASTM D2386

  • Antifreeze And Engine Coolant Freezing Point Analyzer Freezing -54℃ ～ 2℃ ASTM D2386
  • Antifreeze And Engine Coolant Freezing Point Analyzer Freezing -54℃ ～ 2℃ ASTM D2386
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd
Certification SH/T 0090 ASTM D1177 GB/T 2430 ASTM D2386
Model Number SH128
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Cold Work Tank Double-layer Vacuum Glass Bath Tank Freezing Range -54℃ ～ 2℃
Cold Bath Temp Control -70℃ ～ 30℃, (Customizable +20℃ ～ -80℃) Temp Control Accuracy ±0.1℃
Operating Power Supply AC220V ±10% 50Hz Ambient Temp ≤30℃
Highlight

Antifreeze freezing point analyzer

,

Engine coolant freezing tester

,

ASTM D2386 antifreeze analyzer
Leave a Message
Product Description

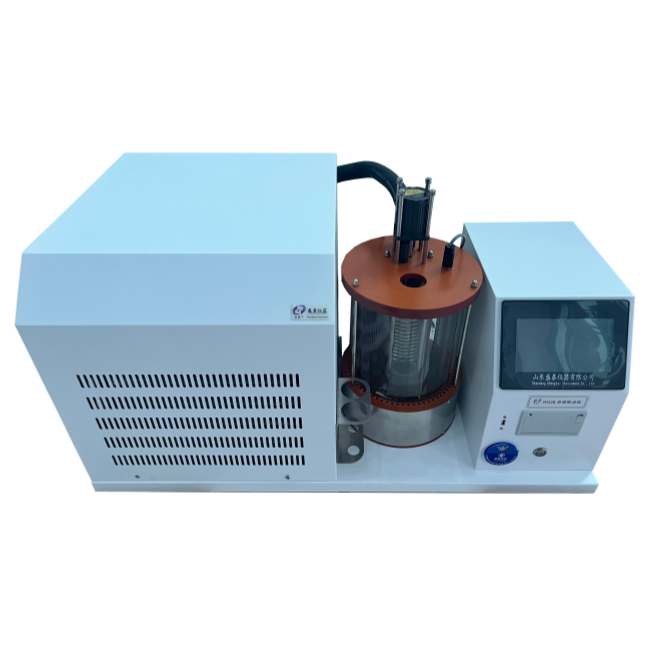

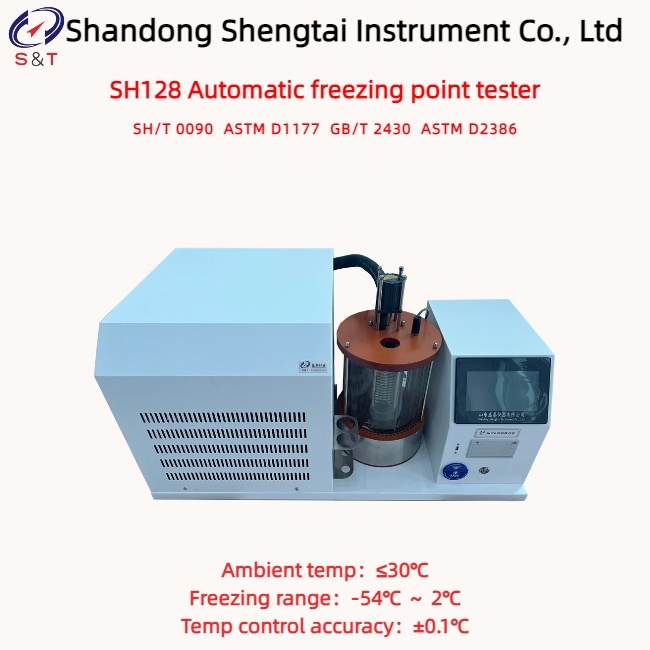

SH128 Automatic freezing point tester

Standard: SH/T 0090 ASTM D1177 GB/T 2430 ASTM D2386

SH128 Automatic Freezing Point Determinator complies with the national petrochemical industry standard SH/T 0090-91 (2000) "Freezing Point Determination Method for Engine Coolant" as well as ASTM D1177 and GB/T 2430 "Freezing Point Determination Method for Aviation Fuels." It is suitable for measuring the freezing points of engine coolant and its concentrates, and can test the freezing points of chemical and petrochemical products such as antifreeze and deicing agents.

Instrument Features

● Designed with an embedded system, featuring imported PT100 temperature sensors for automatic detection throughout the testing process;

● Color touch screen;

● The test results can be stored;

● Historical data can be viewed;

● The results are printed on the instrument, with mechanical automatic stirring. The experimental data can be exported via a USB drive and stored in a computer for repeated comparative testing.

Technical parameters

Cold Work Tank Double-layer Vacuum Glass Bath Tank
Freezing range -54℃ ～ 2℃
Cold Bath Temp Control

-70℃ ～ 30℃,

(Customizable +20℃ ～ -80℃)
Temp control accuracy ±0.1℃
Bath solution stirring The stirring motor operates automatically with a power of 6W and a speed of 1200r/min
Refrigeration system Imported cascade refrigeration compressor
Sample stirring Synchronous geared motor, 1 revolution per second
Operating power supply AC220V ±10% 50Hz
Ambient temp ≤30℃
Relative humidity ≤85%
Total power consumption approximately 1500W
Instrument dimensions 950 * 510 * 520mm
Weight 75kg
Packaging dimensions 1060*620*610mm
Packaging weight 86kg (wooden crate)

Antifreeze And Engine Coolant Freezing Point Analyzer Freezing -54℃ ～ 2℃ ASTM D2386 0

● Result Output: It can also be equipped with a USB output function to transfer data to a PC for long-term storage

● Output format: The results on the USB drive should be in CSV or Excel format.

● The automatic touchscreen displays temperature and time curves, allowing real-time observation of temperature trends

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. Updates to the instrument may involve minor changes, and no separate notice will be provided.

Note: When measuring kerosene according to GB/T 2430, the result of the freezing point test is the crystallization freezing point.



Packing list

S/N Name Unit Quantity Remarks
1 Host Set 1
2 Test bottle rubber stopper Piece 1
3 Freezing test tube Piece 1
4 Temperature sensor Piece 1
5 Power cable Piece 1
6 Instructions Copy 1
7 Packing list Copy 1
8 Certificate warranty card Copy 1



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Antifreeze And Engine Coolant Freezing Point Analyzer Freezing -54℃ ～ 2℃ ASTM D2386 1
