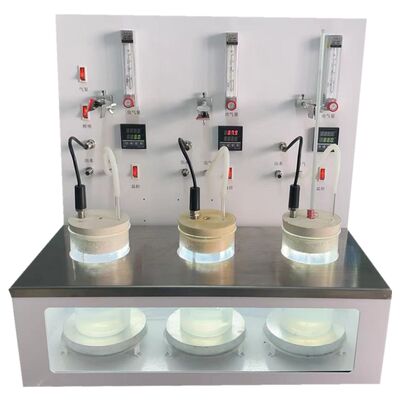

3 Holes Engine Coolant Corrosion Tester RT ～ +100℃ Electric Heating Plate Heating ASTM D1384

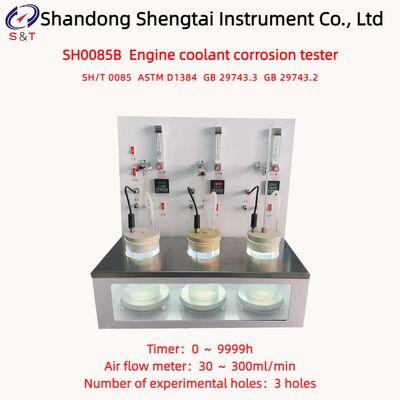

SH0085B Engine coolant corrosion tester

The SH0085B antifreeze corrosion tester is designed and manufactured according to the requirements of the petrochemical industry standard SH/T 0085 "Determination of Corrosion of Engine Coolants" in the People's Republic of China. It is suitable for measuring the degree of corrosion of typical metal test pieces by high boiling point and low boiling point engine coolants and their concentrates according to the measurement methods of SH/T 0085 and ASTM D1384 standards. After upgrading, the SH0085 anti-corrosion tester comes with a silent air compressor, eliminating the need for manual air supply.

The SH0085B engine coolant corrosion tester is an upgraded version of the original one, which can observe the experimental status while conducting experiments. At the same time, the heating method used is electric heating plate heating, without the need for additional medium.

Compliant with standards: SH/T 0085, GB 29743.3-2025 Part 3 Fuel Cell Vehicle Coolant, GB 29743.2-2025 Part 2 Motor Vehicle Coolant

Main technical specifications and parameters

● Equipped with a silent air compressor, there is no need to manually equip the air source.

Test piece size and material:

● SH/T 0085 Engine Coolant Corrosion Determination Method (Glassware Method) Test Piece

● 50 * 25 * 2mm (20 # steel, brass sheet, purple copper sheet)

● 50 * 25 * 3.5mm (cast aluminum sheet, solder sheet, cast iron sheet)

● Single center hole: diameter 7.0mm

Supporting products:

● Brass gaskets, insulation gaskets, steel gaskets, insulation sleeves, brass brackets

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee

Packing List
