3 Holes Engine Coolant Corrosiveness Tester RT ～ +100℃ Timing 0 ～ 9999h ASTM D1384

  • 3 Holes Engine Coolant Corrosiveness Tester RT ～ +100℃ Timing 0 ～ 9999h ASTM D1384
  • 3 Holes Engine Coolant Corrosiveness Tester RT ～ +100℃ Timing 0 ～ 9999h ASTM D1384
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd.
Certification SH/T 0085 ASTM D1384
Model Number SH0085
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Number Of Detection Holes 3 Holes Temp Control Range RT ～ +100℃± 0.1℃
Air Flow Meter 30 ～ 300ml/min Timer 0 ～ 9999h
Relative Humidity ≤ 85% Environmental Temp -10℃ ～ +35℃
Highlight

engine coolant corrosiveness tester ASTM D1384

,

3 holes antifreeze testing instrument

,

coolant tester RT to +100℃
Leave a Message
Product Description

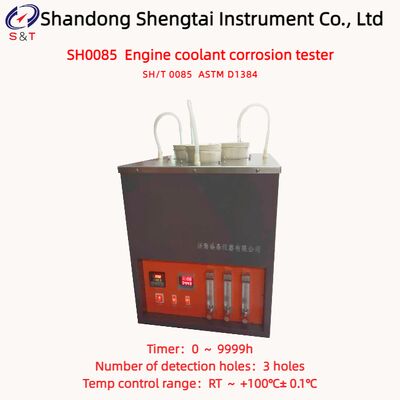

SH0085 Engine coolant corrosion tester

The SH0085 antifreeze corrosion tester is designed and manufactured according to the requirements of the petrochemical industry standard SH/T 0085 "Determination of Corrosion of Engine Coolants" in the People's Republic of China. It is suitable for measuring the degree of corrosion of typical metal test pieces by high boiling point and low boiling point engine coolants and their concentrates according to the measurement methods of SH/T 0085 and ASTM D1384 standards. After upgrading, the SH0085 anti-corrosion tester comes with a silent air compressor, eliminating the need for manual air supply.

Determination of Corrosion of High Boiling Point and Low Boiling Point Engine Coolants and Their Concentrates on Typical Metal Test Pieces

Main technical specifications

Number of detection holes 3 holes
Beaker heat-resistant glass, High end mouthless 1000ml, in compliance with SH/T0085 standard
Gas diffusion tube The diffusion head is made of sand core glass, and the diameter is made of heat-resistant glass
Reflux condenser tube water-cooled type, with a sleeve length of not less than 400mm
Equipped with a silent air compressor, there is no need to manually equip the air source.
Temp control range RT ～ +100℃± 0.1℃
Air flow meter 30 ～ 300ml/min
Timer 0 ～ 9999h
Environmental temp -10℃ ～ +35℃
Relative humidity ≤ 85%
Whole power not exceeding 2000W
Working power supply AC220V ± 10% 50Hz
Instrument size 350 * 370 * 480mm L * W * H
Instrument weight 28kg
Packaging size 430 * 420 * 450mm L * W * H
Packaging weight 34kg

3 Holes Engine Coolant Corrosiveness Tester RT ～ +100℃ Timing 0 ～ 9999h ASTM D1384 0

Test piece size and material:

● SH/T0085 Engine Coolant Corrosion Determination Method (Glassware Method) Test Piece

● 50 * 25 * 2mm (20 # steel, brass sheet, purple copper sheet)

● 50 * 25 * 3.5mm (cast aluminum sheet, solder sheet, cast iron sheet)

● Single center hole: diameter 7.0mm

Supporting products:

● Brass gaskets, insulation gaskets, steel gaskets, insulation sleeves, brass brackets

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



Packing List

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 power cord 1 Piece
3 Corrosion test piece 3 Set
4 Condenser tube 3 Set
5 Gas diffusion tube 3 Set
6 Fuse tube 1 Piece
7 instruction manual 1 Copy
8 Certificate warranty card 1 Copy

3 Holes Engine Coolant Corrosiveness Tester RT ～ +100℃ Timing 0 ～ 9999h ASTM D1384 1
