Lubricant Similarity Viscometer Intensity 60Kg/Cm² Three Speed Rotation ГОСТ 7163

  • Lubricant Similarity Viscometer Intensity 60Kg/Cm² Three Speed Rotation ГОСТ 7163
  • Lubricant Similarity Viscometer Intensity 60Kg/Cm² Three Speed Rotation ГОСТ 7163
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd.
Certification SH/T 0048 ГОСТ 7163
Model Number SH0048
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Standard Capillary Sizes 0.025, 0.05, 0.1cm Maximum Strength Of Spring Assembly 60Kg/cm²
Record Paper Size 110 * 300mm Instrument Size 280 * 380 * 800mm
Packaging Size 675 * 375 * 260mm Packaging Weight 24.4kg Cardboard Box
Highlight

Lubricant viscometer 60Kg/Cm² intensity

,

Three speed rotation viscometer ГОСТ 7163

,

Lubricating oil testing instrument with warranty
Leave a Message
Product Description

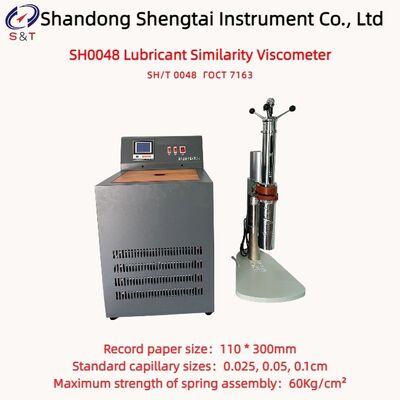

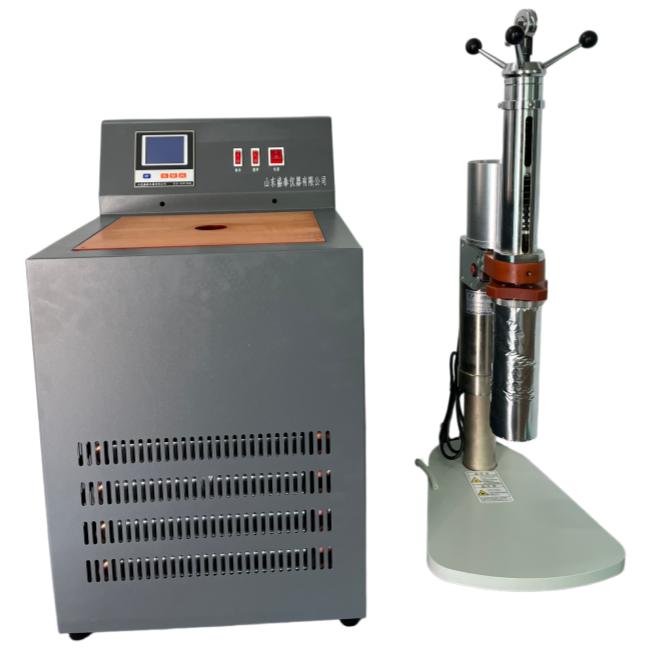

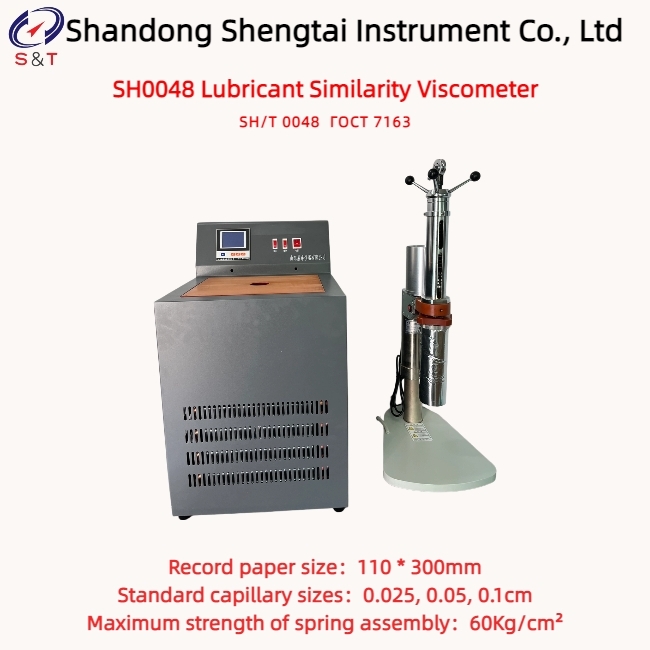

SH0048 Lubricant Similarity Viscometer

Standard: SH/T 0048 ГОСТ 7163

The SH0048 grease similarity viscosity meter is used to determine the similar viscosity of lubricating grease according to SH/T0048-91 "Method for Determining Similar Viscosity of Lubricating Greases". Instrument equivalent to the standard of ГОСТ 7163 "Determination of Similar Viscosity of Lubricating Greases".

Similar viscosity refers to the viscosity measured at a certain temperature and shear rate. The similar viscosity of lubricating grease increases and decreases with the increase and decrease of shear rate.

The low-temperature viscosity of lubricating grease is expressed as low-temperature similar viscosity.

Instrument features:

● Adopting a spring pressure capillary viscometer

● The instrument can be adjusted in height and direction on the column at will

● The recording cylinder can have three speeds to choose from

Compare the rotational speed and linear speed of each gear on the recording paper:

Number of files Speed (RPM) Linear velocity (cm/s)
1 0.0111 0.0054
2 0.195 0.094
3 3.42 1.65

Lubricant Similarity Viscometer Intensity 60Kg/Cm² Three Speed Rotation ГОСТ 7163 0

Technical Specifications

Standard capillary sizes 0.025, 0.05, 0.1cm
Maximum strength of spring assembly 60Kg/cm²
Record paper size 110 * 300mm
Instrument size 280 * 380 * 800mm
Packaging size 675 * 375 * 260mm
Packaging weight 24.4kg cardboard box
Packaging size of low-temp refrigeration cycle device 550 * 450 * 685mm
Low temp refrigeration cycle unit packaging weight 50.6kg wooden crate

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



SH0048-40 Similar viscosity matching cryogenic device

Application and scope of application

SH0048-40 similar viscosity low temperature matching device is a high precision constant temperature source with refrigeration and heating. It can be used as a constant temperature source for constant temperature experiment in the tank inside the machine, or connected with other equipment through hoses.

Instrument performance characteristics

● Fully enclosed compressor refrigeration, refrigeration system with overheating, over current multiple protection device

● The circulating pump can take the constant temperature liquid out of the tank to establish the second constant temperature field

● The cold liquid in the tank can be drawn out, the experimental container outside the cooling machine can also be directly carried out low temperature and constant temperature experiments in the tank

● Adopt PID automatic control system, LCD temperature digital display

Main technical specifications and parameters

Working power supply AC220V±10% 50 hz
Cold tank temp control +50℃ ~ -40℃ (custom +50℃ ~ -70℃)
Refrigeration system new refrigerating compressor (double compressor refrigeration).
Ambient temperature ≤30℃
Relative humidity ≤85%
Power consumption no more than 1000W
Instrument size 450 * 480 * 580mm
Weight 28kg
You need to bring your own consumables: alcohol.

Lubricant Similarity Viscometer Intensity 60Kg/Cm² Three Speed Rotation ГОСТ 7163 1



Packing list

S/N Name Unit Quantity Remarks
1 Similar viscosity tester Set 1
2 capillary Piece 3
3 Sample tube Piece 2 (one of which has been installed in the viscometer)
4 Grease cup Piece 1
5 Shim Piece 4
6 Instruction manual Copy 1
7 Certificate warranty card Copy 1
