Lubricating Oil Wide Temperature Range Evaporation Loss Tester Metal Bath ASTM D2595

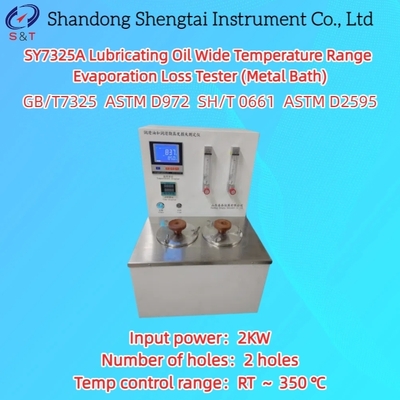

SY7325A Lubricating Oil Wide Temperature Range Evaporation Loss Tester Metal Bath)

The SY7325A Lubricating Oil and Lubricating Grease Evaporation Loss Tester is designed and manufactured according to GB/T7325 "Lubricating Oil and Lubricating Grease Evaporation Loss Determination Method", and the evaporation loss tester needs to meet SH/T 0661 "Lubricating Grease Wide Temperature Range Evaporation Loss Determination Method". Suitable for measuring the evaporation loss of lubricating oil or grease at any temperature between 93 and 316 ℃.

Product Features:

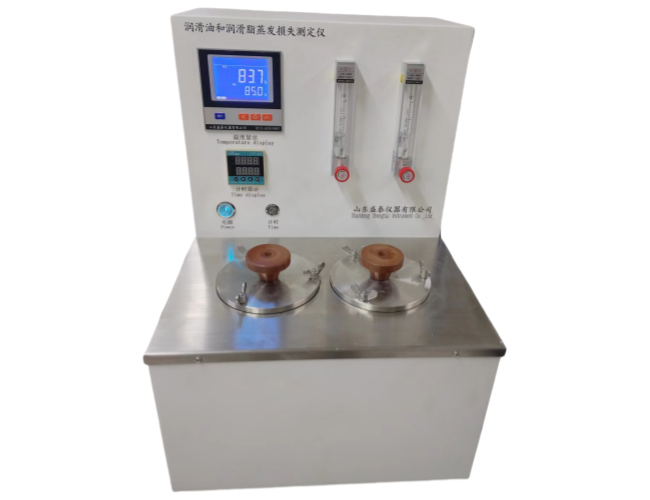

It consists of metal bath, temperature control meter, air pump, flow meter, temperature control circuit and other parts. Use an air pump and flow meter to introduce air into the sample in the constant temperature bath evaporation test device at a quantitative flow rate. After a specified time, measure the evaporation loss of the sample.

Technical Indicators:

● Input voltage: AC220V ± 10% 50Hz

● Input power: 2KW

● Number of holes: 2 holes

● Display accuracy: ± 0.1 ℃

● Heating method: metal bath

● Temperature control range: Room temperature ～ 350 ℃

● Timing device: 0-100 hours

● Mixing motor: 25W

● Size: 350 * 400 * 500 mm

● Instrument weight: 24kg

● Packaging size: 475 * 425 * 580 mm

● Packaging weight: 29kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing List
