Lubricating Grease Pressure Separator t=15 ℃ - 25 ℃ Four digit machine GB/T392

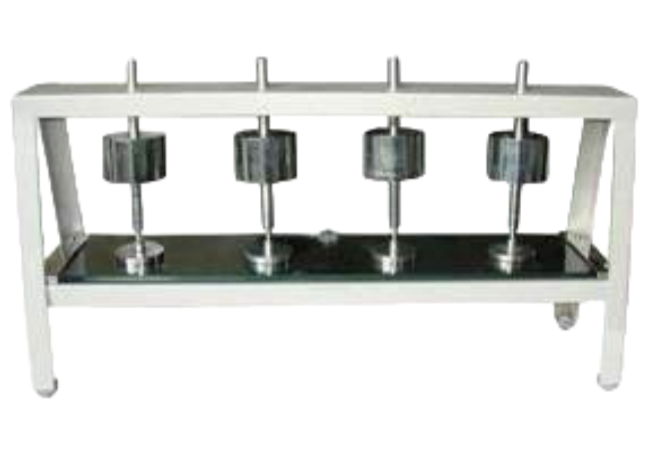

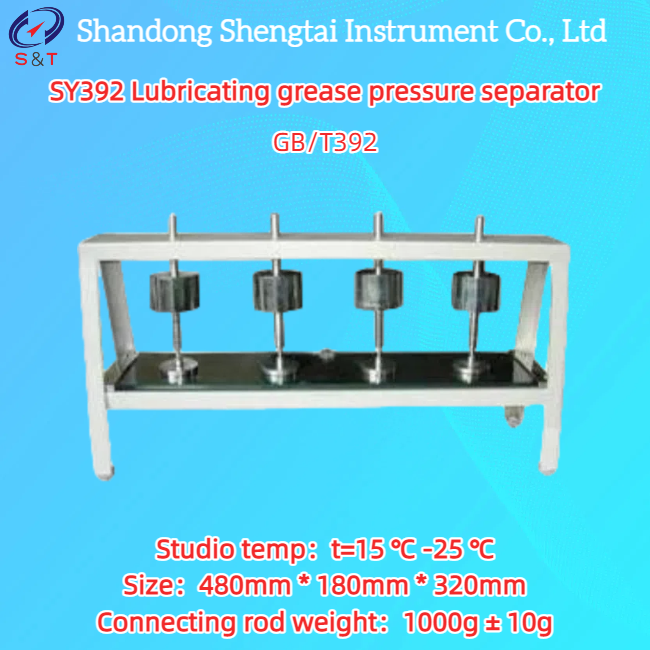

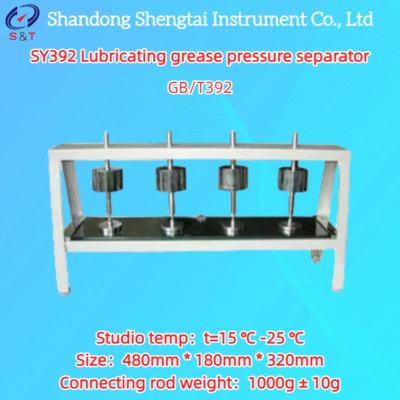

SY392 Lubricating grease pressure separator

The SY392 grease pressure separator is designed and manufactured according to the standard GB/T392. This instrument uses a pressurized oil separator to press oil out of the lubricating grease, and then measures the amount of oil pressed out. Require an ambient temperature of 15-25 ℃. Four position machine, working environment temperature t=15-25 ℃, weight 1000g ± 10g.

Technical Specifications

● Connecting rod: After the piston and heavy hammer are processed, plus a diameter of 8 steel ball, the total weight is strictly weighed and within the standard range (1000g ± 10g)

● The temperature requirement for the studio is t=15 ℃ -25 ℃

● Each unit has 4 connecting rods and a heavy hammer device.

● Size and weight: 480mm * 180mm * 320mm

● Weight: 15kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
