Lubricating Grease Mechanical Impurity Content Analyzer Microscope Method SH/T 0336

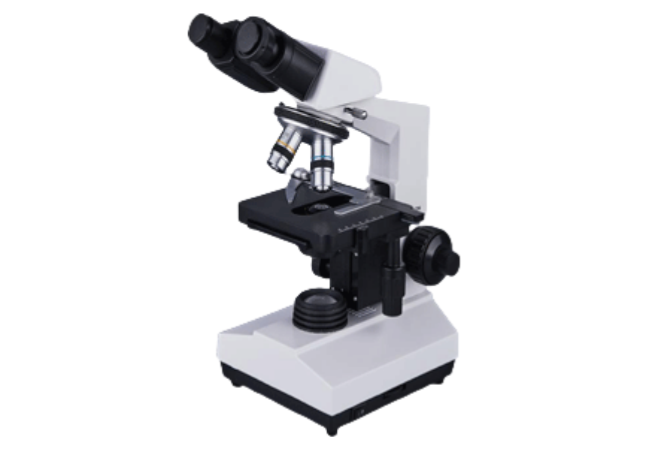

SY0336 Lubricating grease mechanical impurity content analyzer  microscope method

The SY0336 mechanical impurity analyzer for lubricating grease is designed and manufactured according to the national industry standard SH/T 0336-1994 "Method for determination of impurity content in lubricating grease (microscopic method)". It is an environmentally friendly and scientific detection method for detecting mechanical impurity content in lubricating grease.

Technical Indicators:

● Eyepiece category: Binocular

● Scale division of eyepiece micrometer: 0.01mm

● Magnification factor: >100x

● Observation head: hinged 30 degree tilt, capable of 360 ° rotation

● Coarse and fine adjustment focusing range: 30mm

● Micro grid value: 2um coarse micro coaxial focusing, adjustable coarse tension, with locking and limit

● Standard hemocytometer: standard configuration

● Spotlight: 1.25NA Abbe spotlight, variable light bar with color filter (up and down lifting)

● Lighting: 220V Kohler lighting, adjustable brightness, halogen tungsten bulb 6V20W

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
