Lubricating Grease Low Temperature Torque Tester Dual Compressor Refrigeration SH/T0338

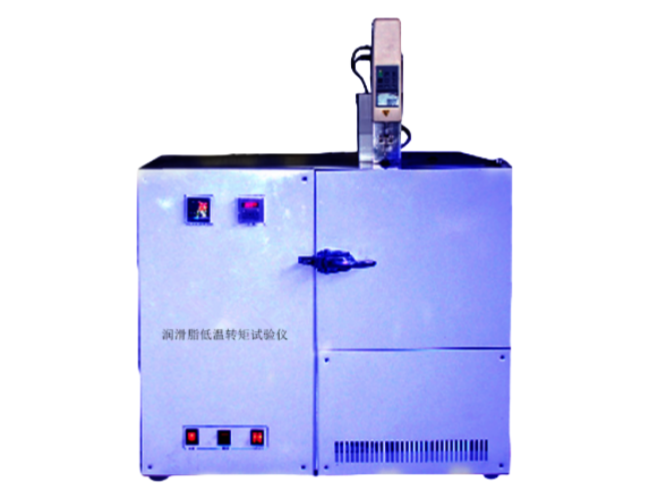

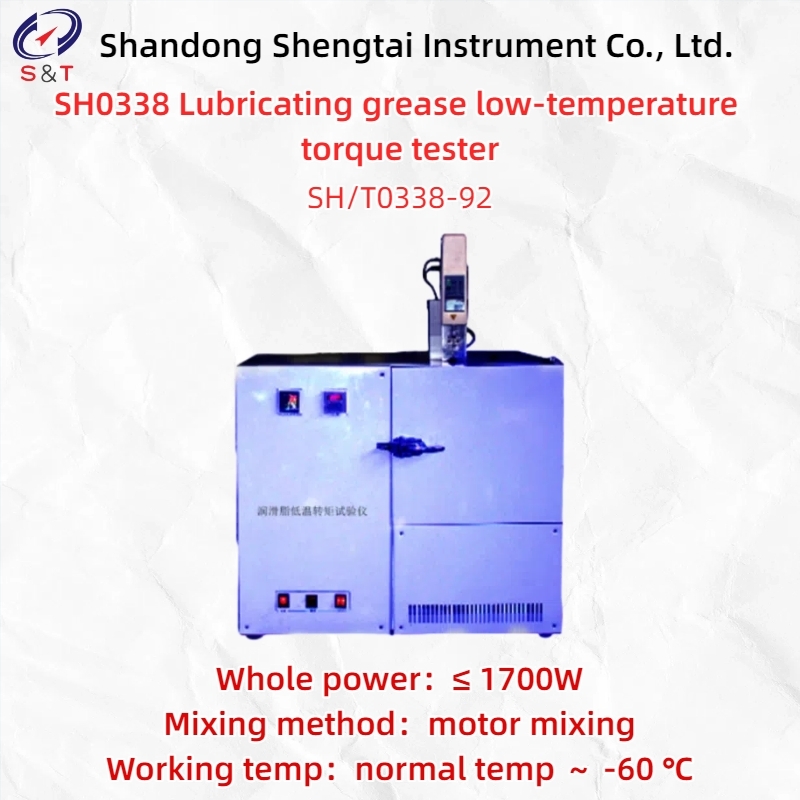

SH0338 Lubricating grease low-temperature torque tester

The SH0338 low temperature torque tester for lubricating grease is suitable for measuring the low temperature torque of ball bearing lubricating grease below -20 ℃, in accordance with SH/T0338-92. This instrument adopts dual compressor refrigeration, which is fast and effective. The structure of this instrument is simple and the appearance is beautiful, making it very suitable for laboratory use.

Performance and Features

1. This instrument adopts imported dual compressor refrigeration, uses condenser for heat dissipation, and can be cooled by connecting the power supply.

2. The instrument adopts an imported digital temperature controller for temperature control, and the sensor uses Pt100, which is sensitive to temperature, has high resolution, strong anti-interference ability, and high temperature control accuracy.

3. The low-temperature chamber of this instrument has good sealing, ensuring a constant internal temperature and maintaining it under the required temperature conditions for the experiment.

4. A door control switch is installed at the door of the box. During the test, when the door is opened, the internal fan stops working to ensure the safety of the operator.

Main technical parameters

• Refrigeration method: Dual compressor refrigeration

• Mixing method: motor mixing

• Temperature control method: Imported digital PID temperature control

• Temperature control accuracy: ± 0.5 ℃

• Working temperature: normal temperature ～ -60 ℃

• Whole machine power: ≤ 1700W

• Rated voltage: AC220V ± 10% 50Hz

• Environmental temperature: ≤ 25 ℃

• Relative humidity: ≤ 85% RH

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
