100000 Times Shear Testing Machine Speed 1400 R/Min Shear Rate 60 Times/Min GB/T269-91

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMotor | Horizontal Single-phase Capacitor Starting Motor | Speed | 1400 R/min |
---|---|---|---|
Transmission Ratio | 25:1 | Shear Rate | 60 Times/min |
Instrument Size | 350 * 320 * 380mm | Weight | 40kg |

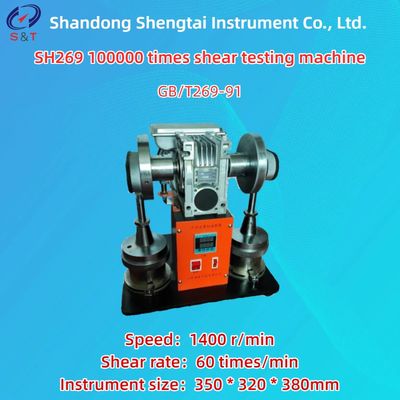

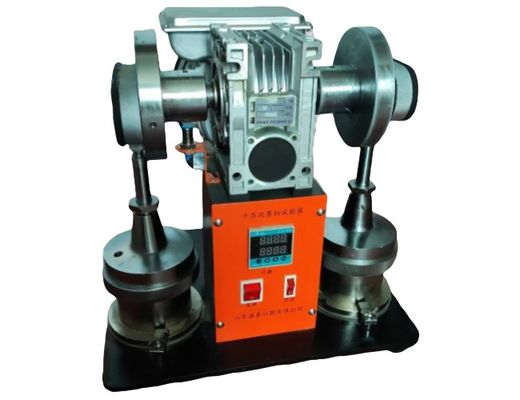

SH269 100000 times shear testing machine
SH269 100000 times shear testing machine is used to determine the mechanical stability of lubricating grease according to the requirements of GB/T269-91 "Determination of Cone Penetration of Lubricating and Stone Greases" test standard under specified test conditions. The viscosity change after mechanical shear work is used to determine the mechanical stability of the lubricating grease, expressed as extended cone penetration or shear safety, with a unit of 0.1mm.
Performance characteristics:
● Using an electric motor to drive the reducer to achieve a shear rate of 60 times/minute or 100000 times/minute
● Extended cone penetration test and manual working cone penetration test
● The monitor can display the number of cuts on its own
● The counter can count on its own
● The entire instrument has a compact and complete structure
Technical parameters:
Motor | Horizontal single-phase capacitor starting motor |
Speed | 1400 r/min |
Coupling | Plum shaped elastic coupling |
Worm gear reducer | dual output shaft reducer |
Transmission ratio | 25:1 |
Shear rate | 60 times/min |
Max counting capacity | 999999 |
Lubricating grease actuator working stroke | 67-71mm |
Diameter of each hole on the orifice plate | Ф6.35+0.13 |
Power supply | AC220 50Hz |
Power | 370W |
Instrument size | 350 * 320 * 380mm |
Weight | 40kg |
Packaging size | 490 * 440 * 420mm |
Weight | 42kg |
● Motor: Horizontal single-phase capacitor starter motor Speed: 1400 revolutions per minute
● Coupling: Plum shaped elastic coupling
● Worm gear reducer: Adopting a dual output shaft reducer with a transmission ratio of 25:1, a pair of eccentric mechanisms are installed on the worm gear shafts on both sides of the reducer
● Shear rate: 60 times/minute
● Maximum counting capacity: 999999
● Lubricating grease actuator: working stroke: 67-71mm
● Diameter of each hole on the orifice plate: Ф6.35+0.13
● Power supply: AC220 50Hz
● Power: 370W
● Instrument size: 350 * 320 * 380mm
● Weight: 40kg
● Packaging size: 490 * 440 * 420mm
● Weight: 42kg
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
Number | Name | Quantity | Unit | Note |
1 | Host | 1 | Unit | |
2 | Power line | 1 | Copy | |
3 | Instructions | 1 | Copy | |
4 | Packing list | 1 | Copy | |
5 | Certificate of Conformity Warranty Card | 1 | Copy |
