xMODEL | SH117 | Metal Bath Power | 700W |
---|---|---|---|
Temperature Control Accuracy | ±0.1ºC | Power Supply | AC220V±10% 50Hz |
Input Power | 800W | ||
High Light | ASTM D2265 Dropping Point Apparatus,Lubricating Grease Dropping Point Apparatus |

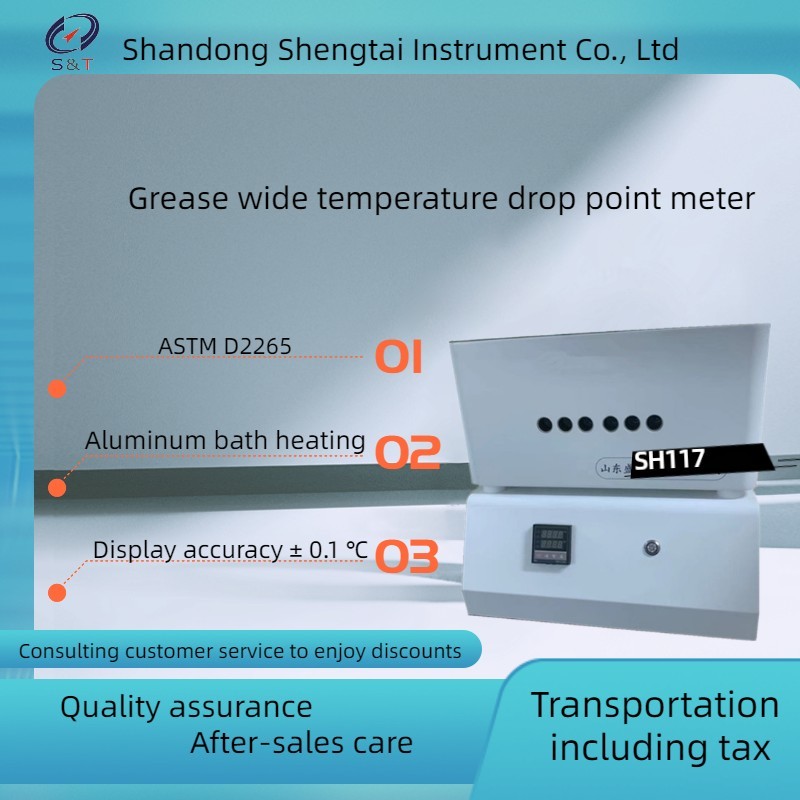

ASTM D2265 Wide Temperature Range Lubricating Grease Dropping Point Apparatus Six Samples Were Tested Simultaneously
SH117 wide temperature range drop point tester in accordance with GB/T3498-2008, ASTMD2265 and other standards to determine the wide temperature range drop point of grease, that is, under the specified test, the temperature at which the grease reaches a certain flow.
Technical specification parameters
1 wide temperature lubricating grease drop point tester is suitable for measuring the drop point of lubricating grease in wide temperature range, meeting the standard requirements of GB/T 3498 "wide temperature drop point determination of lubricating grease".
2 wide temperature grease drop point tester adopts aluminum bath heating, the temperature of each hole should be consistent.
3 wide temperature grease drop point tester can test 6 samples at the same time.
4 Measuring range: room temperature ~ 400℃, controlled by digital meter, constant temperature and stability.
5 Temperature control accuracy ±0.1℃.
The 6 cups are made of chrome plated brass and come with 6 PCS.
7 fat cup, test tube to comply with GB/T3498 regulations.
8 The scale of the thermometer is -5 ~ 400℃, the minimum grading is 1℃, in line with the provisions of GB/T514-83.
9 The safety of the wide temperature grease drop point tester meets the standard requirements of GB/T 32705 "Safety Code for Laboratory Instruments and Equipment Power Supply".
Features

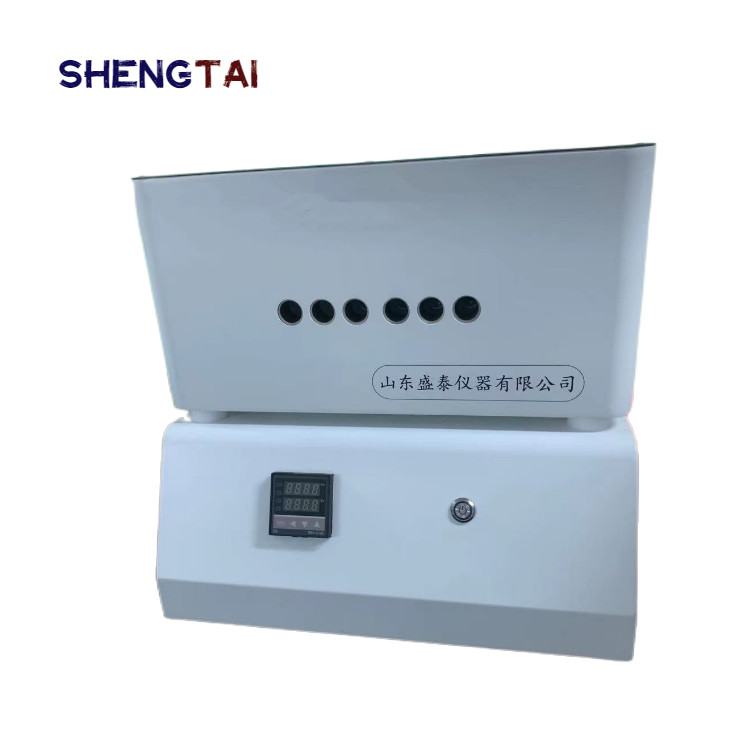

The wide temperature range grease drop point tester adopts metal bath; digital display temperature control; lighting is provided at the rear of observation window; 6 holes for easy observation.
Technical Parameters
Metal bath power | 700W |
Temperature Control Range |
bath temperature~400ºC(digital display);
|
Temperature control accuracy | ±0.1ºC |
Grease Cup | chrome plated copper, Equipped with 6 |
Grease cup and test tube shall comply with the provisions of GB/T3498 | |
Power Supply | AC220V±10% 50Hz |
Input Power | 800W |
The scale of the thermometer is - 5~400 ℃, and the actual temperature measurement is to 400 ℃ with a minimum graduation of 1 ℃, which conforms to the provisions of GB/T514-83. | |
Size: 350 * 320 * 450mm Weight: 15kg |
packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Dropping test tube and other sets | 6 | set | |
3 | thermometer | 7 | piece | |
4 | Metal rod | 1 | copy | |
5 | Thermometer depth gauge | 1 | piece | |
6 | power cord | 1 | copy | |
7 | instructions | 1 | copy | |
8 | Packing list | 1 | copy | |
9 | Certificate warranty card | 1 | copy |
