ASTM D2500 point tester For Fully Automated Cloud Point Of Petroleum Products
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|MODEL||SH13F||Applicable Standards||ASTM D2500.GB/T6986|
|Temperature Measurement Range||-70 ~ 50℃||Temperature Control Accuracy||< ±0.1℃|
|Refrigeration Medium||Metal Bath Refrigeration||Cloud Point Detection||Optical Fiber Detection|
|Printer||A Small Thermal Printer|
SH113F turbidity point tester,
ASTM D2500 turbidity point tester

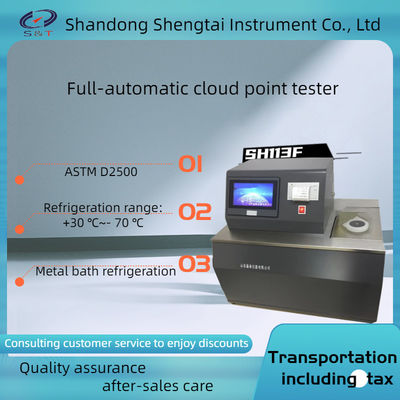

ASTM D2500 Standard Test Method For Fully Automated Cloud Point Of Petroleum Products (Single Well)
SH113F automatic turbidity point tester according to the standard of the People's Republic of China "oil cloud point determination method (GB/T6986-2014) for design and manufacture, using multiple single chip control parts, automatic cooling, automatic constant temperature, automatic detection, and automatically print output. Form cold bath box adopts dry well, hysteresis of small, fast cooling, do not need other cooling medium, easy to use and maintain. USES the high performance infrared detection technology, high detection sensitivity, reliability.
Products also comply with ASTM D2500.
1. Embedded integrated industrial-grade color LCD touch screen is flexible and convenient to operate.
2. Touch screen control and program control are easy to operate, and the built-in miniature thermal printer can automatically report the test results
3. The cold bath constant temperature adopts the single-stage mechanism cooling system and the imported compressor from Danfoss Germany to make the work stable and reliable for a long time and the service life is long
4. Dry trap cold bath box, with small lag, fast cooling, testing sample waiting time is short, do not need other cooling medium, easy to use and maintenance.
5. Fast refrigeration speed, low noise, continuous test.
★6 Microcomputer storage can expand the memory to 16G.
7, the experimental results can be exported through U disk
In line with national standards: GB/T6986, ASTM D2500.
Number of test holes: double holes
Temperature range: -70℃ ~ 50℃
Temperature control accuracy: < ±0.1℃
Refrigeration medium: metal bath refrigeration
Cloudpoint detection: optical fiber detection
Human-machine interface: 7 inch color LCD touch screen
Printer: a small thermal printer
Power supply: AC220 V 50HZ Max power: 2KW
Storage: 199 sets of historical data can be stored for easy query;
Result output: at the same time can be equipped with U disk output function, output to the PC for long-term storage
Output format: The output format of the result USB flash disk is CSV or EXCEL.
★ Data extension: laser printer interface, can be linked to HP1108 laser printer (optional).
★ Data protection: with date password setting function.
Standard printing: standard micro printer automatic measurement automatic thermal printing
★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade
★ Data management: can be connected to LIMS system
★ Data memory: microcomputer instrument memory can be expanded to 16G.
|Model||SH113F automatic turbidity point tester|
|Applicable standards||ASTM D2500.GB/T6986|
|Temperature measurement range||-70 ~ 50℃|
|Temperature control accuracy||< ±0.1℃|
|Refrigeration medium||metal bath refrigeration|
|Instrument size: 650 * 480 * 620mm Instrument weight: 75kg|
|Package size: 690 * 520 * 660 Package weight: 80kg|
|Cloud point detection||optical fiber detection|
|Printer||a small thermal printer|
|Human-machine interface||7 inch color LCD touch screen|
|Storage mode||199 sets of historical data can be stored for easy query;|
at the same time can be equipped with U disk output function, output to the PC for long-term storage
laser printer interface, can be linked to HP1108 laser printer (optional).
|Output format||the output format of the result USB flash disk is CSV or EXCEL.|
with TCP network transmission function, can be later software remote upgrade
can be connected to LIMS system
|Data memory||microcomputer instrument memory can be expanded to 16G.|
Packing list of automatic Cloud point meter
|2||Cloud point glass test tube||2||set||Including inner tube and outer tube|
|3||Cloud point sensor||2||piece|
|8||Certificate warranty card||1||copy|
