Product Details
MODEL SH127 Working Power Supply AC220V Plus Or Minus 10% 50 Hz
Machine Power 2KW Motor Speed 100 ~ 350±10r/min Adjustable
Heating Method Stainless Steel Electric Heating Tube Heating Control Temperature Adjustable From Room Temperature To 200℃
Temperature Control Mode Digital Display PID Temperature Controller
High Light

SH127 grease adhesion tester

,

Digital PID Temperature Control adhesion tester

Leave a Message
Product Description

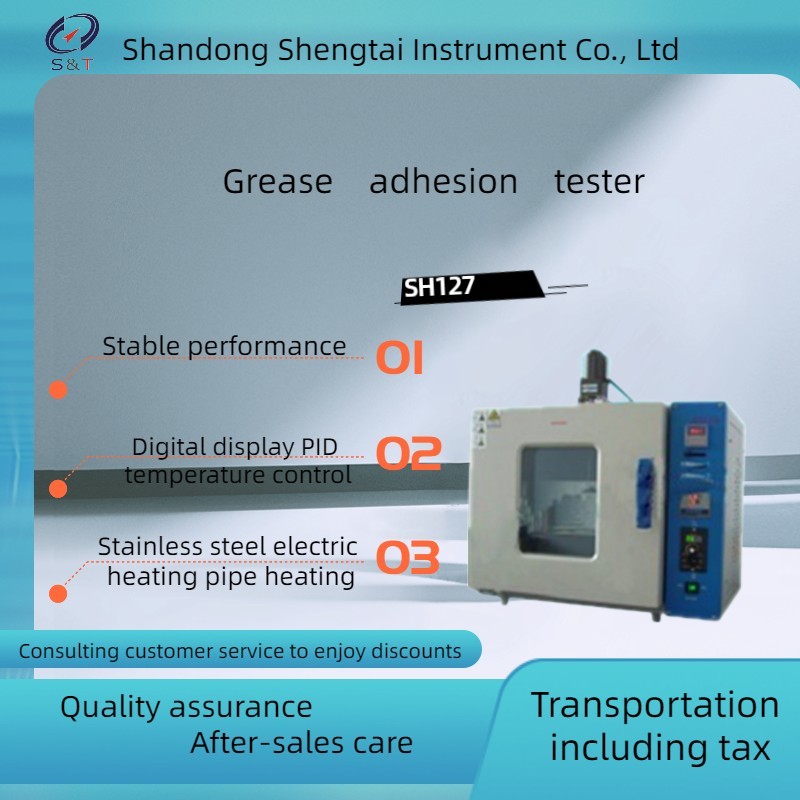

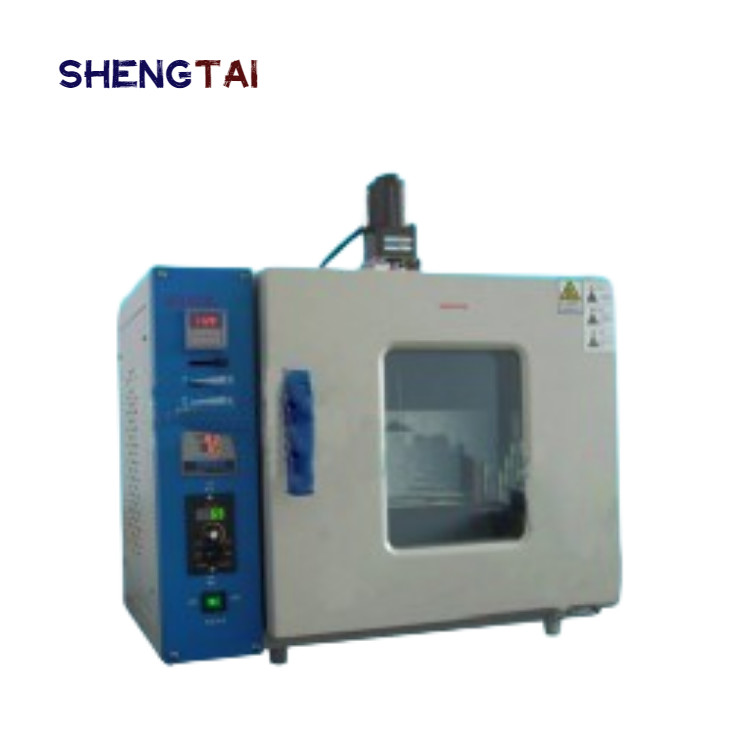

Digital PID Temperature Control Instrument For Measuring The Adhesion Of Lubricating Grease To Metal Surfaces
SH127 grease adhesion tester, the instrument in accordance with the SH/T0469 standard manufacturing, suitable for the determination of grease adhesion to metal surface.
The working temperature of the instrument can be raised from room temperature to 200℃. In this range, the working temperature can be set arbitrarily according to the needs of the work. After setting, the automatic control system in the box keeps the temperature constant within the specified range.
Temperature control system adopts digital display PID temperature controller to control the temperature, which has the characteristics of high temperature sensitivity and stable operation.
Lubricating Grease Adhesion Tester
Main technical parameters:
Temperature control mode: digital display PID temperature controller
Control temperature: adjustable from room temperature to 200℃
Heating method: stainless steel electric heating tube heating
Motor speed: 100 ~ 350±10r/min adjustable
Timing mode: digital display timer timing, time can be adjusted arbitrarily
Working power supply;AC220V plus or minus 10% 50 hz
Machine power: 2KW


Temperature control modedigital display PID temperature controller
Control temperatureadjustable from room temperature to 200℃
Heating methodstainless steel electric heating tube heating
Motor speed100 ~ 350±10r/min adjustable
Timing modedigital display timer timing, time can be adjusted arbitrarily
Working power supplyAC220V plus or minus 10% 50 hz
Machine power2KW
Instrument size: 450 * 380 * 520mm Weight: 30kg



Packing list

S/NNameQuantity Unit Remarks
1Host1set
2Attachment of adhesion tester1set
3power cord1piece
4Instructions1copy
5

Packing list



1copy
6Certificate warranty card1copy
