ASTM D1831 Drum Stability Tester For Determining Lubricating Greases

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH129
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH129 Power Supply AC220V±10%;50Hz
Heating Method Heating Electric Heating Ring Motor Speed 155 ~ 180r/min
Temperature Control Range 21 ~ 38℃ Power Of The Whole Machine 1000W
Relative Temperature ≤85%
High Light

ASTM D1831 Drum Stability Tester

,

Lubricating Greases Stability Tester

Leave a Message
Product Description

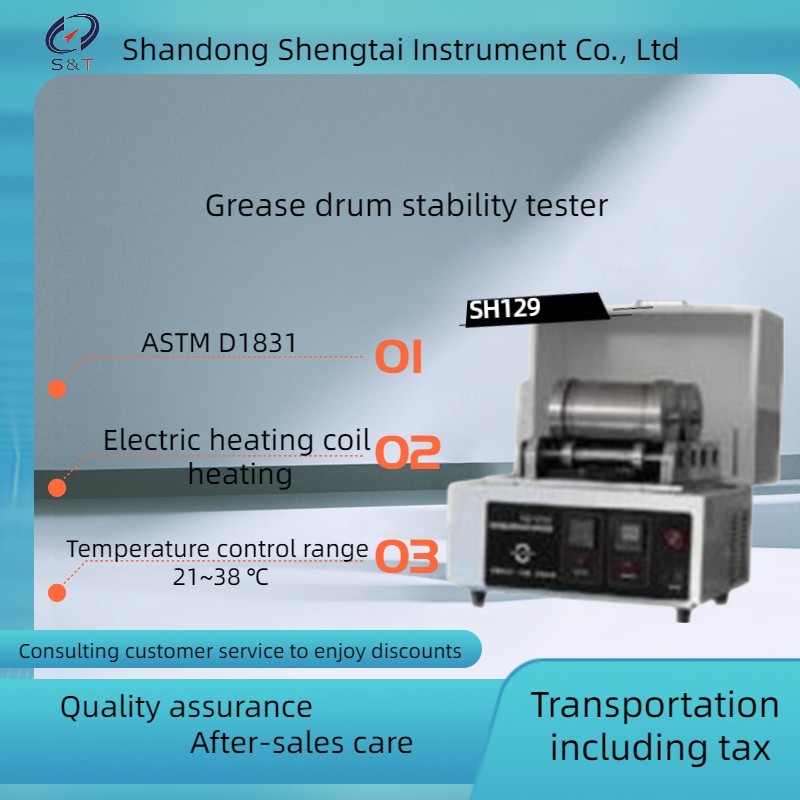

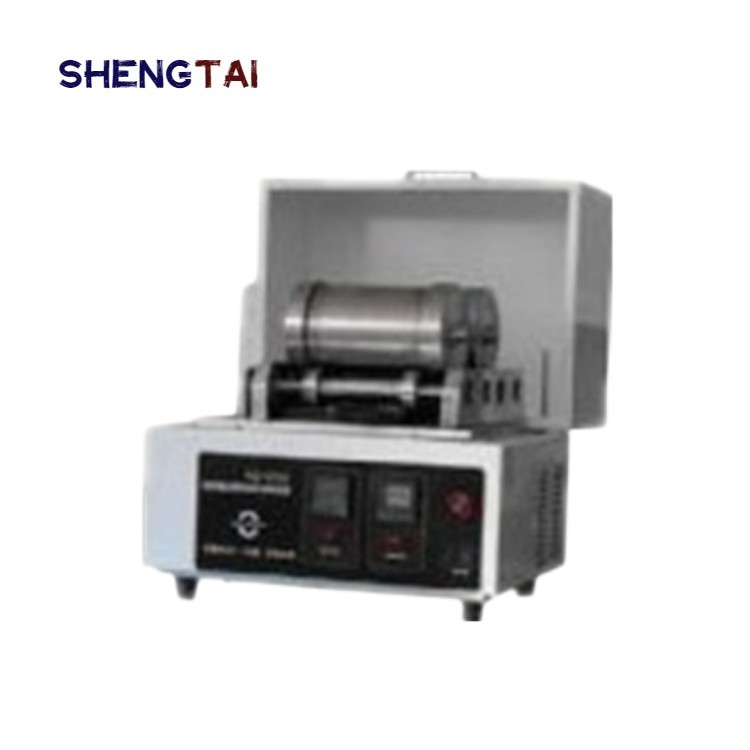

ASTM D1831 Drum Stability Tester For Determining The Mechanical Shear Stability Of Lubricating Greases

SH129 grease drum stability instrument is applicable to standard ASTM D1831 SH/T0122, the operation of the instrument: with a certain amount of samples, at room temperature, after working on the drum test machine for 2h, determine the work of grease before and after the test coning degree.

The instrument is suitable for measuring the consistency change of grease after working on the drum tester, and is used to judge the mechanical shearing stability of grease.

ASTM D1831 Lubricating Grease Roll Stability Tester

ASTM D1831 Determination of Grease Roller Stability Roll Stability Tester

Newly ASTM D1831 Grease Roll Stability Testing Equipment

ASTM D1831 Laboratory Equipment Grease Roller Stability Tester

Technical parameters

1, applicable to standard ASTM D1831 SH/T0122

2. Heating method Heating by electric heating ring

3, timing mode digital timer

4, the temperature control range of 21 ~ 38℃

5, motor speed 155 ~ 180r/min

6. Unit of Work 2 units

7. The power of the whole machine is 1000W

8, working power supply AC220V/50HZ

performance characteristics

1, stainless steel roller Φ 90 x 180 mm 5 kg;

2. The idling wheel has a positioning ring to control the normal operation of the drum;

3, the lower part is equipped with a driving motor, so that the speed is maintained in 155 ~ 180r/min;

4. Belt drive drum;

Microcomputer temperature controller, digital display, precision ±5℃ PT100 sensor;

6, digital timer, record working time, with wind alarm;

7, can test two rollers at the same time;

8, the instrument box cover oil a thermometer hole, can be temperature correction;

1,Power supply: AC220V±10%;50Hz
2, Heating method Heating electric heating ring
3, motor speed: 155 ~ 180r/min
4,Temperature control range: 21 ~ 38℃
5,: Unit of Work 2
6, Power of the whole machine 1000W
7,Relative temperature: ≤85%.
Instrument size: 500 × 440 × 450 mm instrument weight: about 30Kg

packing list



S/N Name Quantity Unit Remarks
1 Host 1 set
2 Roller 2 piece
3 Power cord 1 piece
4 Instruction 1 copy
5 Packing list 1 copy
6 Certificate warranty card 1 copy
