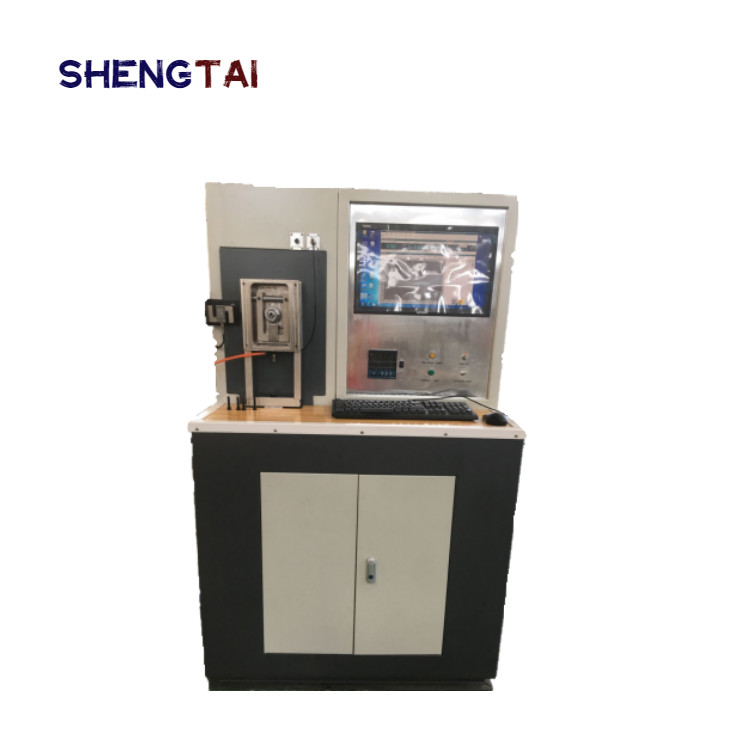

SRH12 Ring Block Friction Testing Machine Timken Method Servo Motor Control

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SRH12
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SRH12 Maximum Friction Force 300N
Maximum Test Force 3000N Test Force Accuracy ±1%
Accuracy Of Friction ±3% Spindle Speed Error ±2%
Spindle Revolution Display Range 0-9999999 Temperature Control Accuracy ±2℃
High Light

Friction Testing Machine Timken Method

,

Ring Block Friction Testing Machine

,

Servo Motor Control Friction Testing Machine

Leave a Message
Product Description

SRH12 Ring Block Friction Testing Machine (Timken Method) Bearing Capacity Of Lubricating Oil/Grease Servo Motor Control

SRH12 Timken ring friction and wear testing machine is also called Timken tester, measuring various lubricants, lubricating oil, grease and solid lubrication film) : the carrying capacity under the specified test conditions, the comparison of lubricant oil film rupture and able to withstand the maximum test force is OK before, accord with national standard SHT0203-1992 extreme pressure grease performance measurement method (ladder, Ken tester), USES the line contact brush sliding friction and wear performance of the way of test sample.

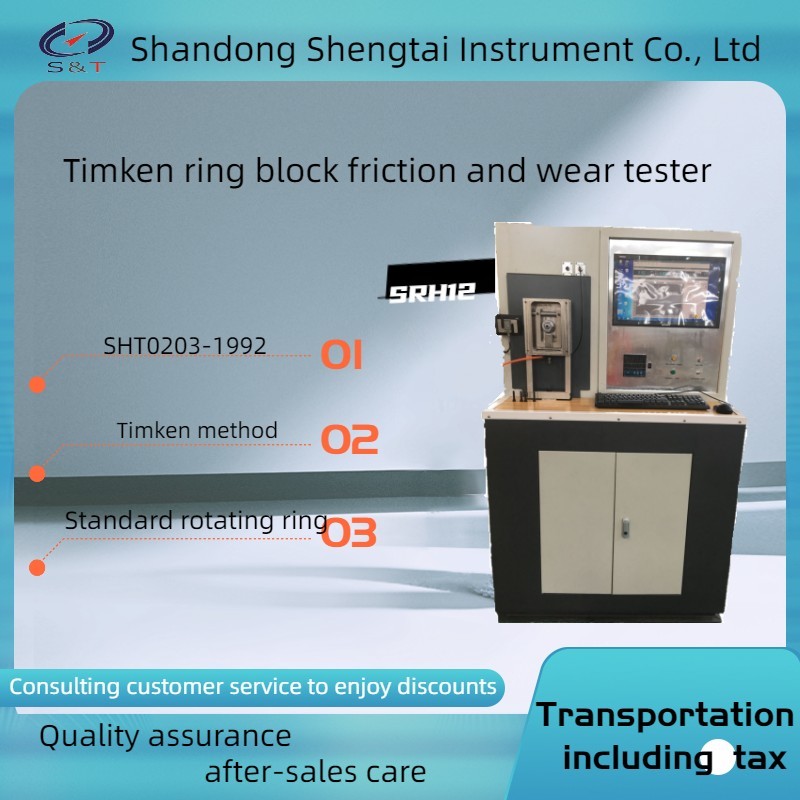

Ring Block Friction and Wear Tester

High Speed Ring-Block Wear Testing Machine

Ring-Block Wear Testing Machine

High Speed Ring-Block Wear Testing Machine

The working principle is: the active part is a standard rotating ring, the passive part is a fixed rectangular block of standard size.

The bearing capacity of lubricant and the friction and wear performance of friction pair materials were evaluated by measuring the width of strip wear mark on the rectangular block of passive specimen under different loads, as well as the friction and friction coefficient between the friction pair materials.

It can be used to evaluate the lubrication properties of various lubricants under the condition of oil immersion lubrication, especially for the simulation evaluation of the abrasion resistance of middle and high grade automobile gear oil, and can be used to study the wear properties of various metallic and non-metallic materials and coatings.

The machine for frame type structure, servo motor control lever load, the test parameters to achieve unitized setting, convenient operation, accurate and reliable test readings, the machine USES integration structure design, computer, software, industrial control module, the actuator combinations in a framework, complete control of the whole experiment process, can collect real-time experiment data and draw the corresponding curve, can be arbitrary stored, read and print the test data or curve.

Meet the standard: GB/T 11144-2007 "Lubricating fluid extreme pressure performance determination method Timken method"

SH/T0203-2014 "Grease Extreme Pressure Performance Determination Method Timken Testing Machine Method"

OK value: the maximum mass (weight) that is applied to the weight plate of the load lever without causing scratch or bite during the measurement of lubricant bearing capacity.

Scratch value: the minimum mass (weight) added to the weight plate of the load lever in case of scratch or bite in the process of measuring the bearing capacity of lubricant.

Method summary:

Before starting the test, the sample should be preheated to 37.8℃±2.8℃.

In the test, a steel test ring is turned against a steel test block.

The rotational speed is 123.71m/min±0.77m/min, which is equivalent to the shaft speed of 800r/min±5r/min.

Two values need to be determined: the minimum mass (weight) of the rupture of the oil film between the rotating test ring and the fixed test block that can cause a bite or scratch, namely the scratch value.

The maximum mass (weight) of the oil film between the rotating test ring and the fixed test block that does not break without causing snagging or scratching, i.e. OK value.



II. Main technical specifications:



Project name Technical index
Maximum test force 3000N
Test force accuracy ±1%
Maximum friction force 300N
Accuracy of friction ±3%
Spindle speed range 100-3000r/min
200-6000r/min(可选)
Spindle speed error ±2%
Spindle revolution display range 0-9999999
Time display range 0-9999s或min
Oil temperature Room temperature-100℃(HX-PID self-tuning temperature control system)
Temperature control accuracy ±2℃
Standard test sample

Ring diameterφ49.22×13.06mm,

Sample block 12.32×12.32×19.05

Testing machine external size 1000×700×1470
Testing machine net weight 450kg




Packing list

Category Name Unit Quantity Note
product Host set 1
Technical document Instruction manual copy 1
Certificate of conformity copy 1
Packing list copy 1
Heater piece 1
Room temperature oil chamber cap piece 1
Cavity cover sealring piece 1
High temperature oil chamber cover piece 1
Ring block sample piece 1
Work with Ring removal tool piece 1
Lifting screw piece 4
Shock cushion iron piece 4
Measuring cup piece 1

























































SRH12 Ring Block Friction Testing Machine Timken Method Servo Motor Control 0

SRH12 Ring Block Friction Testing Machine Timken Method Servo Motor Control 1SRH12 Ring Block Friction Testing Machine Timken Method Servo Motor Control 2
