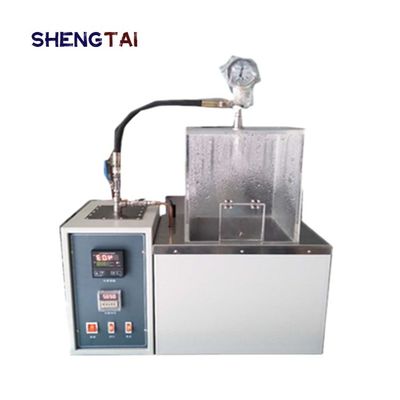

ASTM D4049 Spray Tester For Determining The Resistance Of Lubricating Grease To Water Spray

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SY0643
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SY0643 Applicable Standards ASTM D4049 SH/T0643
Working Water Pressure 40psi±1psi Water Pressure Control Bypass Valve Adjustment
Heating Method Electric Heating Tube Heating Timing Method Digital Display Timer
Working Temperature 38±0.5ºC Spray Method Precision Sprinkler Head
Stainless Steel Nozzle, Nozzle Diameter Φ3.18mm
High Light

anti water spray tester

,

ASTM D4049 spray tester

Leave a Message
Product Description

ASTM D4049 Standard Test Method For Determining The Resistance Of Lubricating Grease To Water Spray

Product Overview:

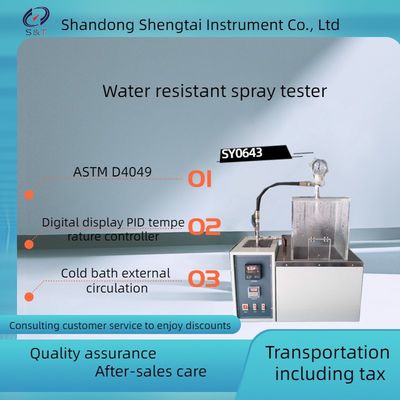

The use principle of SY0643 anti-water spray tester is: grease is coated on a stainless steel plate, and water spray is used under the specified test temperature and pressure.

After 5min, the spray weight loss percentage of grease is measured as a measure of the spray resistance of grease.

Perspex spray box, easy to observe precision pressure gauge display spray pressure.

  • ASTM D4049 Lubricating Grease to Water Spray Resistance Tester
  • ASTM D4049 Water Spray off Tester for Measuring Resistance of Lubricating Grease to Water Spray
  • SY0643Grease Water Spray Resistance Tester
  • ASTM D4049 - Determining the Resistance of Lubricating Grease to Water Spray
  • Standard Test Method for Determining the Resistance of Lubricating Grease to Water Spray

Technical parameters:

1. Applicable standard: SH/T0643-97 ASTM D4049

2, control temperature: 38±0.5℃

3, Temperature control mode: digital display PID temperature controller

4, heating method: electric heating tube heating

5. Timing method: digital display timer

6, working water pressure: 40psi±1psi

7, water pressure control: bypass valve regulation

8, spray method: precision sprinkler head

9, stainless steel nozzle, nozzle diameter: Φ3.18mm;

10. size:480mm*350mm*580mm weight:24kg



Applicable standards: ASTM D4049 SH/T0643
Working water pressure: 40psi±1psi
Water pressure control: Bypass valve adjustment
Heating method: Electric heating tube heating
Timing method: Digital display timer
Working temperature: 38±0.5ºC
Spray method: Precision sprinkler head
weight 24kg
size 480*350*580mm
stainless steel nozzle, nozzle diameter Φ3.18mm;
Temperature control mode

digital display PID temperature controller





Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Mould 1 piece
3 Scraper 1 piece
4 power cord 1 piece
5 Instructions 1 copy
6

Packing list



1 copy
7 Certificate warranty card 1 copy

ASTM D4049 Spray Tester For Determining The Resistance Of Lubricating Grease To Water Spray 0

ASTM D4049 Spray Tester For Determining The Resistance Of Lubricating Grease To Water Spray 1
