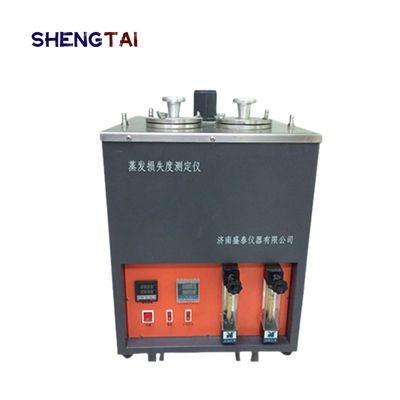

SY7325 Lubricating Oil And Grease Evaporation Loss Tester Applicable To ASTM D972

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SY7325
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SY7325 Temperature Range Room Temperature ~ 260 ºC Adjustable
Temperature Control Accuracy ±0.5ºC Flow Meter 0.4 ~ 4g/min
Input Voltage AC220V±10% 50Hz Timing Device 0 ~ 100 Hours
High Light

ASTM D972 Lubricating Oil And Grease Tester

,

Oil And Grease Evaporation Loss Tester

Leave a Message
Product Description

SY7325 Lubricating Oil And Grease Evaporation Loss Tester Is Applicable To 99~150 ℃ ASTM D972

SY7325 lubricating oil and grease evaporation loss tester is designed and manufactured according to GB/T7325 "lubricating oil and grease evaporation loss determination method" and ASTM D972 .

It is suitable for measuring the evaporation loss of lubricating oil or grease at any temperature of 99 ~ 200℃.



ASTM D972 Lubricating Oils and Greases Evaporation Loss Tester

ASTM D972 Lab Lube Oil Grease Evaporation Loss Test Apparatus

ASTM D972 Lube Oil Grease Evaporation Loss Tester

Lube Oil/Grease Evaporation Loss Tester

ASTM D972 Lubricating Greases and Oils Evaporation Loss Testing Machine



Product features:

It is composed of bath, temperature control meter, air pump, flow meter, temperature control circuit and so on.

An air pump and a flowmeter are used to inject air into the sample in the evaporation test device in the constant temperature bath at a quantitative flow rate. After a specified time, the evaporation loss of the sample is measured.

Technical indicators:

Temperature range room temperature ~ 260 ºC adjustable
Temperature control accuracy ±0.5ºC
Input power 2KW
Flow meter 0.4 ~ 4g/min
timing device 0 ~ 100 hours
Input voltage

AC220V±10% 50Hz



Mixing motor 25W
Dimension: 430 * 320 * 480mm Weight: 20kg





































Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Power cord 1 piece
3 Evaporating pan 2 groups
4 Test dish 2 groups
5 Air filter 1 piece
6 Air pump 1 piece
7 Fuse wire 1 piece 5Aor20A
8 specification 1 copy



SY7325 Lubricating Oil And Grease Evaporation Loss Tester Applicable To ASTM D972 0SY7325 Lubricating Oil And Grease Evaporation Loss Tester Applicable To ASTM D972 1

SY7325 Lubricating Oil And Grease Evaporation Loss Tester Applicable To ASTM D972 2
