Fully Automatic Oil Liquid Interface Surface Tension Meter SH107
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SH107 | Measurement Method | Platinum Ring |
---|---|---|---|
Measuring Range | 2 ~ 200mN/m | Sensitive Valve | 0.1mN/m |
Accuracy | ±0.01mN/m | Slow | 0.3 -- 0.4 Mm/S |
Power Supply | AC220V±5%, 50HZ | ||
High Light | automatic interfacial tensiometer,SH107 interfacial tensiometer,SH107 Surface Tension Meter |

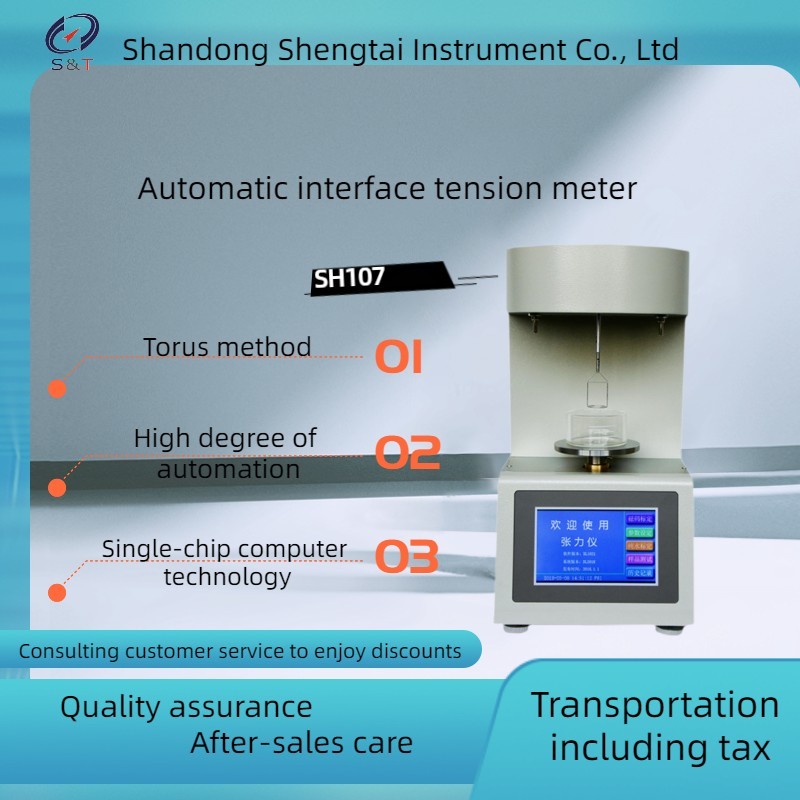

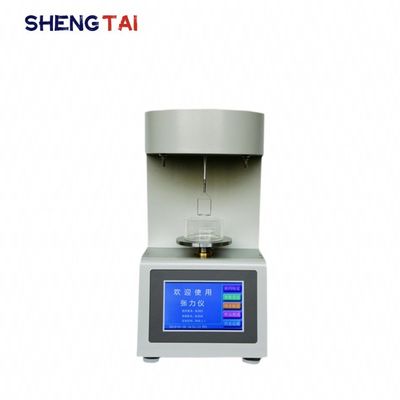

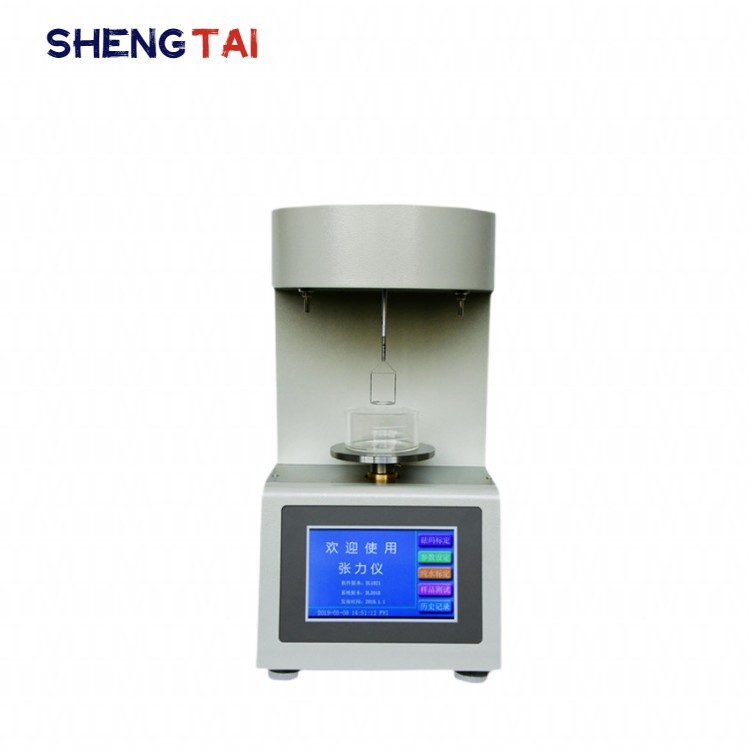

Fully Automatic Oil Liquid Interface Surface Tension Meter Platinum Ring TensiometerSH107
SH107 automatic interfacial tensiometer is designed and manufactured by GB/T6514. It measures the surface tension of various liquids (liquid-gas interface) and the interfacial tension of mineral oil and water (liquid-liquid interface) under non-equilibrium conditions by the annular method.
The instrument adopts microprocessor technology, high degree of automation, simple operation, reliable work, after the sample is injected into the sample cup, as long as press the start button, the instrument can automatically complete the measurement of the sample, and can automatically calculate the tension value of the test sample according to the specific parameters of the input.
The instrument adopts single-chip technology, large LCD display, beautiful appearance, high degree of automation, simple operation, high accuracy, good repeatability.
Product model | SH107 |
Product model | Automatic interface tension meter |
Manufacturer | Shandong Shengtai Instrument Co., Ltd |
Test items | It is widely applicable to the measurement of interfacial tension in the production process and products of electric power, petroleum, chemical, railway and other industries |
Compliance with standards | Designed and manufactured in accordance with GB/T6514 |
Simple technical features | Adopt single-chip technology, large screen LCD display, beautiful appearance, high degree of automation, simple operation, high accuracy and repeatability |
Du Nouy Ring Automatic Interface Tensiometer
Platinum Ring Method Automatic Surface/Interface Tension Tester/Tensiometer for Various Liquids
Fully Automatic Oil Liquid Interface Surface Tension Meter Platinum Ring TensiometerSH107
SH107 Automatic Surface Tension Meter, Digital Tensiometer for Liquid Petroleum
Input data parameters are saved when power is off;
With temperature correction function.
The instrument is widely used in the measurement of interfacial tension in the production process and products in electric power, petroleum, chemical industry, railway and other industries.
Technical parameters
Display | large screen LCD display interface tension |
Measurement method | Platinum ring |
Measuring range | 2 ~ 200mN/m |
Sensitive valve: | 0.1mN/m |
Accuracy | ±0.01mN/m |
Slow | 0.3 -- 0.4 mm/S |
Movement speed: fast | 1mm/S |
Power consumption | 20VA |
Dimension | length 185, width 290, height 360 |
Working environment | Temperature:10ºC-30ºC; Humidity: ‹80% |
Power supply | AC220V±5%, 50HZ |
Overall dimensions: | length 185, width 290, height 360 |
Weight | 15kg |
Packing list
S/N | Name | Unit | Quantity | Remarks |
1 | Host | set | 1 | |
2 | Platinum ring | piece | 1 | |
3 | Pendant | piece | 1 | |
4 | Weight (1g) | piece | 1 | |
5 | Tension cup | piece | 1 | |
6 | power cord | piece | 1 | |
7 | Printing paper | piece | 1 | |
8 | power cord | piece | 1 | |
9 | Instructions | copy | 1 | |
10 | Certificate of approval | copy | 1 |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
