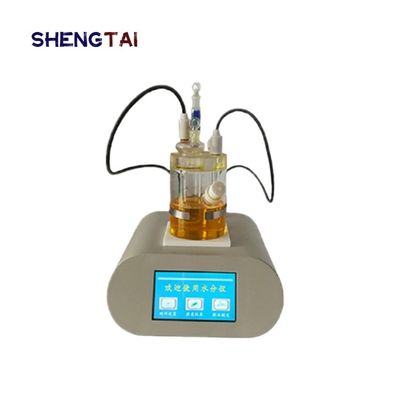

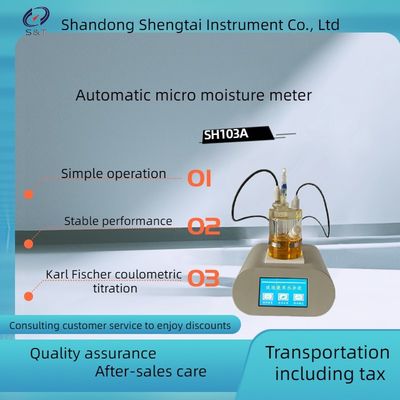

Automatic Micro Moisture Meter SH103A Water Content Of Petroleum Products

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH103A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH103A International Standard GB/T7600 GB/T11133
Resolution Ration 0.1ug Faradaic Current 0-400mA
Precision The Test Water Amount Between 10ug ~ 1000ug,the Error Is Less Than 3ug The Test Water Is Less Than 1000ug, And The Error Is Less Than 0.3%
High Light

Moisture Meter SH103A

,

Automatic Micro Moisture Meter

,

Petroleum Products Moisture Meter

Leave a Message
Product Description

Automatic Micro Moisture Meter SH103A Water Content Of Petroleum Products Karl Fischer Coulometric Titration

SH103A automatic trace moisture measuring instrument introduction

High sensitivity, high precision, high reproducibility, Chinese menu and prompt, simple and intuitive operation, low power consumption and energy saving design, suitable for petroleum, chemical, electric power, pharmaceutical and other fields, can be tested sample type: solid, liquid, gas.

instrument characteristics

1, 128×64 dot matrix LCD screen, Chinese prompt operation, intuitive and friendly

2, the use of electrolyte blank current compensation, electrolyte balance point drift compensation to correct the measurement results

3, large electrolytic current, can quickly reach the balance point, into the test state

4. With the function of calendar clock, the storage time of power down is 10 years

5, one-button operation, save time, improve work efficiency

Classical Theory: Karl-Fischer Coulomb Method (GB7600)

SH103A type automatic trace moisture measuring instrument special functions:

Large current background compensation function, reduce standby time;

When the national standard is revised, the instrument program can be upgraded;

Automatic Trace Moisture Meter Karl Fischer Moisture Meter

Fully Automatic Transformer Oil Trace Water Moisture Measurement Content Meter

Automatic Trace Moisture Meter Karl Fischer Moisture Tester

Automatic Karl Fischer Titrator /Trace Moisture Meter

Automatic Trace Moisture Tester SH103A

Automatic Transformer Oil Moisture Tester

Main technical indicators:



international standard GB/T7600 GB/T11133
precision

the test water amount between 10ug ~ 1000ug,the error is less than 3ug

the test water is less than 1000ug, and the error is less than 0.3%

measuring range 0. 0001% to 100%, according to PPM, from 0.1ppm to 1 million ppm
.resolution ration 0.1ug
Faradaic current 0-400mA

outline dimension:270x210x125mm weight:8kg



1ppm=0.0001%

Meet the following standards:

1, GB/T7600 "in operation transformer oil moisture content determination method (coulomb method)"

2, GB6283 "chemical products in the determination of moisture content Karl Fischer method (general method)"

3, SH/T0246 "determination of water content in light petroleum products (electric quantity method)"

4, SH/T0255 "additives and lubricating oil containing additives moisture determination method (electric quantity method)"

5, GB/T11133 "Determination of water content in liquid petroleum products (Karl Fischer method)"

6, GB/T7380 "surfactant water content determination (Karl Fischer method)"

7, GB10670 "industrial fluoromethane in the determination of trace moisture in the Karl Fischer method"

GB/T606 General method for determination of moisture in chemical reagents Karl Fischer method

9, GB/T8350 "denatured fuel ethanol"

10, GB/T8351 "automotive ethanol gasoline"

11, GB/T3776.1 "pesticide emulsifier moisture determination method"

12, GB/T6023 Determination of trace moisture in butadiene for industrial use - Karl Fischer Coulomb method

13, GB/T3727 Industrial ethylene, propylene determination of trace water

GB/T7376 Determination of trace moisture in fluoroalkanes for industrial use

GB/T18619.1 Determination of water content in natural gas -- Karl Fischer - Coulomb method

16, GB/T512 "grease moisture determination method"

17, GB/T1600 -- Determination of pesticide moisture

18, GB/T11146 "crude oil water content determination method (Karl Fischer coulomb method)"

19, GB/T12717 "industrial acetate test method"

GB/T5074 Coking products -- Determination of moisture

1,1, 2-tetrafluoroethane (HFC-134a) for industrial use

Moisture meter list

S/N Name Quantity Unit Remarks
  1.
Host 1 set
  1.
Electrolyte 1 bottle 500ml
  1.
Electrolytic cell 1 piece
  1.
Stirrer 1 piece
  1.
Silicone pad 10 piece
  1.
Discolored silica gel 1 piece
  1.
Vacuum grease 1 piece
  1.
1ml injector 1 piece
  1.
25ul micro injector 1 piece
  1.
Closed needle 1 piece
  1.
power cord 1 piece
  1.
Instructions 1 copy
  1.
Certificate warranty card 1 copy
