xMODEL | SH0089 | Applicable Standards | ASTM D1120, SH/T0089 Or SH/T0430 |
---|---|---|---|
Heating Mode | Electric Heating-jacket | Refrigeration Mode | Tap Water Circulation |
Temperature Control Mode | Solid State Voltage Regulator (SSVD) | Cooling Method | Water Circulation |
Power Supply | AC220V 50HZ | Thermometer | The Temperature Range Of -5℃-300℃, The Minimum Index Value Of 1.0℃ |
High Light | Brake Fluid Boiling Point Tester,Reflux Boiling Point Tester,ASTM D1120 Boiling Point Tester |

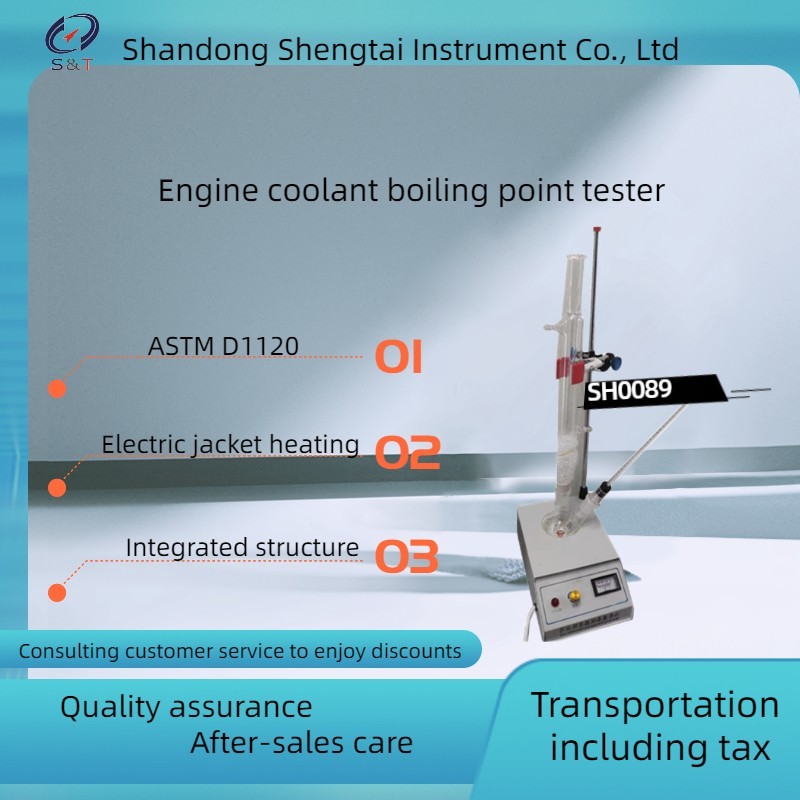

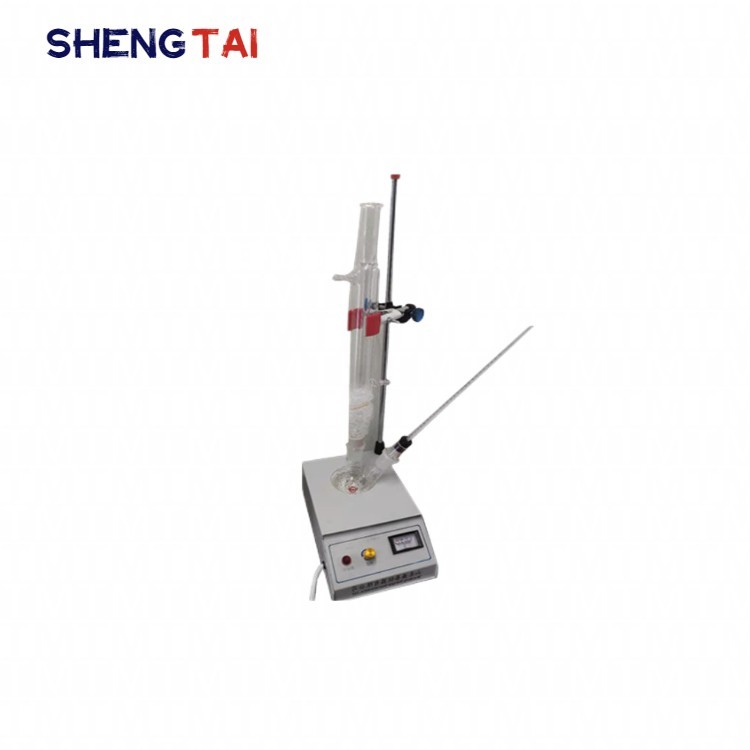

SH0089 engine coolant boiling point tester is to determine the equilibrium boiling point of engine coolant, suitable for the determination of diluted or concentrated engine coolant.
Boiling Point of Engine Coolants Tester
ASTM D1120 Brake Fluid / Engine Coolants Equilibrium Reflux Boiling Point Tester
ASTM D1120 Equilibrium Boiling Point Tester for Engine Coolants
ASTM D1120 Brake Fluid / Engine Coolants Equilibrium Reflux Boiling Point Tester
ASTM D1120 Equilibrium Boiling Point Test Equipment for Engine Coolants
ASTM D 1120 Engine Coolants Brake Fluid Boiling Point Detector
Boiling Point of Engine Coolants Apparatus
performance characteristics
Electric heating sleeve heating, no open fire, safe and environmental protection;
Integral structure, easy to operate;
Precision potentiometer to adjust the heating rate;
Convenient access to control box;
Tap water circulation cooling;
High power solid state voltage regulator control heater;
The surface is treated with electrostatic spray, easy to clean;
Technical parameters
1 | Applicable standards |
ASTM D1120, SH/T0089 or SH/T0430
|
2 | Heating mode | electric heating-jacket |
3 | Refrigeration mode | tap water circulation |
4 | Temperature control mode | solid state voltage regulator (SSVD) |
5 | Total power | 500W |
6 | Cooling method |
water circulation
|
7 | Power supply | AC220V 50HZ |
8 | Reflux condensing pipe |
200mm long, in line with SH/T0089 standard requirements.
|
9 | Thermometer | the temperature range of -5℃-300℃, the minimum index value of 1.0℃ |
10 | Distilled flask | made of hard glass and heat resistant above 500 degrees |
Instrument size: 320 * 290 * 360mm Weight: 15kg | ||
Package size: 450 * 390 * 420mm Weight: 18kg | ||
With a thermometer socket, in line with the requirements of SH/T0089.
|
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Instrument host (electric heating device) | 1 | set | |
2 | Condenser tube holder | 1 | piece | |
3 | Condenser tube | 1 | piece | |
4 | Round bottom flask | 1 | piece | |
5 | power cord | 1 | piece | |
6 | Certificate warranty card | 1 | copy | |
7 | instruction manual | 1 | copy |
