ASTM D5800 DIN51581 Lubricating Oil Evaporation Loss Tester Highly Precise

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH0059B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH0059B Working Power Supply AC (220±10%) V, 50Hz(customizable)
Temperature Control Range Normal Temperature To 250 °C ± 0.1 °C Temperature Control Mode Digital Display PID Temperature Control
Pressure Regulation Highly Precise Needle Valve Suction Method Vacuum Pump
Appplicable Test Standard ASTM D5800, SH/T 0059-2010
High Light

DIN51581 Evaporation Loss Tester

,

Lubricating Oil Evaporation Loss Tester

,

ASTM D5800 Evaporation Loss Tester

Leave a Message
Product Description

ASTM D5800 DIN51581 Lubricating Oil Evaporation Loss Tester Vaporization Losses Analyzer Loss on Heating Equipment

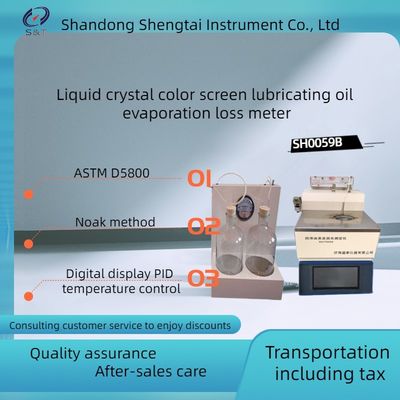

SH0059B liquid crystal color screen lubricating oil evaporation loss meter is developed and produced by our company according to the requirements of Chinese petrochemical industry standard SH/T 0059-1996 "Lubricating oil evaporation loss measurement method (Noak method)".ASTM D5800 DIN51581

It is suitable for lubricating oil and lubricating oil base oil to be heated for 1h under certain conditions, and the evaporated oil is carried out by air.

The evaporation loss of the sample was measured according to the mass difference of the sample before and after heating.

Lubricating Oil Evaporation Loss Tester (NOAK Volatility Test) ASTM D5800

ASTM D5800 Standard Test Method for Evaporation Loss of Lubricating Oils by the Noak Method



Noak Method Lube Oil Evaporation Loss Meter by ASTM D5800 DIN51581

Performance characteristics

1. Metal bath heating device, safe and environmentally friendly;

Wood alloy is added to the bath body for better heat transfer.

2, imported precision differential pressure gauge, to ensure accurate pressure.

3, Equipped with special vacuum suction system, precision needle valve pressure regulating system, imported needle valve, to ensure accurate flow regulation.

4, Intelligent liquid crystal touch screen, automatic temperature control, input quality, automatic calculation of evaporation loss, storage of calculation results, timing alarm

Technical Parameters

Working power supply AC (220±10%) V, 50Hz(customizable)
Temperature control mode Digital display PID temperature control
Temperature control range Normal temperature to 250 °C ± 0.1 °C
Heating method Metal bath heating
Pressure regulation Highly precise needle valve
Suction method Vacuum pump
Differential pressure measurement Differential pressure measurement
Appplicable test standard ASTM D5800, SH/T 0059-2010
Applicable standard SH/T0059 ASTM D5800 DIN51581
Instrument size: 380 * 360 * 450mm Weight: 28kg





Packing list

S/N Name Unit Quantity Remarks
1 Lubricating oil evaporation loss tester set 1
2 Evaporation crucible piece 1
3 Reamer piece 1
4 Small brush piece 1
5 Crucible frame piece 1
6 Crucible wrench piece 1
7 Temperature sensor piece 1
8 Suction pipe wrench piece 1
9 Wood alloy g 50
10 Slag scoop piece 1
11 power cord piece 1
12 instruction manual copy 1
13 Certificate warranty card copy 1

ASTM D5800 DIN51581 Lubricating Oil Evaporation Loss Tester Highly Precise 0

ASTM D5800 DIN51581 Lubricating Oil Evaporation Loss Tester Highly Precise 1

ASTM D5800 DIN51581 Lubricating Oil Evaporation Loss Tester Highly Precise 2
