xMODEL | SD7305 | Temperature Accuracy | ±0.1℃ |
---|---|---|---|
The Input Power | 1.5KW | Bath Stirring Motor | 15W |
Working Power Supply | AC 220V±10%, 50Hz | Temperature Control Range | Room Temperature ~ 99.9℃ |
Power Consumption Of The Whole Machine | No More Than 1200W | Temperature Control Heating Power | 1000W |
High Light | ASTM D1401 Water Separability Tester,Petroleum Water Separability Tester,Lubricating Oil Water Separability Tester |

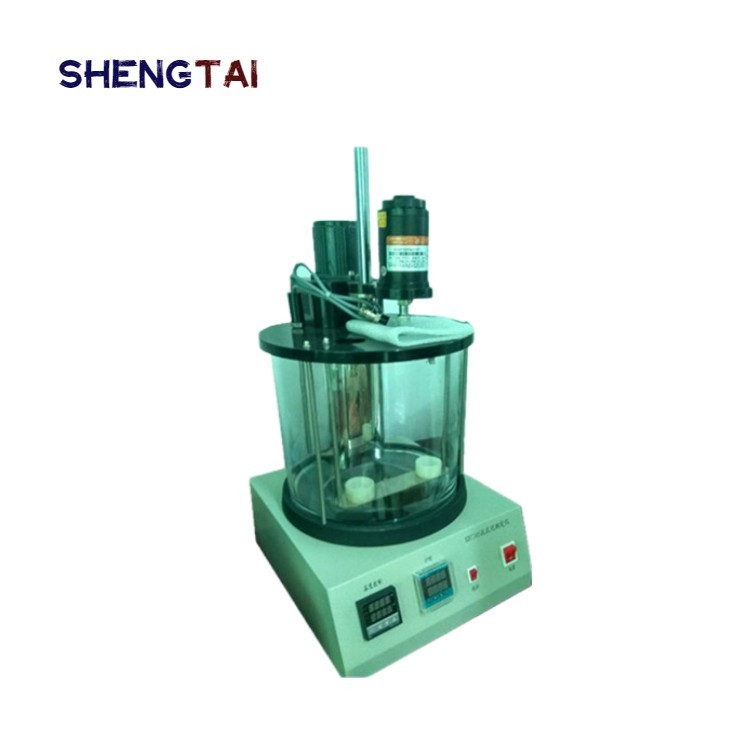

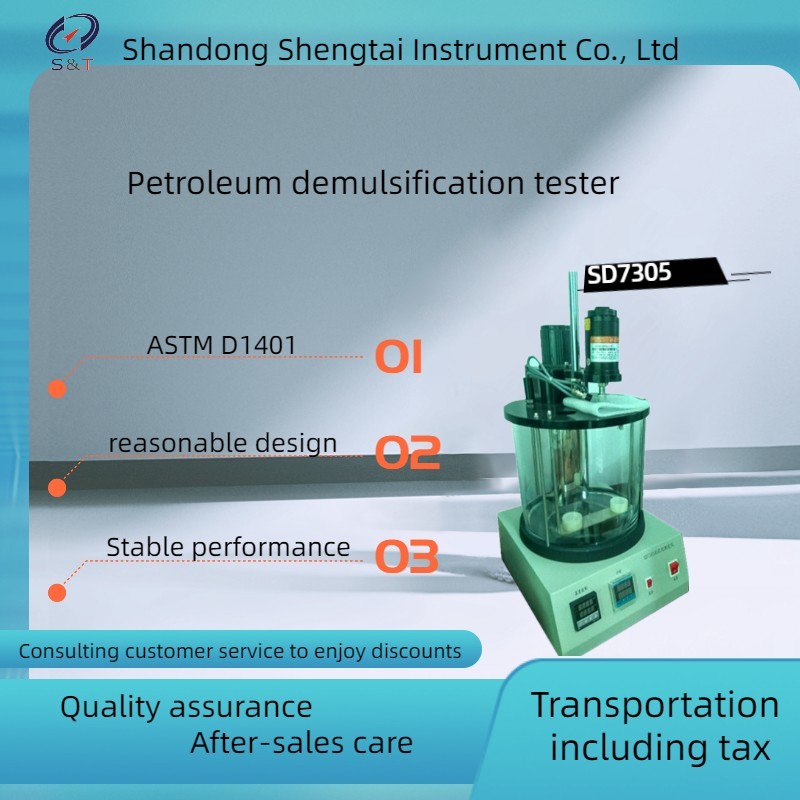

ASTM D1401 Water Separability Tester For Petroleum And Synthetic Fluids Simultaneous Determination Of 2 Samples
SD7305 Lubricating Oil Water Separability Tester is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T7305 "Determination of demulsification performance of petroleum and synthetic liquids". ASTM D1401
This instrument is suitable for measuring oils with a kinematic viscosity of 28.8~90mm²/s at 40℃. The test temperature is 54±1℃. It can also be used to determine oils with a kinematic viscosity greater than 90mm²/s at 40℃, but the test temperature is 82±1℃. It can be widely used in the fields of petroleum, electric power, chemical industry, colleges and universities, scientific research institutes and other units.
- ASTM D1401 Petroleum Oils and Synthetic Fluids Demulsibility Characteristics Water Separability Tester
- ASTM D1401 Standard Test Method For Water Separability Of Petroleum Oils And Synthetic Fluids
- ASTM D1401 Portable Laboratory Oil Water Demulsibility Analysis Equipment/Anti-emulsification Test Apparatus
- Lubricating Oil Water Separability Tester for Petroleum Oils and Synthetic Fluids
I. Main technical parameters and indicators
Temperature accuracy | ±0.1℃ |
The input power | 1.5KW |
Bath stirring motor | 15W |
Sample stirring motor | 1500 ± 15rpm |
The structure of the form | 2 hole |
Working power supply | AC 220V±10%, 50Hz |
Temperature control range | room temperature ~ 99.9℃ |
Power consumption of the whole machine | no more than 1200W |
Temperature control heating power | 1000W |
Relative humidity | ≤ 85% |
Ambient temperature | room temperature ~ 35℃ |
Time control range | 1 seconds to 9 minutes and 59 seconds |
Instrument size: 320 * 380 * 680mm weight:15kg |
II. Main technical features
1, the use of small cylinder table structure, with small volume, easy to operate, beautiful appearance and other advantages.
2, the bath adopts the motor automatic mixing, the temperature is uniform, the bathtub cover has two sample holes, can be placed at the same time two samples according to this test.
3, the sample stirring device is convenient to lift, stirring shaft in the test tube stirring concentricity is good, no shaking or touching the test tube wall.
Packing List
S/N | Name | Quantity | Unit | Note |
1 | host | 1 | set | |
2 | Thermometer 0 ~ 100℃ grade 1℃ | 1 | piece | |
3 | Temperature sensor | 1 | piece | |
4 | Test tube | 3 | piece | 1 the spare |
5 | power cord | 1 | piece | |
6 | fuse tube | 1 | piece | 10A |
7 | Operating instruction | 1 | copy | |
8 | Packing list | 1 | copy | |
9 | Certificate | 1 | copy |
