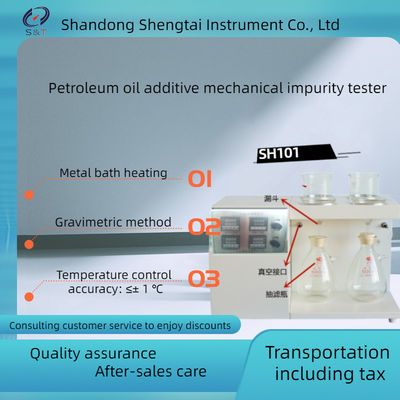

Determination of Mechanical Impurities Tester for Petroleum Products and Additives Lab Mechanical Impurity AnalyzerSH101

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH101
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH101 Power AC220V±10% 50Hz
Temperature Control Accuracy ≤± 1 ℃ Ambient Temperature ≤ 35 ℃
Relative Humidity ≤ 85% Heating Method Metal Bath Heating
Heating Range Room Temperature -100℃ Heating Power 2.0KW
High Light

Lubricating Oil Demulsibility Tester

,

GB/T8022 Demulsibility Tester

,

GB/T8022 Lubricating Oil Tester

Leave a Message
Product Description

SH101 mechanical impurity tester is designed according to the requirements of the national standard GB/T511 "Petroleum products and additives mechanical impurity determination method (weight method)". It is suitable for the determination of all kinds of light and heavy oil, lubricating oil and additives mechanical impurity content in petroleum products.

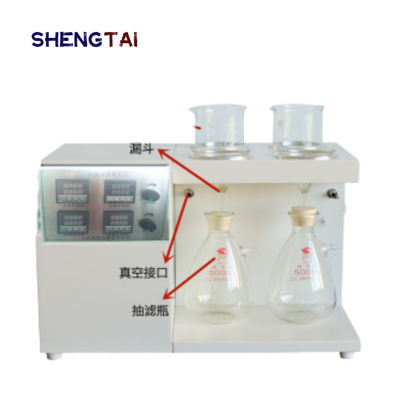

The water bath adopts glass bathtub, which can be loaded with 2 beakers, double control box, and can simultaneously carry out two high and low temperature filtration experiments

Scope of application: suitable for all kinds of light and heavy oil in petroleum products



Mechanical Impurities Tester For Petroleum Products And Additives

Petroleum Oil Additive Mechanical Impurity Tester

Petroleum Oil Additive Mechanical Tester Lab Test Instruments SH101

Petroleum Product Tester Mechanical Impurity Tester

Determination of Mechanical Impurities Tester for Petroleum Products and Additives Lab Mechanical Impurity Analyzer

SH101 Mechanical Impurity Tester of Petroleum Products and Additive by Weight Method



Petroleum Heavy Oil Lubricating Oil Mechanical Impurities Tester



Product Paramenters

No. Tech Indicator Description
1 Power

AC220V±10% 50Hz

(Can be changed to your country request)

2 Temperature control accuracy: ≤± 1 ℃.
3 Environmental requirements

Ambient temperature: ≤ 35 ℃.



Relative humidity: ≤ 85%.

4 Air pump self-contained air pump, without external air source
5 Heating method metal bath heating
6 Characteristics

♦Vacuum Suction Device

♦Easy to Operation

♦Testing Exactly

♦Result Reliable

7 Heating range

room temperature -100℃



8 Heating power 2.0KW
  Overall dimension: 480× 335×490mm Weight: 15kg



Packing List



S/N Name Quantity Unit Remarks
1 Host 1 set Built-in vacuum pump
3 Temperature sensor 1 piece In the built-in instrument
4 Suction bottle (500ml, including 9# white plug) 2 set
5 Glass funnel Ф (90) 2 piece
8 power cord 1 piece
10 Operating instruction 1 copy
11 packing list 1 copy
12 Certificate of approval 1 copy

Determination of Mechanical Impurities Tester for Petroleum Products and Additives Lab Mechanical Impurity AnalyzerSH101 0

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated

Determination of Mechanical Impurities Tester for Petroleum Products and Additives Lab Mechanical Impurity AnalyzerSH101 1
