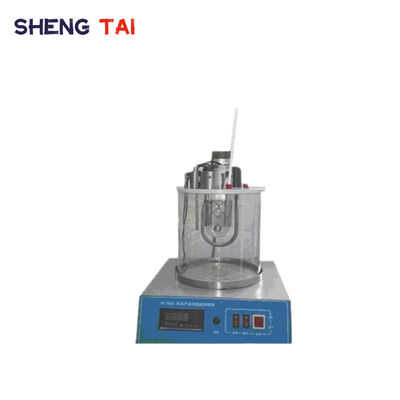

AC 220V gb/t262 astm d611 aniline point tester for petroleum products
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MODEL | SD262A | Temperature Control Range | Room Temperature To 200ºC |
|---|---|---|---|
| Stirring Speed | (0~1200)RPM | Working Power Supply | AC 220V ±10%, 50HZ |
| Dimension | 360mm×250mm×545mm | ||
| High Light | petroleum products aniline point tester,astm d611 aniline point tester,ac 220v aniline point tester |
||
Product Description

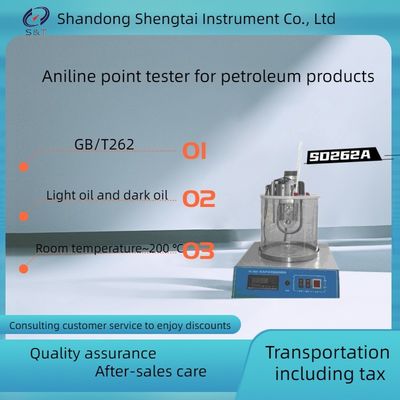

SD262A Aniline point tester for petroleum products is designed and manufactured according to the requirements stipulated in the national standard GB/T262 Aniline point tester for petroleum products. It is suitable for the determination of aniline point for light colored petroleum products and dark colored petroleum products.
Petroleum Products Aniline Point Tester
Aniline Point Tester of Petroleum Products and Hydrocarbon Solvents
Laboratory ASTM D611 Petroleum Products and Hydrocarbon Solvents Aniline Point Tester
Main technical features: aniline point meter oil analysis
1. The design of the instrument fully conforms to the requirements of GB/ T262 standard for the aniline point test of dark petroleum products and light petroleum products.
2. The instrument can measure the aniline point of heavy oil (dark petroleum products) and light oil (light petroleum products).
3, Temperature control system adopts digital display PID temperature control instrument, high temperature control precision, stable and reliable performance, easy to operate.
Technical parameters:
| Temperature Control Range: | Room Temperature to 200ºC |
| Temperature control accuracy: | ≤0.5℃ |
| Motor power | 6W |
| Heating power: | 2KW |
| Stirring speed : | (0~1200)RPM |
| Temperature range | Ambient to 200℃ |
| lighting power supply: | 5V |
| Saltwater tank capacity: | 15L |
| Working power supply: | AC 220V ±10%, 50HZ |
| Dimension | 360mm×250mm×545mm |
| No. | Name | Unit | Quantity | Remark |
| 1 | Main unit | Set | 1 | |
| 2 | Thermometer | Piece | 1 | 25 to 105 ºC, scale division is 0.2 ºC; |
| 3 | Thermometer (2#) | Piece | 1 | 90 to 170 ºC, scale division is 0.2 ºC; |
| 4 | U type tube (For heavy oil) | Piece | 1 | |
| 5 | Metal shield (For heavy oil) | Piece | 1 | |
| 6 | Illumination bulb assembly (For heavy oil) | Piece | 1 | |
| 7 | Seat 2 for test device (For heavy oil) | Piece | 1 | With stirring motor assembly |
| 8 | Glass test tube (For heavy oil and light oil) |
Piece | 2 | Φ25 |
| 9 | Glass casing tube (For light oil) | Piece | 1 | Φ40 |
| 10 | Cork 1# (For light oil) | Piece | 1 | Hole ofΦ25 |
| 11 | Cork 2# (For light oil) | Piece | 1 | With a hole ofΦ9 and hole for stirring rod |
| 12 | Cork 3# | Piece | 1 | |
| 13 | Stirring rod (For light oil) | Piece | 1 | |
| 14 | Silica gel stopper (8#) | Piece | 1 | |
| 15 | Seat 1 for testing device (For light oil) | Piece | 1 | |
| 16 | Stopping ring for thermometer (2#) | Piece | 2 | |
| 17 | Fuse (Φ5*20,15A) | Piece | 2 | |
| 18 | Power supply(250V 10A) | Piece | 1 |
(1) Operation Manual 1 piece
(2) Repair Guarantee 1 piece
(3) Quality Certificate 1 piece
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
| Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
| Est. Time(days) | 6 | 20 | 30 | To be negotiated |
