ASTM D2596 Determination of extreme pressure and wear resistance of lubricating greases - Four ball machine methodSH120

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH120
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH120 Working Range Of Axial Test Force 10~10000N
Relative Error Of The Test Force ±1% Relative Error Of The Friction Torque Is Shown ±3%
Spindle Frequency Conversion Speed Range 10~2000r/min Taper Of Spindle Inner Hole 1:7
High Light

Hardness Tester Lab Test Instruments

,

LCD Digital Display Hardness Tester

,

Pepper Grain Hardness Tester

Leave a Message
Product Description

SH120 automatic four ball machine grease wear resistance tester is in the form of sliding friction, under the condition of extremely high point contact pressure, mainly used to evaluate the bearing capacity of lubricants.

In practical application, different evaluation indexes can be selected according to different uses of lubricants.

automatic lubricant grease four ball wear testing machine



The four-ball friction testing machine can also do lubricant long-term wear resistance test, determination of friction coefficient, record friction and temperature curves.

The use of special accessories, can also carry out the end face friction and material

Computerized four-ball wear test machine, lubricant wear tester

Four Balls Friction Wear Testing Machine

Computer Control Servo Four Ball Friction Testing Machine

Computerized Four Ball Wear Tester / Wear Testing Machine

Four Ball Tester for Lubricating Grease Anti-Wear Testing

ASTM D4172 Four Ball Wear Scar Tester

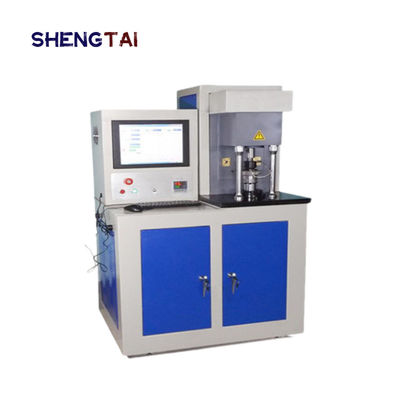

ASTM D2596 Determination of extreme pressure and wear resistance of lubricating greases - Four ball machine methodSH120 0

The machine design principle draw lever four ball machine load stability on the basis of the characteristics of the loading of the servo valve by servo motor, air spring, closed-loop control software to realize automatic reset, automatic loading, automatic stay, automatic test, automatic unloading and automatic measurement spot diameter and take pictures, a key operation, the data storage is a key save the test speed, small error, good repeatability, no pollution, no noise, high efficiency.

GB/ T12533-98, Lubricant extreme pressure performance determination method (four ball machine method);

GB3142-82, Lubricant bearing capacity determination method (four ball method);

SH/T0189-92, Lubricating oil wear resistance determination method (four ball machine method);

SH/T0202-92, Grease extreme pressure performance determination method (four ball machine method);

SH/T0204-92, Determination of wear resistance of grease (four-ball machine method).

Zbe34007-87 (wear resistance test method with four spheres)

automatic lubricant grease four ball wear testing machine



Product Paramenters

No. Tech Indicator and Description
1 Standard:GB/T3142,ASTM D2783,DIN 51350,JIS K2519,IP 239,Soviet Union9490-75
2 Power: AC220V±10% 50Hz (Can be changed to your country request)
3 Evaluate the Last Nonseizure load, Weld Point, LWI and Anti-wear Test for Lubricating Oil,Lubricating Grease and Cutting Solution.
4 Control the Quantity of Additives in the Lubricating Oil,Lubricating Grease and Cutting Solution.
5 Meet Requirements in ASTM, ISO, DIN, GB and SH/T.
6 Make the Wearing and Welding Tests in Same Tester.
7 Use the High Precision Servo Systems to Get Stepless Speeds.
8 Use Scar Test Method and Friction Coefficient Test Method to Achieve the Online Test.
9 Magnify the Scar From 38 to 254 Times by Shadow Electron Microscope.
10 Assemble Weights Lifter to Save Manpower.
11 Use the Industrial Computer and High-end Control Card to Achieve the High Accuracy Curve.
  Converted the Test Report as PDF Format to Save and Advertise Easily.

ASTM D2596 Determination of extreme pressure and wear resistance of lubricating greases - Four ball machine methodSH120 1



II. Main technical parameters:



no name Technical indicators
1 Test force
1.1 Working range of axial test force 10~10000N
1.2 relative error of the test force ±1%
1.3 When the test force is long, the indicating error is automatically maintained ±1%F.S
2 Friction torque
2.1 Range of friction torque measurement 0~13500N.mm
2.2 relative error of the friction torque is shown ±3%
3 Spindle speed
3.1 Spindle frequency conversion speed range 10~2000r/min
3.2 Spindle speed error ±5r/min
4 oil box stroke >45mm
5 Taper of spindle inner hole 1:7
6 Heating system of testing machine
6.1 Operating temperature range of heater At room temperature~250℃
6.2 Temperature control accuracy ≤2℃
7 Testing machine spindle control
7.1 Time display and control range of testing machine 1~99999s或1-99999min
7.2 Test machine revolution display and control range 999999999
7.3 Maximum torque output of the main motor of the tester 2.3N.m
8 Quantity of oil used in a test about10ml
9 Special standard steel ball diameter Ф12.7
10 Dimensions of the testing machine (length × width × height mm) about1160×750×1640
11 Net weight of testing machine about550kg
12 Rated power of testing machine 5.5KW




Accessories

Category S/N Name Quantity Remarks
product 1 Host 1set
2 Computer (LCD) 1set
3 Printer 1 set
4 15Jspeckle measuring microscope 1 set
Attachment 1 High temperature wear drop oil tank 1 set
2 Room temperature friction sub-oil tank 1 set
3 Four-ball special steel ball 1box
4 Oil retaining ring (high/low temperature) each1piece
5 Spring chuck 2 piece
6 Liju wheel 1 piece







Tool

1 Lifting screw 4 piece
2 Shock cushion iron 4 piece
3 Medical Tweezers (Medium) 1 piece
4 Medium lumbar disc 1 piece
5 Tank wrench (high/low) each1 piece
6 Tool 1 set
7 Spring chuck loading and unloading wrench 1 piece
8 Chuck hammer rod 1 piece
Technical condition 1 Product instruction manual 1 copy
2 software instruction manual 1 copy
3 Temperature controller instruction manual 1 copy
4 Certificate of qualification 1copy

ASTM D2596 Determination of extreme pressure and wear resistance of lubricating greases - Four ball machine methodSH120 2ASTM D2596 Determination of extreme pressure and wear resistance of lubricating greases - Four ball machine methodSH120 3ASTM D2596 Determination of extreme pressure and wear resistance of lubricating greases - Four ball machine methodSH120 4



Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

ASTM D2596 Determination of extreme pressure and wear resistance of lubricating greases - Four ball machine methodSH120 5

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

ASTM D2596 Determination of extreme pressure and wear resistance of lubricating greases - Four ball machine methodSH120 6

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
