Determination of cone penetration of SH269 lubricating grease and petroleum grease for 100000 shear testing machines

SH269 Grease Worker according to GB/T269-91 "Grease and petroleum grease cone penetration determination" test standard requirements in the specified test conditions, after the change of mechanical shear work to judge the mechanical stability of grease, to extend the work cone penetration or shear stability, the unit is 0.1mm.

Mechanical Grease Worker

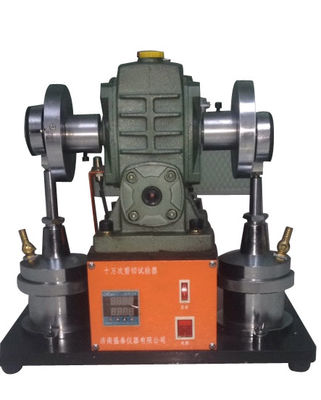

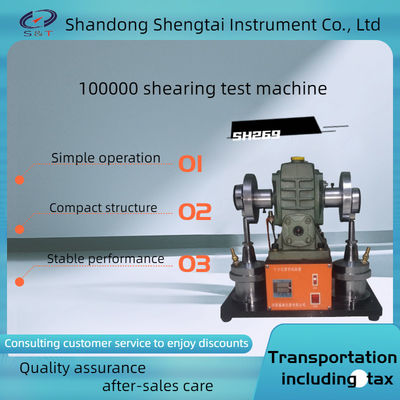

SH269 Mechanical Grease Worker (Double-Unit)

Double Unit Mechanical Grease Worker

Performance characteristics:

1 the use of motor drive reducer to achieve 60 times/min shear rate

Extended coning test and optional shear stability test

The display can display the cutting times by itself

4 Counter can count by itself

5 the whole instrument structure is compact and complete

A special cooling fan is installed behind the motor to ensure the continuous operation of the whole instrument

1) Motor: Horizontal single-phase capacitor starting motor speed: 1400 RPM

2) Coupling: plum shaped elastic coupling

3) Worm gear reducer: double outlet gear reducer with transmission ratio of 25:1 is adopted. A pair of eccentric mechanisms are installed on the cochlear shaft on both sides of the reducer.

4) Shear rate: 60 times/min

5) Maximum counting capacity: 99999

6) Thermometer: the use of bimetal thermometer, the range of 0 ~ 50℃, grading for 0.5℃

7) grease working stroke of the work: 67-71 - mm, orifice plate on each hole diameter: 6.35 + 0.13 Ф

8) Power supply: AC220, 50Hz

Packing list
