|Name:||SH0193C Automatic Rotating Oxygen Bomb Tester||Working Power Supply::||AC220V ± 10%; 50Hz.|
|Heating Pipe Power::||2500W.||Temperature Control Range::||Room Temperature ~ 200.0 ℃|
|The Temperature Control Point Can Be Set::||140.0 ℃, 150.0 ℃||Temperature Control Accuracy::||±0.1 ℃|
|Standard:||ASTM D2272||Key Words:||Rotary Oxygen Bomb Oxidation Stability Tester ASTM D2272|
|Product Name::||Oxidation Stability Tester For Lubricant Oils||Pressure Range::||0-1500KPa|
lubricating oil testing equipment,
lube oil analysis equipment

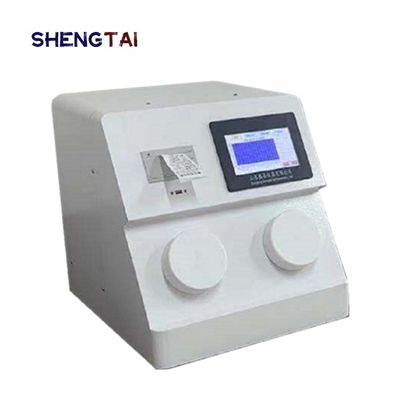

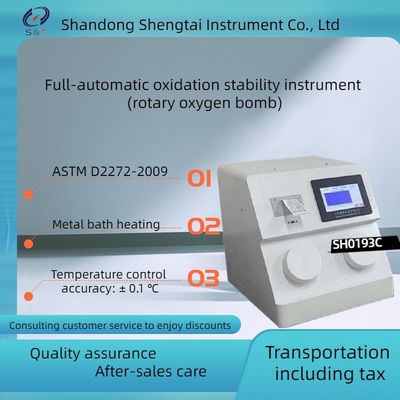

SH0193C Automatic rotating oxygen bomb tester is made and designed to the standard of the ASTMD2272-2009<<determination of oxidation stability of lubricating oil>>.Suitable for evaluating oxidation stability of new and used steam turbine oils with the same composition (base oil and additives).It is also used in the determination of oxidation stability of new oil, oil, steam turbine oil, lubricating oil, insulating oil and gasoline engine oil.
1.heating mode: metal bath heating.
2.The pressure detection, data recording, oxidation time calculation and automatic completion of the test can be carried out automatically.
3.Testing quantity:two holes
4.temperature sensor:Using a special PT100 temperature sensor
5.Display:7-inch color touch screen.
6.High degree of automation: automatic constant temperature, automatic oxygen filling, automatic detection of leakage, automatic recording of test data and real-time display of curves, automatic judgment of inflection point of test, cutting off heating after automatic test.
7.Micro printer: panel thermal sensitivity
1. Power supply: AC220V ±10.
2, heating pipe power: 2500W.
3.The measuring range of pressure sensor is 0 ~ 1.6 MPA, the accuracy is ±2 ‰.
4, temperature control range: room temperature ~ 200.0 ℃
5, the temperature control point can be set: 140.0 ℃, 150.0 ℃.
6, temperature control accuracy: ±0.1 ℃.
7, rotational speed of rotating mechanism: 100 ±5 r / min.
8.The angle between the oxygen bomb and the horizontal plane is 30 °.
9. Instrument size: 600mm * 400mm * 400mm (high aspect ratio)
Main Technology Parameters
(Can be changed to your country request)
|3||Color LCD||8 Inches|
|4||Printing Machine||Thermistor Type|
|7||Oil Bath Temperature Control Point||140℃,150℃|
|8||Oil Bath Temperature Control Accuracy||±0.1℃|
♦Single Chip Microcomputer Control
♦Color LCD Touch Screen
♦metal Bath Control System
♦Easy to Operation
Shandong Shengtai Instrument Co., Ltd. specializes in R & D and promotion of experimental testing instruments and industrial testing
instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service.
Its products are widely used in food, flour, grain and oil, feed, electricity, petroleum Chemical, industrial oil, aerospace, coal and other industries.
For more than ten years, Shengtai Instruments has always adhered to the tenet of "first-class service, customer first" and "reasonable price,
honesty and trustworthiness" as its business policy. Adhere to technical innovation, a technical team with rich instrument knowledge and an
experienced and attentive after-sales service team.
As one of the largest and competitive enterprises in the industry,
Shengtai Instruments has achieved major technological breakthroughs in model improvement,
function expansion and the development of intelligent control systems by virtue of its technical research and development strength,
professional technical knowledge and innovative design concepts. .
Shengtai Instruments continues to provide customers with excellent quality,
good service and the most cost-effective products in the continuous development.
It has been trusted and supported by our customers. Our products are sold well in China and exported to Australia,
Nigeria, Canada, and South Korea Waiting for more than fifty countries and regions.
Packaging and transportation
