ASTM D2386, ASTM D1177 Engine Coolant Freezing Point Determination/Jet Fuel Ice Point Tester

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH128
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Standard ASTM D2386, ASTM D1177 Model SH128
Working Cold Trough Double Vacuum Glass Bat Cold Trough Temperature +40℃~-70℃
Temperature Accuracy ±0.1℃ Sample Stirring Synchronous Geared Motor, 60 Times/min
Applicable Standards SH/T0090-91、GB/T 2430、ASTM D2386、ASTM D1177
High Light

agriculture lab equipment


agronomy lab instruments

Leave a Message
Product Description

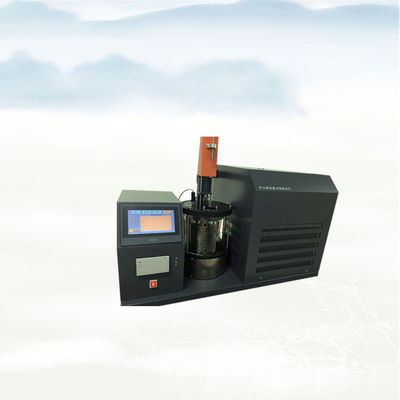

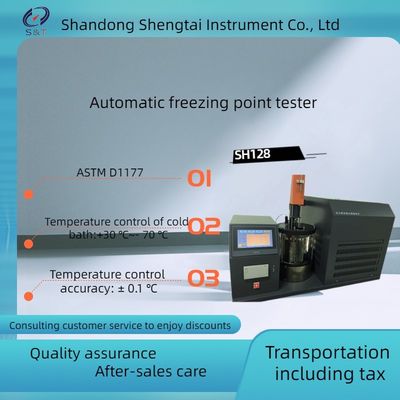

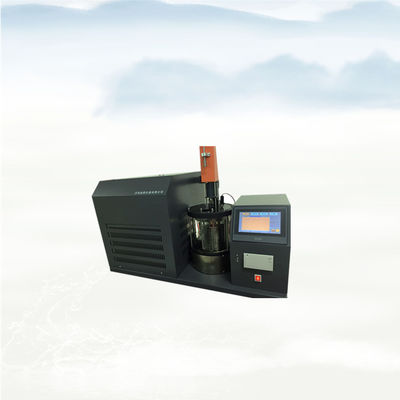

    SH128 automatic antifreeze freezing point tester/ jet fuel freezing point tester is based on the national petrochemical industry standard SH/T0090-91 "engine coolant freezing point determination method" and ASTM D1177.

Suitable for measuring freezing point of engine coolant and concentrated liquid.

Instrument features: embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;

ASTM D2386, ASTM D1177 Engine Coolant Freezing Point Determination/Jet Fuel Ice Point Tester 0

ASTM D2386, ASTM D1177 Engine Coolant Freezing Point Determination/Jet Fuel Ice Point Tester

Color touch screen;

The test results can be stored;

You can view historical data;

Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.




working cold tank double vacuum glass bath.
cold tank temperature control +30℃ ~ -70℃.
temperature control accuracy ±0.1℃.
Bath liquid stirring automatic stirring motor, power 6W, 1200r/min
Refrigeration system imported overlapping refrigeration compressor.
sample mixing synchronous reducer motor, 1 times/second.
Ambient temperature ≤30℃


ASTM D2386, ASTM D1177 Engine Coolant Freezing Point Determination/Jet Fuel Ice Point Tester 1



Technical Parameters:
Power supply: AC 220V±10%, 50Hz
Working cold trough: Double vacuum glass bath
Cold trough temperature: +30℃~-70℃.(customized+20℃~-80℃)
Temperature accuracy: ±0.5℃
Bath mixing: Automatic mixing by mixing motor,power :6W,1200r/min
Cooling system: Imported cascade refrigeration compressor.
Sample stirring: Synchronous geared motor, 60 times/min.
Ambient temperature: ≤30℃
Relative humidity: About 1500W
Total power consumption: less than 2000W
Applicable standards: SH/T0090-91,GB/T 2430,ASTM D2386,ASTM D1177


Technical parameters

1, working power supply: AC220V±10%;

50 hz.

2, working cold tank: double vacuum glass bath.

3, cold tank temperature control: +30℃ ~ -70℃.

(customized +20℃ ~ -80℃)

4, temperature control accuracy: ±0.1℃.

5, Bath liquid stirring: automatic stirring motor, power 6W, 1200r/min.

6, Refrigeration system: imported overlapping refrigeration compressor.

7, sample mixing: synchronous reducer motor, 1 times/second.

8. Ambient temperature: ≤30℃.

9, relative humidity: ≤85%.

10. Power consumption of the whole machine: about 1500W.
