Rotary Oxygen Bomb Calorimeter Astmd2272-2009 RPVOT Rotating Pressure Vessel Method Oxidation Stability Tester

Place of Origin CHINA
Brand Name shengtai Instrument
Certification ISO9001
Model Number SH0193C
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Heating Tube Power 2500W. Power Supply AC220V±10%
Weight 30kg Instrument Size 600mm*400mm*400mm
Keyword Oxygen Bomb Instrument Model SH0193C
Standard Astmd2272 Key Words ASTM D2272 Automatic Rotating Oxygen Bomb Tester For Gear Oil Hydraulic
High Light

lube oil analysis equipment

,

oil moisture meter

Leave a Message
Product Description

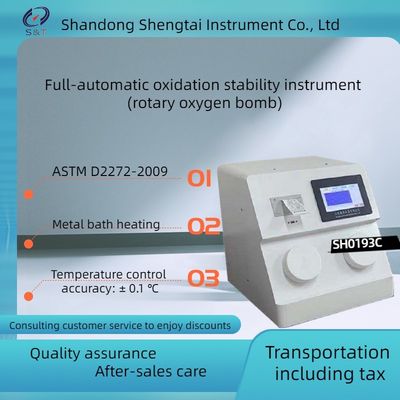

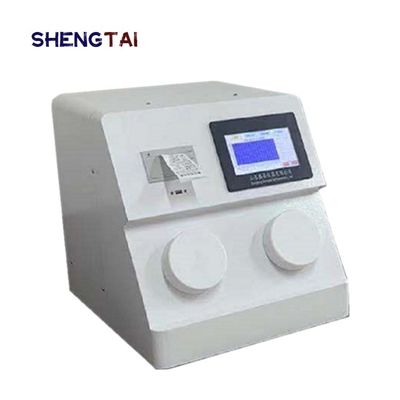

SH0193C automatic rotating oxygen bomb instrument (metal bath)



SH0193C automatic rotary oxygen bomb tester is designed and manufactured according to national standard astmd2272-2009 "determination of lubricating oil oxidation stability" metal bath standard.
Suitable for evaluating the oxidation stability of new and in-service turbine oils of the same composition (base oils and additives).
It can also be used to evaluate the new mineral insulating oil containing 2, 6- tert-butylp-cresol as a rapid evaluation method of its oxidation stability.

SH0193C automatic rotating oxygen bomb tester is designed and manufactured according to the national standard ASTMD2272-2009 "Lubricating oil oxidation stability determination method" metal bath standard.

Automatic Hydraulic Oil rotating oxygen bomb tester

ASTM D2272 automatic rotating oxygen bomb tester for gear oil hydraulic oil

RPVOT Rotating Pressure Vessel Method Oxidation Stability Tester astm d2272

Suitable for assessing the oxidation stability of new and in-service turbine oils with the same composition (base oils and additives).

Rotary Oxygen Bomb Calorimeter Astmd2272-2009 RPVOT Rotating Pressure Vessel Method Oxidation Stability Tester 0

It can also be used to evaluate new mineral insulating oils containing 2, 6- ditert-butylp-cresol, as a quick method to evaluate their oxidation stability.

The test results are used to test the new mineral insulating oil containing 2, 6- dit-butyl p-cresol or 2, 6- dit-butyl phenol or both, and the performance of each batch of oil can be continuously controlled.

1 Power supply AC220V±10%
2 Heating tube power 2500W
3 Range for pressure sensor (0~1.6)MPa,accuracy:±2‰
4 Temperature controll range for oil bath Room temperature~200.0℃, continuously adjustable.150.0℃ in common use
5 Temperature control accuracy ±0.1℃
6 Test sample Two-bomb design, can do two samples at one time. Convenient to do parallel test
7 Rotation speed (100±5)r/min
8 Included angle between oxygen bomb and water level 30°
9 Bath mode Metal bath
10 Dimension 550mm×580mm×650mm
11 Net weight About 45Kg



The performance characteristics

L, for new oil, in oil, steam turbine oil, lubricating oil, insulation oil and automobile gasoline engine oil, etc.

2. The metal measuring pool reduces the unpleasant smell emitted by the medium oil during the test, and eliminates the possible danger due to the long time of the experiment.

3. It can automatically detect the pressure, record the data, calculate the oxidation time and finish the test automatically.

4, metal bath heating free of liquid medium.

5, ventilation is simple, no need to be placed in the fume hood, waste gas and odor can be simply discharged through the plastic pipe.

6, can control the operation of 2 groups of tests at most

7, sample temperature sensor assembly: can measure the sample temperature in the process of testing

8, Instrument display: 7 inch color touch screen, beautiful interface, easy to operate

9, high degree of automation: automatic constant temperature, automatic oxygen filling, automatic determination of leakage, automatic recording of test data and real-time display of the curve, automatic determination of the inflection point of the test, automatic test after cutting off the heating.

10, micro printer: surface plate type thermal sensitivity.

11. Imported PT100 temperature sensor is adopted

Technical parameters:

1, power supply: AC220V±10%.

2. Heating tube power: 2500W.

3, pressure sensor range: 0 ~ 1.6Mpa, accuracy: + 2‰.

4, temperature control range: temperature control range: room temperature ~ 200.0℃

5, temperature control point can be set: 140.0℃, 150.0℃.

6, temperature control accuracy: ±0.1℃.

7, rotating mechanism speed: 100±5r/min.

8. The Angle between oxygen bomb and horizontal plane: 30°.

9. Result output: At the same time, it can be equipped with U disk output function, which can be output to PC for long-term storage

Rotary Oxygen Bomb Calorimeter Astmd2272-2009 RPVOT Rotating Pressure Vessel Method Oxidation Stability Tester 1

10. Output format: the output format of the result USB flash disk is CSV or Excel.

★11. Data extension: laser printer interface, can be linked to HP1108 laser printer (optional)

★12. Data protection: with date password setting function.

13 standard printing: standard micro printer automatic measurement automatic thermal printing

★14. Remote upgrade: with TCP network transmission function, can be later software remote upgrade

★15. Data management: can be connected to the LIMIS system(optional)

★16. Data memory: microcomputer instrument memory can be expanded to 16G.

17 instrument size: 600mm*400mm*400mm (length, width and height)

18. Weight: 30kg
