ASTM D1120 Brake Fluid / Engine Coolants Equilibrium Reflux Boiling Point Tester SH0089

Place of Origin CHINA
Brand Name shengtai Instrument
Certification ISO9001
Model Number SH0089
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH0089 Heating Mode Electric Heating-jacket
Total Power 500W Power Supply AC220V 50HZ
Thermometer The Temperature Range Of -5℃-300℃, The Minimum Index Value Of 1.0℃ Cooling Method Water Circulation
High Light

lubricating oil testing equipment


oil moisture meter

Leave a Message
Product Description

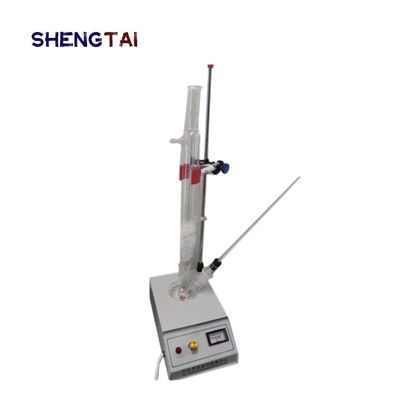

SH0089 engine coolant boiling point tester is to determine the equilibrium boiling point of engine coolant, suitable for the determination of diluted or concentrated engine coolant.


Boiling Point of Engine Coolants Tester

ASTM D1120 Brake Fluid / Engine Coolants Equilibrium Reflux Boiling Point Tester

ASTM D1120 Equilibrium Boiling Point Tester for Engine Coolants

ASTM D1120 Brake Fluid / Engine Coolants Equilibrium Reflux Boiling Point Tester

ASTM D1120 Equilibrium Boiling Point Test Equipment for Engine Coolants

ASTM D 1120 Engine Coolants Brake Fluid Boiling Point Detector

Boiling Point of Engine Coolants Apparatus


performance characteristics

Electric heating sleeve heating, no open fire, safe and environmental protection;

Integral structure, easy to operate;

Precision potentiometer to adjust the heating rate;

Convenient access to control box;

Tap water circulation cooling;

High power solid state voltage regulator control heater;

The surface is treated with electrostatic spray, easy to clean;


Technical parameters


1 Applicable standards

ASTM D1120, SH/T0089 or SH/T0430


2 Heating mode electric heating-jacket
3 Refrigeration mode tap water circulation
4 Temperature control mode solid state voltage regulator (SSVD)
5 Total power 500W
6 Cooling method

water circulation


7 Power supply AC220V 50HZ
8 Reflux condensing pipe

200mm long, in line with SH/T0089 standard requirements.


9 Thermometer the temperature range of -5℃-300℃, the minimum index value of 1.0℃
10 Distilled flask made of hard glass and heat resistant above 500 degrees
Instrument size: 320 * 290 * 360mm Weight: 15kg
Package size: 450 * 390 * 420mm Weight: 18kg

With a thermometer socket, in line with the requirements of SH/T0089.


ASTM D1120 Brake Fluid / Engine Coolants Equilibrium Reflux Boiling Point Tester SH0089 0

Packing list


S/N Name Quantity Unit Remarks
1 Instrument host (electric heating device) 1 set
2 Condenser tube holder 1 piece
3 Condenser tube 1 piece
4 Round bottom flask 1 piece
5 power cord 1 piece
6 Certificate warranty card 1 copy
7 instruction manual 1 copy
