Product Details:
Place of Origin: china
Brand Name: shandongshengtai
Model Number: SH103B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 5-8work days
Payment Terms: T/T,

40W Lubricating Oil And Grease Antifreeze Testing Instruments Moisture Meter

Description
Name: Automatic Grease Moisture Meter Voltage: AC 220V ± 10% 50Hz ± 10%
Power Consumption: <40W Dimensions: 300mm × 290mm × 200mm
High Light:

lubricating oil testing equipment

,

oil moisture meter

Automatic grease moisture meter



Product Details

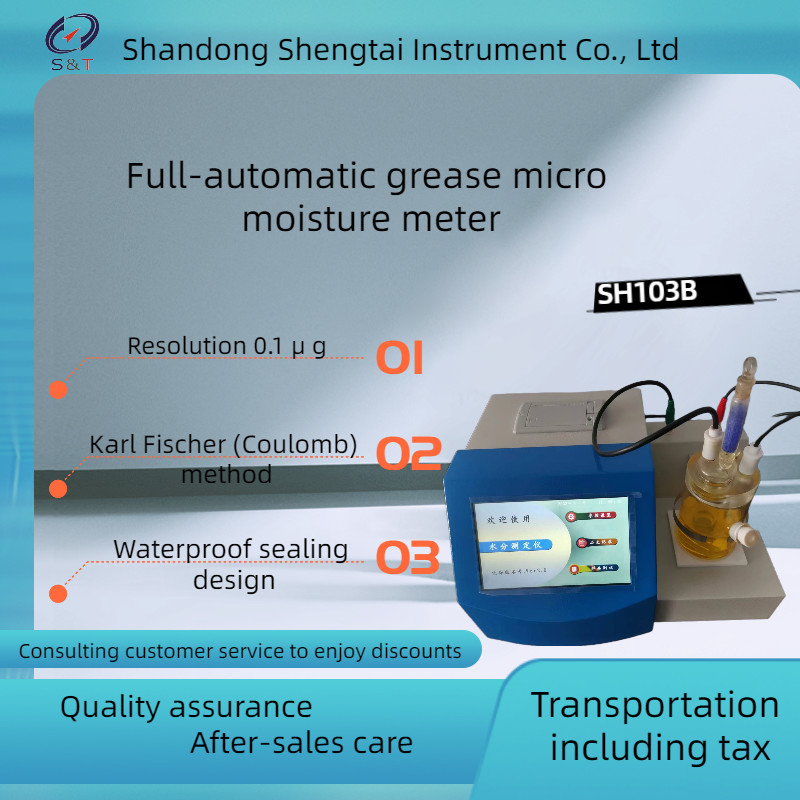

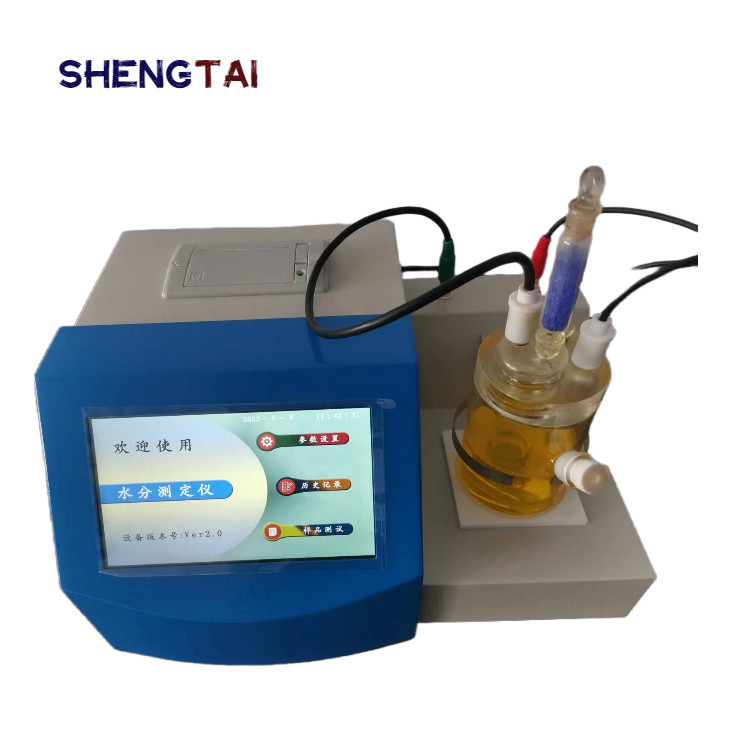

The SH103B automatic lubricating grease trace moisture analyzer meets the requirements of GB / T 7600, GB / T 6283, SH / T 0246, SH / T 0255 and other method standards. The Karl Fischer (Coulomb) method was used to determine the content of trace moisture in liquids with different properties. It has the advantages of high measurement accuracy, fast speed, stable and reliable measurement data, etc. It is widely used in petroleum, chemical, electric power, environmental protection, medicine and other departments. Rapid determination of alcohols, oils, lipids, ethers, esters, acids, alkanes, benzenes, amines, organic solvents, pesticides, phenols, pharmaceutical raw materials and other chemical, petroleum, pharmaceutical, pesticide and other products Moisture content.

Features
Using 64-bit embedded microprocessor as the main control core, embedded mini operating system l
Constant current detection, high accuracy, fast measurement speed, with background compensation function, stable and reliable
Double circuit balance titration, the test result error is smaller, the sensitivity is higher l
The electrolytic cell adopts the latest waterproof sealing design, the balance time is short, and the electrolyte usage time is longer l
The main unit has the functions of automatic drainage and liquid addition, which greatly improves the working environment l
Real-time electrolysis curve graph, observe reagent status at any time l
Large-screen touch LCD display, simple operation and friendly interface
Full numeric keyboard, support 6 calculation formulas, data calculation is convenient and fast l
Built-in large-capacity storage, it is more convenient to record and query measurement data
l Technical parameters

Titration method

Electric titration

Electrolytic current

0 ~ 400mA

Measuring range

3μg ~ 100mg (water)

Resolution

0.1μg

Precision

3μg water ± 20%, 10μg water ± 10%, 100μg water ± 5%, 100μg water above ± 0.5% (not including injection error)

Display method

Chinese LCD

Printing machine

Thermal type, 36 characters, Chinese character output

Ambient temperature

5 ℃ ~ 40 ℃

voltage

AC 220V ± 10% 50Hz ± 10%

Power consumption

<40W

Dimensions

300mm × 290mm × 200mm

Weight

3.7kg
