LPG Vapor Pressure Tester 0-2.5MPa ASTM D1267 GB/T6602

Place of Origin CHINA
Brand Name Shandong Shengtai Instruments Co., Ltd.
Certification GB/T6602 ASTM D1267
Model Number SH6602
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC220V ± 10% 50Hz Heating Power 1.8KW
Mixing Motor Power 15W Temp Control Accuracy ± 0.1 ℃
Packaging Size 48 * 45 * 75cm Weight 50kg
Highlight

LPG vapor pressure tester ASTM D1267

,

LPG pressure tester 0-2.5MPa

,

petroleum testing instrument GB/T6602

Leave a Message
Product Description
Liquefied Petroleum Vapor Pressure Tester LPG Method 0-2.5MPa 50kg ASTM D1267
Product Specifications
Attribute Value
Power supply AC220V ± 10% 50Hz
Heating power 1.8KW
Mixing motor power 15W
Temp control accuracy ± 0.1 ℃
Packaging size 48 * 45 * 75cm
Weight 50kg
Product Description

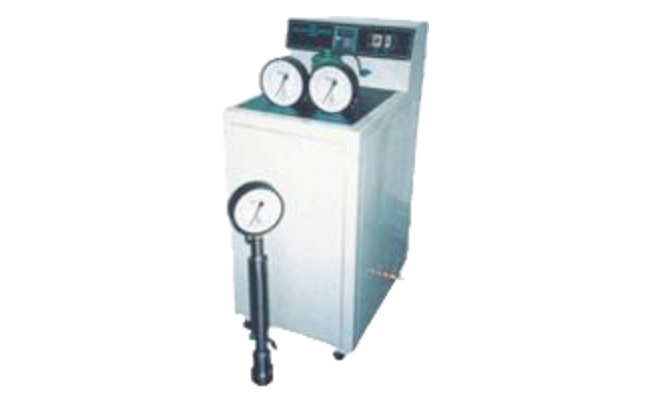

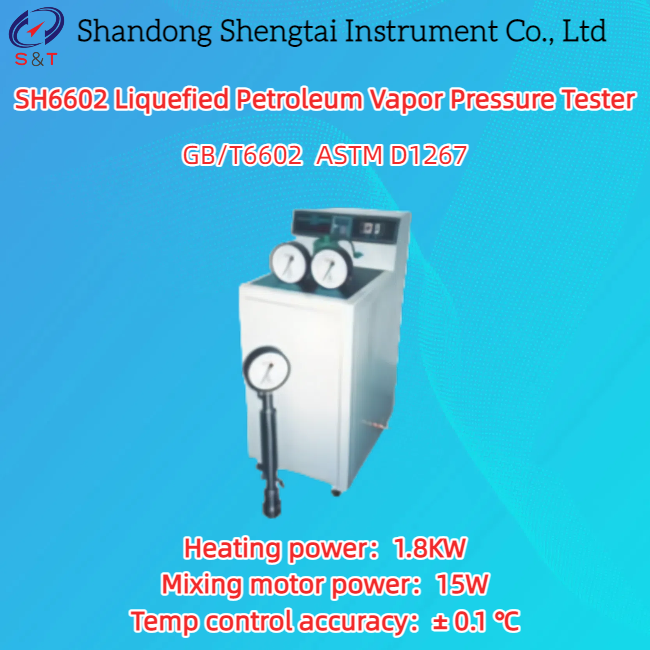

SH6602 Liquefied Petroleum Vapor Pressure Tester

The liquefied petroleum gas vapor pressure tester is designed and manufactured according to GB/T6602 "Liquefied Petroleum Gas Vapor Pressure Determination Method". Suitable for liquefied petroleum gas with a boiling point higher than 0 ℃, a volume fraction of hydrocarbons less than 5%, and a vapor not exceeding 1550Kpa at 37.8 ℃.

Standard: GB/T6602 ASTM D1267

Technical Parameters
  • Power supply: AC220V ± 10% 50Hz
  • Heating power: 1.8KW
  • Mixing motor power: 15W
  • Temperature control accuracy: ± 0.1 ℃
  • Pressure gauge: Circular pointer pressure gauge 0~2.5MPa
  • Temperature control range: room temperature~70 ℃
  • Packaging size: 48 * 45 * 75cm
  • Weight: 50kg
LPG Vapor Pressure Tester 0-2.5MPa ASTM D1267 GB/T6602 0
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

  • The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity
  • The materials and main components provided meet the technical requirements specified in the technical documentation
  • The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
  • We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees
  • Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
  • After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee
Packaging and Delivery
  • Packaging of goods: standard wooden or cardboard boxes
  • Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners
LPG Vapor Pressure Tester 0-2.5MPa ASTM D1267 GB/T6602 1
Standard Accessories
Number Name Quantity Unit Note
1 Vapor pressure tester 1 Unit
2 Vapor pressure oxygen bomb 2 Set
3 Pressure gauge 2 Piece
4 Mercury thermometer 1 Piece
5 Instructions 1 Copy
6 Packing list 1 Copy
7 Certificate of Conformity Warranty Card 1 Copy
