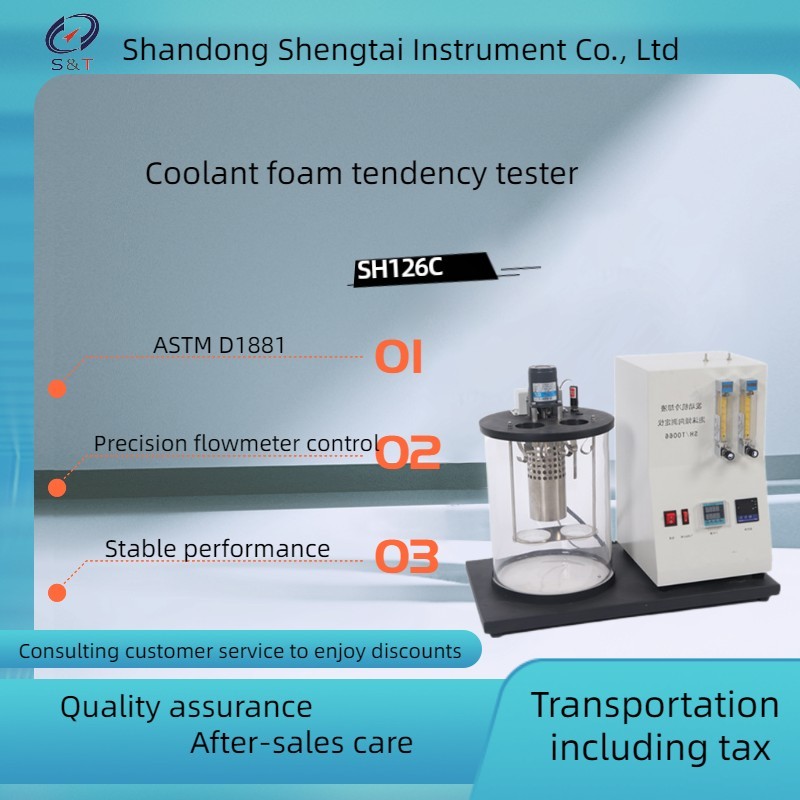

Coolant Foam Propensity Tester ASTM D1881 Engine Coolant Bubble Propensity Meter

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH126C
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH126C Working Unit 2 Holes Working Simultaneously
Pressure Display Pressure Meter Pressure Adjustment Through Flow Meter
Stirring Method Electric Stirring Heating Method Electric Tube Heating
Power Supply AC220V ± 10%, 50Hz Heating Power 2000W
High Light

Coolant Foam Propensity Tester


Propensity Tester ASTM D1881

Leave a Message
Product Description

SH126C engine coolant foam tendency tester is designed according to the requirements of the People's Republic of China petrochemical industry standard SH/T0066 "engine cooling foam determination method", suitable for the determination of diluted or concentrated engine coolant foam according to the test method of SH/T0066 standard.

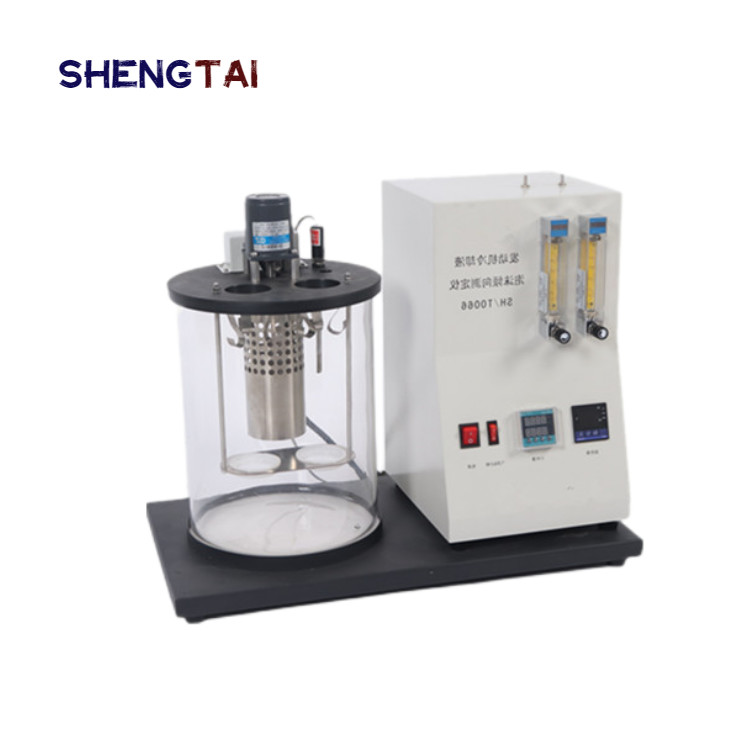

The instrument is composed of a glass bath, an electric control box, an electric heater, an intelligent digital temperature controller, a microcontroller, two 500ml heat-resistant glass measuring cylinders, two gas flow meters and two groups of gas diffusion.

Instrument structure and technical conditions in accordance with the standard requirements of ASTM D1881


Engine Coolants Foaming Tendencies Analyzer

Engine Coolants Analysis ASTM D1881 Foaming Tendency Analyzer

Coolant Foam Propensity Tester ASTM D1881 Engine Coolant Bubble Propensity Meter

ASTM D1881 Foam Propensity Tester Engine Coolant Foaming Tendency Test Machine

ASTM D1881 Foaming Tendencies Of Engine Coolants In Glassware


Technical parameters

1. Working power supply: AC220V±10%, 50 hz;

2, heating power: 2000W;

3, air flow: precision flow meter control

4, Temperature control range: room temperature ~ 99.9℃

5, timing mode: automatic timing, can be set by themselves

6, ambient temperature: -10 ~ +40℃;

7, relative humidity: ≤85%;

Specifications of Foaming Tendency Tester:

Applicable standards SH/T0066 ASTM D1881
Working unit 2 holes working simultaneously
Pressure display pressure meter
Pressure adjustment Through flow meter
Stirring method Electric stirring
Heating method Electric tube heating
Power supply AC220V ± 10%, 50Hz
Heating power 2000W
Measuring range room temperature ~ 99.9 °C
Ambient temperature -10~ +40ºC
Relative humidity 85%
Instrument size: 350 * 280 * 360mm Weight: 25kg
Package size: 600 * 480 * 580mm Weight: 31kg


Packing list
S/N Name specification Unit Quantity Remarks
1 Host   set 1
2 Fuse tube 10A piece 2
3 Measuring cylinder 500mL piece 2
4 Rubber plug, airway and aerator head   piece 2
5 Thermometer for foam properties 50-100℃ piece 1
6 Power cord 220V piece 1
7 Specification   copy 1
8 Warranty card   copy 1
