Pellet Durability index Tester feed Lab Test Instruments PDI tester Double box operation

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xInstrumental Function | Pellet Durability Index | Timing Accuracy | 1s |
---|---|---|---|
Time Range | 1-9999s | Sample Quantity Per Box | 500g |
Outer Package Size | 520x400x470mm | Power Distribution | 180W 1450r / Min |
Highlight | lab test equipment,laboratory testing equipment |

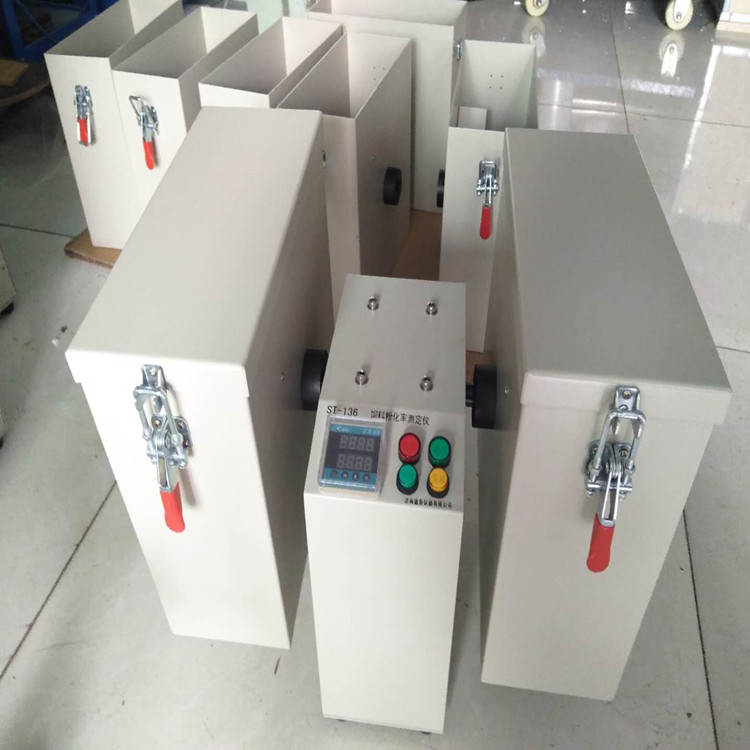

ST136 pellet durability Index tester (pellet particle pulverization rate tester) is a special instrument for testing PDI value of pellet feed.The pellet pellet produced by the pellet factory must have enough durability to withstand the impact of the transportation process, reduce the fine powder, and meet the customer's appearance requirements for the pellet feed. PDI tester
Pellet durability Index tester is one of the most important indicators to reflect the quality of pellet feed. It is used to measure the relative ability of pellet crushing resistance in the process of conveying and handling of pellet pellet products
The higher the PDI value, the stronger the crushing resistance, the better the particle quality and the higher the pellet utilization.
Main technical parameter PDI tester
Number of rotating boxes | 2 |
Rotation speed | 50 rpm |
Number of turns | 500 revolutions / time |
Usage time | 10 minutes |
Time adjustment range | 0-10000s |
Power distribution | 180W 1450r / min |
Sample quantity per box | 500g |
Outer package size | 520x400x470mm |
Main technical parameter PDI tester
Number of rotating boxes | 2 |
Rotation speed | 50 rpm |
Number of turns | 500 revolutions / time |
Usage time | 10 minutes |
Time adjustment range | 0-10000s |
Power distribution | 180W 1450r / min |
Sample quantity per box | 500g |
Outer package size | 520x400x470mm |
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Brush | 1 | piece | |
4 | power cord | 1 | piece | |
5 | Instructions | 1 | copy | |
6 |
Packing list
|
1 | copy | |
7 | Certificate warranty card | 1 | copy |
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
Est. Time(days) | 6 | 20 | 30 | To be negotiated |
