ISO 13736 Automatic Abel Closed Cup Flash Point Tester FOR Petroleum Products

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH21789
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH21789 Applicable Standards GB/T21789, ISO13736 IP170
Test Range -30℃ ~ 80℃ Or 0-120℃ (external Circulating Cold Water Bath) Temperature Detection Platinum Resistance (PT100)
Display Mode 6.4 "TFT LCD Cooling Method Compressor Cycle Refrigeration
Heating Rate 1℃/min Display Accuracy 0.1℃
Mixing Speed 0.5r/s(30r/min)
High Light

Automatic Abel closed flash point tester


ISO 13736 Flash Point Tester

Leave a Message
Product Description

ISO 13736 Automatic Abel Closed Cup Flash Point Tester Petroleum Products With A Flash Point Between - 30 ℃ And 70 ℃

SH21789 Automatic Abel closed flash point tester is designed and manufactured according to the requirements of the national standard GB/21789 "Determination of flash point of petroleum products and other liquids (Abel closed cup method)" and ISO13736.

SH21789A Automatic Abel Closed Cup Flash Point Tester

Automatic Closed up Flash Point Testing Machine Oil Flash Point Tester Digital Abel Flash Point Apparatus

ISO13736 Automatic Abel Closed Cup Flash Point Tester

Automatic Abel Closed Cup Flash Point Tester

Automatic Abel Closed Cup Flash Point Tester ISO 13736

It is suitable for the determination of petroleum products and other liquids in the range of -30℃ ~ 80℃.

Instrument features: embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;

Abel Fully Automatic Type Closing Cup Flash Point Tester of Diesel Oil

Color touch screen;

The test results can be stored;

You can view historical data;

Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.


II. Main technical parameters

Applicable standards

GB/T21789, ISO13736 IP170


Test range -30℃ ~ 80℃ or 0-120℃ (external circulating cold water bath)
Temperature detection

platinum resistance (PT100)


Display mode

6.4 "TFT LCD


Cooling method

compressor cycle refrigeration


Heating rate



Display accuracy



Mixing speed



Host power consumption



Low temperature circulating refrigerator



Power supply

AC 220V±10%, 50Hz


Ambient temperature


Relative humidity
  1. 0%RH


Abel flash point size: 490*450*580mm Weight: 40kg


Storage: 199 sets of historical data can be stored for easy query;

★ Result output: at the same time can be equipped with U disk output function, output to PC for long-term storage (optional)

★ Output format: the output format of the U disk is CSV or EXCEL. (optional)

★ Data protection: with date password setting function. (optional)

Standard printing: standard micro printer automatic measurement automatic thermal printing

★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade (optional)

★ Data management: can be connected to LIMS system (optional)

★ Data memory: microcomputer instrument memory can be expanded to 16G.

Ignition mode: electronic ignition or gas ignition

Packing list

S/N NAME UNIT Quantity remarks
1 host set 1
2 Fuse piece 1
3 Test cup piece 1
4 Test cup cover set 1
5 temperature sensor piece 1
6 Directions copy 1
7 Packing list copy 1
8 Certificate warranty card copy 1

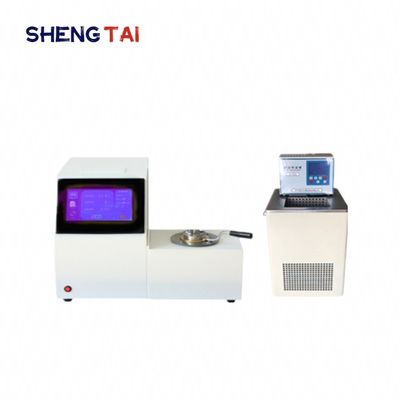

ISO 13736 Automatic Abel Closed Cup Flash Point Tester FOR Petroleum Products 0ISO 13736 Automatic Abel Closed Cup Flash Point Tester FOR Petroleum Products 1

ISO 13736 Automatic Abel Closed Cup Flash Point Tester FOR Petroleum Products 2
