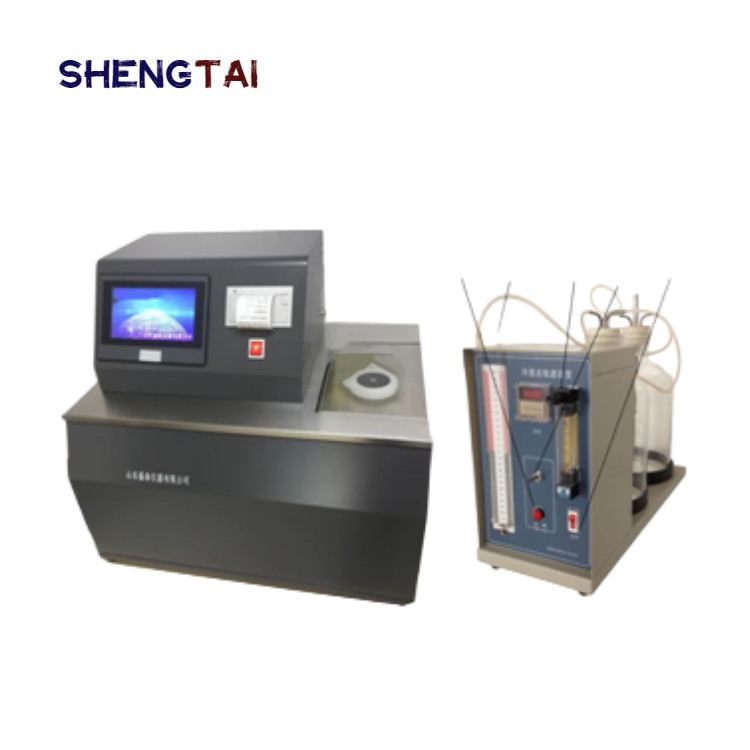

Automatic Freezing Point Measuring Instrument With Single Hole Compressor Refrigeration

Automatic Freezing Point, Pour Point Cold Filter Point Measuring Instrument With Single Hole Compressor Refrigeration

SH0248CQ of solidifying point, pour point and cold filtration point tester is based on the national standard GB/T510 "solidifying point measurement of oil products and SH/T 0248 and GB/T3535 as the basis, adopt modern advanced technology, mechanical, optical, electronic and computer technology into an organic whole, can be done automatically condensation point, pour point and cold filtration point of petroleum products testing, the instrument adopts photoelectric detection technology, automatic inclined glass tube method, imported compressor refrigeration system to ensure that meet the requirements of refrigeration and depth.

meet the standards: GB/T510, SH/T 0248, GB/T3535

1. Upgraded to 7-inch TFT color LCD display;

2. Refrigeration mode: fully enclosed and efficient refrigeration compressor.

3. Cold trap for test: 2.

4. Detection method: spectral detection

5. After upgrade, 199 groups of historical data can be stored for easy query.

6, standard micro printer automatic measurement automatic thermal printing (standard)

7. After the completion of the test, if there is no personnel to operate, set the automatic closing time of the refrigerator within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument.

8, test interval: cold filter point 1℃ freezing point 2℃.

9, temperature sensor: imported PT 100 probe

10, refrigeration medium: metal bath

11. Data can be equipped with U disk output to PC for long-term data storage.

★12, with date password setting function.

13, standard micro printer automatic measurement automatic thermal printing

★14, with TCP network transmission function

★15, can be uploaded and connected to LIMIS system

With laser printer interface, can be connected to HP printer, print A4 original experiment report (optional)

Technical parameters:

Meet the standards: GB/T510, SH/T 0248, GB/T3535

Temperature measurement range: -70 ~ 50℃;

Pressure measurement range: 0 ~ 200.0 kPa;

Resolution 1 pa

Number of test samples: 2 routes

Temperature measuring element: PT100

Refrigeration mode: compressor refrigeration

Cooling method: air cooling

Printing: dot matrix printing of 20 Chinese characters

Display: 128×64 Chinese characters display

Storage: 199 sets of historical data can be stored for easy query;

Result output: at the same time can be equipped with U disk output function, output to the PC for long-term storage

Output format: The output format of the result USB flash disk is CSV or EXCEL.

★ Data extension: laser printer interface, can be linked to HP1108 laser printer (optional).

★ Data protection: with date password setting function.

Standard printing: standard micro printer automatic measurement automatic thermal printing

★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade

★ Data management: can be connected to LIMIS system

★ Data memory: microcomputer instrument memory can be expanded to 16G.
