ASTM D1816 Insulating Oil Breakdown Transformer Oil Withstand Voltage Tester Test AC0 ～ 80KV

  • ASTM D1816 Insulating Oil Breakdown Transformer Oil Withstand Voltage Tester Test AC0 ～ 80KV
  • ASTM D1816 Insulating Oil Breakdown Transformer Oil Withstand Voltage Tester Test AC0 ～ 80KV
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd
Certification GB/T 507 ASTM D877 ASTM D1816 IEC 156
Model Number SH125A
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Equipment Capacity 0.5KVA Booster Capacity 1.5kVA
Limited Current 5mA Output Test Voltage 0 ～ 80KV
Environment Temp 10℃ ～ 35℃ Relative Humidity ≤ 75%
Highlight

ASTM D1816 insulating oil tester

,

transformer oil withstand voltage tester

,

lube oil testing equipment AC 80KV
Leave a Message
Product Description

SH125A Oil Dielectric Strength Tester voltage breakdown tester

Standard: GB/T 507 ASTM D877 ASTM D1816 IEC 156

SH125A Oil Dielectric Strength Tester is immersion oil electric performance is one of the routine test, high voltage electrical equipment according to the ministry of the revised provisions in the power coefficient test method for oil, insulating oil dielectric strength tester is developed, the product is dry type aluminum alloy shell with light weight, easy to carry, applicable to power coefficient and users in the field use, this product compared with similar products, has the advantages of simple operation, high efficiency and measurement accuracy, is the ideal testing instrument test personnel.

Technical performance

Test range AC0 ～ 80KV
Equipment capacity 0.5KVA
Booster capacity 1.5kVA
Limited current 5mA
Input voltage 200V 50Hz
Output test voltage 0 ～ 80KV
Voltage meter indication error ±5%
Boosting speed 2KV/s ± 20%
Voltage regulation speed 2KV/S ± 10%
Reservation settings 1 ～ 9 times
Static time 0 ～ 100min39s
Mixing time 0 ～ 1min39s
Arc ignition time not more than 20ms
Measurement accuracy 1%
Environment temp 10℃ ～ 35℃
Relative humidity ≤ 75%
Oil cup gap 2.5mm (diameter of oil cup plug gauge)
Power supply voltage AC220V ± 10% 50HZ ± 5%
Instrument size 440 * 340 * 345mm
Instrument weight 28kg
Packaging size 630 * 390 * 410mm

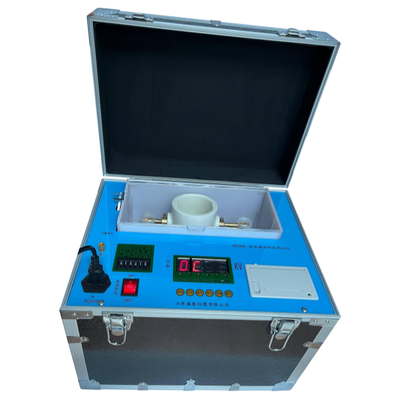

ASTM D1816 Insulating Oil Breakdown Transformer Oil Withstand Voltage Tester Test AC0 ～ 80KV 0

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Special oil cup 1 Set
3 Power cord 1 Copy
4 Instruction manual 1 Copy
5 Packing list 1 Copy
6 Certificate warranty card 1 Copy



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

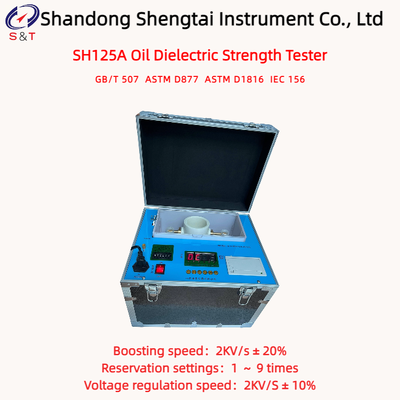

ASTM D1816 Insulating Oil Breakdown Transformer Oil Withstand Voltage Tester Test AC0 ～ 80KV 1
