Hydraulic Oil Lubricating Oil Foam Tendency And Foam Stability Tester ASTM D892

  • Hydraulic Oil Lubricating Oil Foam Tendency And Foam Stability Tester ASTM D892
  • Hydraulic Oil Lubricating Oil Foam Tendency And Foam Stability Tester ASTM D892
Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH126 B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH126B Working Power Supply AC220V±10%, 50Hz
Temperature Control Mode LCD Display Temperature Control Range 5~99.9℃ With Refrigerators
Temperature Control Accuracy ±0.1℃ Temperature Measuring Element Platinum Resistance (PT100)
The Number Of Tests Double Bathtub, Can Do 2 Samples At The Same Time The Test Cylinder Specification 1000mL (special Cylinder)
High Light

SH126B liquid crystal foam tester

,

ASTM D892 Foam Stability Tester

,

SH126B foam tester
Leave a Message
Product Description

ASTMD892 Hydraulic Oil Lubricating Oil Foam Tendency And Foam Stability Tester

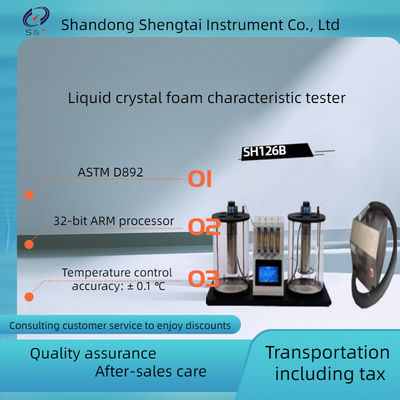

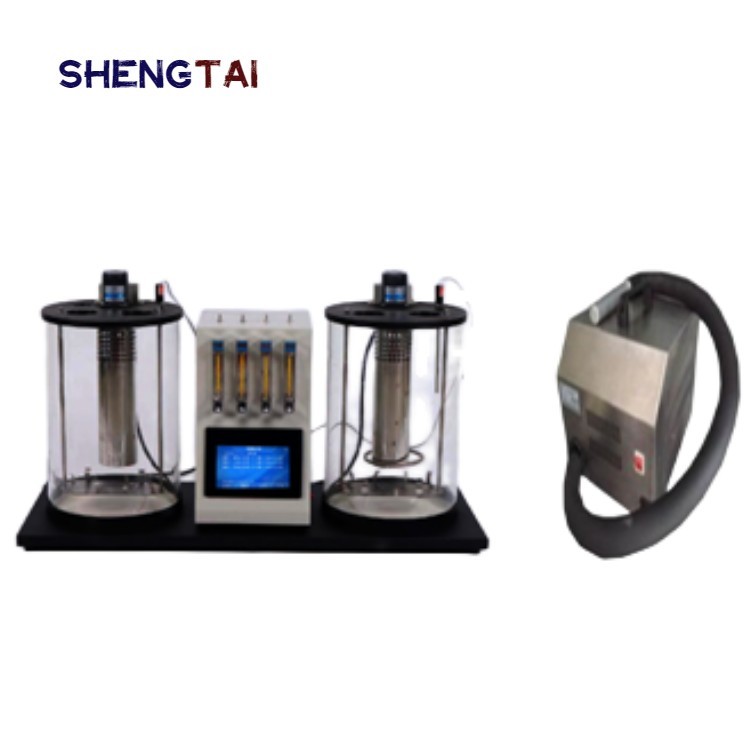

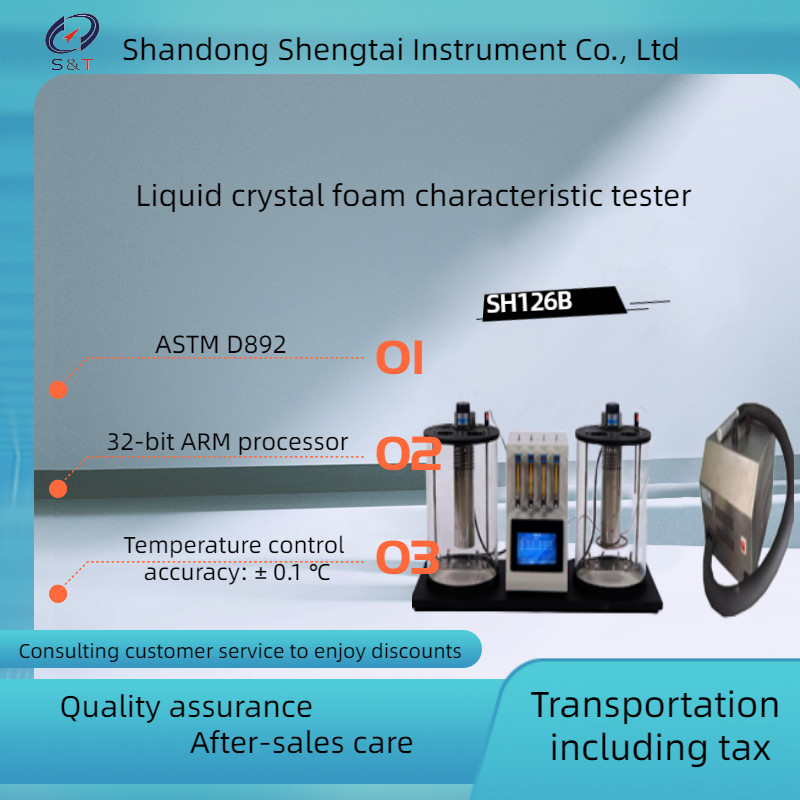

SH126B liquid crystal foam tester is designed according to GB/T12579-90 "Lubricating Foam Performance Determination Method" and ASTMD892. It is used to determine the foam characteristics of engine lubricating oil, gear oil, hydraulic oil and other oil products to evaluate the foam tendency of lubricating oil and the degree of foam stability.

The instrument is controlled by dynamic temperature control, automatic timing, air source and gas flow centralized control, 32-bit ARM processor control, high-definition color touch screen display, PID temperature control and setting technology has the advantages of accurate test temperature and high constant temperature accuracy.

The instrument can be operated according to the test method of GB/T12579-90 "Determination of Lubricating Oil Foam Performance".Foam Testing Equipment Electronic for Lubricating Oils ASTM D892 & GB/T12579 Bubble Tester

Used for testing fuel oil, lubricating oil, gear oil, hydraulic oil and other oil products.

II. Technical parameters

working power supply AC220V±10%, 50Hz
temperature control mode LCD display
Temperature control range 5~99.9℃ with refrigerators

Temperature control accuracy:



±0.1℃;


temperature measuring element platinum resistance (PT100)
the number of tests double bathtub, can do 2 samples at the same time
the test cylinder specification 1000mL (special cylinder)
diffuser air permeability at 2.4kPa (250mmH2O) pressure of 3000 ~ 6000mL/min;
timing accuracy ±0.05 seconds
heating power heater power: 2500W (93.5℃ bathtub) 800W (24℃ bathtub)
timing accuracy 0.01%+0.05 seconds (at 20℃)
ambient temperature -10~+40℃
relative humidity ≤85%
Power consumption of the whole machine no more than 3000W.
Gas diffuser diameter: 25.4mm.
Instrument size: 680 * 380 * 550mm Weight: 35kg



Packing list

S/N Name Quantity unit Remarks
1 Host 1 set
2 Portable refrigerating plant 1 set
3 Measuring cylinder 4 piece
4 Foam head 4 piece
5 Gauge plug 4 piece
6 Rubber hose 2 meter
7 Thermometer 1 piece
8 Power cord 1 piece
9 Fuse tube 1 piece 10A
10 Instruction manual 1 copy
11 Packing list 1 copy
12 Certificate 1 copy

Hydraulic Oil Lubricating Oil Foam Tendency And Foam Stability Tester ASTM D892 0Hydraulic Oil Lubricating Oil Foam Tendency And Foam Stability Tester ASTM D892 1Hydraulic Oil Lubricating Oil Foam Tendency And Foam Stability Tester ASTM D892 2
