ASTM D445 Four Holes Full-Auto Kinematic Viscosity For Gear Oil RT ～ 100℃ 14L Bath

  • ASTM D445 Four Holes Full-Auto Kinematic Viscosity For Gear Oil RT ～ 100℃ 14L Bath
  • ASTM D445 Four Holes Full-Auto Kinematic Viscosity For Gear Oil RT ～ 100℃ 14L Bath
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd
Certification GB/T 265 ASTM D445
Model Number SH112CL
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Temp Measurement Range RT ～ 100℃ Display Accuracy 0.01℃
Display Mode Human Body Sensor Touch Screen Bath Volume 14L
Operating Power Supply AC 220V±10% 50Hz Instrument Dimensions 850*380*550mm
Highlight

ASTM D445 kinematic viscosity tester

,

full-auto gear oil viscosity bath

,

14L lube oil testing equipment
Leave a Message
Product Description

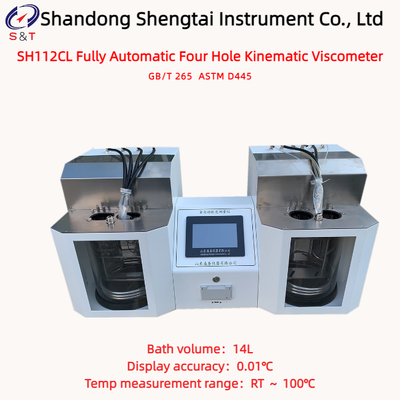

SH112CL Fully Automatic Four Hole Kinematic Viscometer
The SH112CL fully automatic four-hole kinematic viscosity tester is designed and manufactured in accordance with the requirements specified in the China National Standard GB/T 265 "Methods for Determination of Kinematic Viscosity and Calculation of Dynamic Viscosity of Petroleum Products" and is suitable for measuring the viscosity of light-colored petroleum products such as lubricating oil.
Kinematic viscosity: It is the product of the capillary constant of a calibrated glass capillary viscometer and the time it takes for a certain volume of liquid to flow under gravity through the viscometer at a constant temperature. This product represents the kinematic viscosity of the liquid measured at that temperature.
Technical Performance Parameters:
● Equipped with LED soft lighting for even illumination, facilitating observation.

StandardGB/T 265 ASTM D445
Temp measurement rangeRT ～ 100℃
Display accuracy0.01℃
Display modeHuman body sensor touch screen
Bath volume14L
Number of test holes2 holes on each side, enabling asynchronous measurement of two types of specimens simultaneously. Double-layer insulation; auxiliary heating automatic
Temp SettingAdjustable for both left and right bathtubs
Timing Range0.0s ～ 99,999s
Timing accuracy±0.1s
Detection methodPt100 stainless steel probe with built-in temp compensation
Result OutputIt can also be equipped with a USB output function to transfer data to a PC for long-term storage
PrinterEquipped with a micro printer
Total power consumptionnot more than 2000W
Operating power supplyAC 220V±10% 50Hz
Instrument dimensions850*380*550mm
Instrument weight38kg

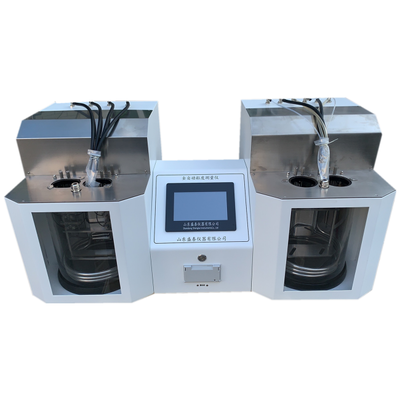

ASTM D445 Four Holes Full-Auto Kinematic Viscosity For Gear Oil RT ～ 100℃ 14L Bath 0
Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. If the instrument is updated, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

ASTM D445 Four Holes Full-Auto Kinematic Viscosity For Gear Oil RT ～ 100℃ 14L Bath 1
