ASTM D445 Auto Kinematic Viscometer For Gear Oil Measure 0.4 ～ 30000mm²/S Glass Capillary

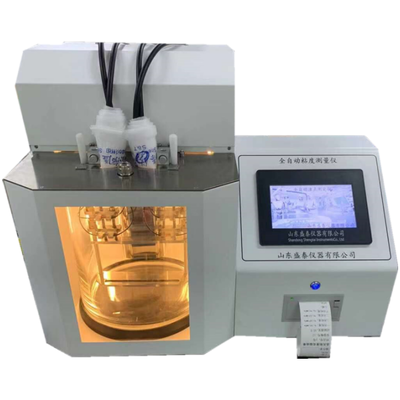

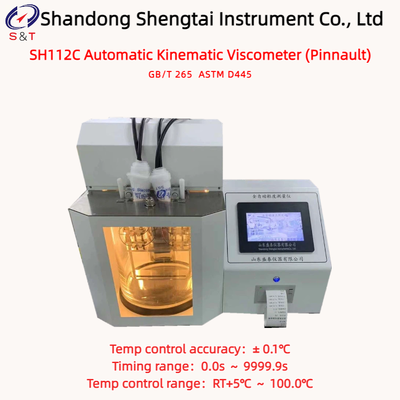

SH112C Automatic Kinematic Viscometer (Pinnault)

SH112C fully automatic Proctor kinematic viscometer is suitable for measuring the kinematic viscosity of transparent and opaque liquids with the same accuracy, including crude oil, light fuel oil, lubricating oil, quenching oil, additives, and silicone oil, according to GB/T 265 and ASTM D445-2024 standards. It is also suitable for measuring the kinematic viscosity of samples with high wax content or samples containing insoluble components at room temperature.

Fully automatic constant temperature, viscosity testing, cleaning, and drying viscometer, no need for personnel to operate randomly. After the operator sets out, they can leave the site, and the instrument can automatically complete all tasks.

Kinematic viscosity: Determine the gravity flow under a certain volume model at a constant temperature, and use a calibrated glass capillary viscometer to measure the viscosity of the liquid. The constant of the capillary viscometer flows over time, and the kinematic temperature of the product is used to measure the viscosity of the liquid.

The working principle is to put the sample into the selected capillary viscometer, the capillary immersed in a constant temperature bath. The sample is inhaled to the calibration position. When the sample flows to the upper calibration position, the instrument starts to record the time. When the sample flows to the calibration position, the recording time stops. The instrument will automatically calculate the kinematic viscosity of the sample.

Main features

● Large size color touch screen, resolution up to 1024*600.

● Adopt 32-bit microprocessor as the control core, independently developed graphical man-machine interface for operation.

● The main parts and electronic components of the instrument are imported devices with good stability.

● The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying and other functions.

● Double cylinder body, fast and stable temperature control, heating rate ＞5℃ / min.

● Equipped with LED soft light, uniform filling light, easy to observe.

● With viscometer parameter storage function.

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

Technical parameters

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Select the aperture of the viscosity tube based on the viscosity value

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
