ASTM D5293 CCS Cold Cranking Simulator Engine Oil Dynamic Viscosity Tester SH110

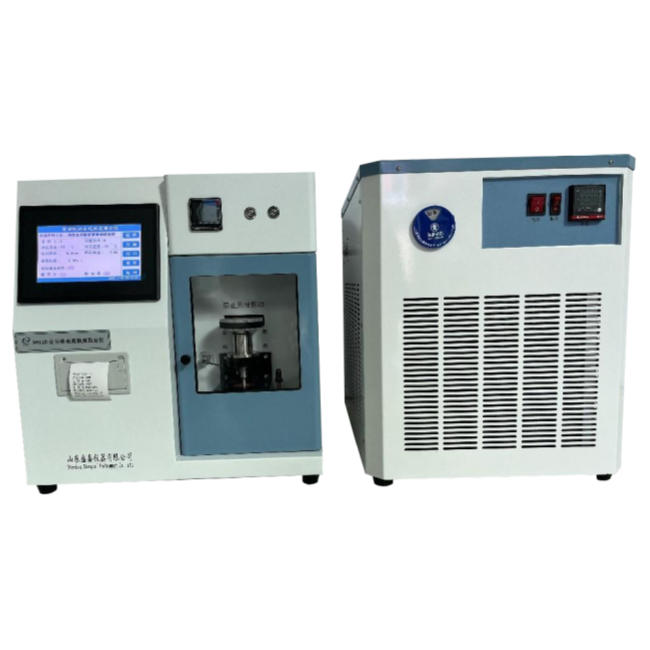

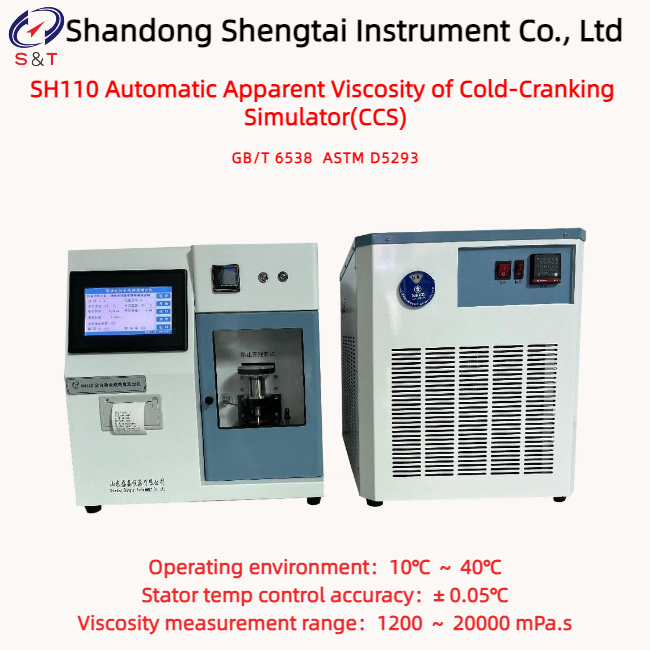

SH110 Automatic Apparent Viscosity of Cold-Cranking Simulator(CCS)

The SH110 Fully Automatic Apparent Viscosity Meter (CCS) complies with technical standards such as GB/T 6538-2022 "Determination of Apparent Viscosity of Engine Oil—Cold Start Simulator Method" and ASTM D5293 "Standard Test Method for Measuring Engine Oil Surface Viscosity Using a Cold Start Simulator Between -5°C and -30°C." It is suitable for testing the low-temperature dynamic viscosity indicators of engine oil. The instrument can measure the apparent viscosity of oil products at temperatures ranging from -35°C to -5°C in 5°C intervals. It features advantages such as high measurement accuracy, excellent repeatability, stable performance, and simple operation.

Suitable for measuring the apparent viscosity of engine oil under conditions of shear stress approximately 1200–20000 mPa·s and shear rate 105–104 s−1, at temperatures ranging from -5 to -35°C. The instrument features fully automatic temperature control, allowing users to conveniently and quickly perform testing and analysis by operating on a color touchscreen.

Apparent viscosity: Apparent viscosity is a physical concept, referring to the quotient obtained by dividing the corresponding shear stress by the shear rate under a certain velocity gradient. It serves only as a relative and approximate comparison of fluidity. True viscosity should be a part of irreversible viscous flow, while apparent viscosity also includes the reversible high-elastic deformation component, so apparent viscosity is generally less than true viscosity. Apparent viscosity can be further divided into shear viscosity and extensional viscosity. Apparent viscosity may be greater or less than true viscosity. In the context of engine oil, it can predict failures caused by insufficient pumping performance of the engine oil.

Instrument features:

● The instrument adopts advanced microcomputer control, touch screen human-computer interaction, and automation of calculation, display, and printing;

● Operating interface language: selectable settings (Chinese);

● Imported Omron temperature controller; Imported compressor cascade refrigeration with large cooling capacity;

● Automatically detect speed, fine tune knob to control current, and reduce manual operation errors;

● Adopting customized motor drive with high precision; Can store and print experimental results;

● Automatically calculate results after calibration with standard oil; Adopting embedded operating system, stable and reliable operation;

● At the end of the experiment, the machine will automatically shut down and heat up to facilitate rapid cleaning;

● The system can reach the set temperature according to a non-linear curve based on the user's set temperature;

● Users can first calibrate the instrument using standard oil, and after calibration, describe the relationship between viscosity and motor speed;

● Storage method: The experimental results can store 1000 sets of historical data for easy retrieval

● The instrument has a calibration function, which can conveniently and quickly calibrate various parts of the system;

Technical parameters

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
