Crude Oil Semi-Automatic Density Tester 0 ～ 100℃ USB Drive Output ASTM D1298

  • Crude Oil Semi-Automatic Density Tester 0 ～ 100℃ USB Drive Output ASTM D1298
  • Crude Oil Semi-Automatic Density Tester 0 ～ 100℃ USB Drive Output ASTM D1298
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd.
Certification GB/T 1884, ASTM D1298, GB/T 2281, GB 36170, SH0068, GB/T 4472
Model Number SH102F
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Temp Measurement Range 0 ～ 100℃ Or (customized -60℃ ～ 80℃) Temp Control 0.1℃
Test Tube Capacity 500ml Cooling Method Compressor Cooling
Whole Power Not Exceeding 2000W Working Power Supply AC220V ± 10% 50Hz
Highlight

Crude Oil Density Tester USB Output

,

Semi-Automatic Crude Oil Tester ASTM D1298

,

Crude Oil Testing Equipment 0-100℃
Leave a Message
Product Description

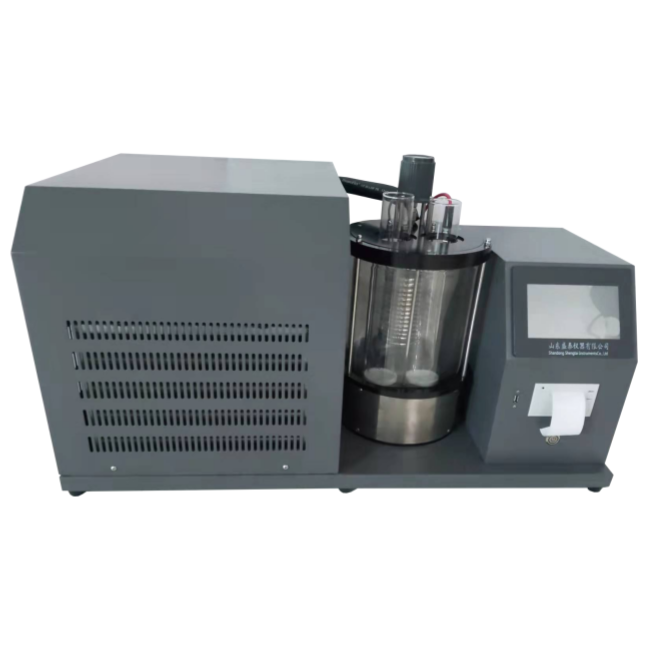

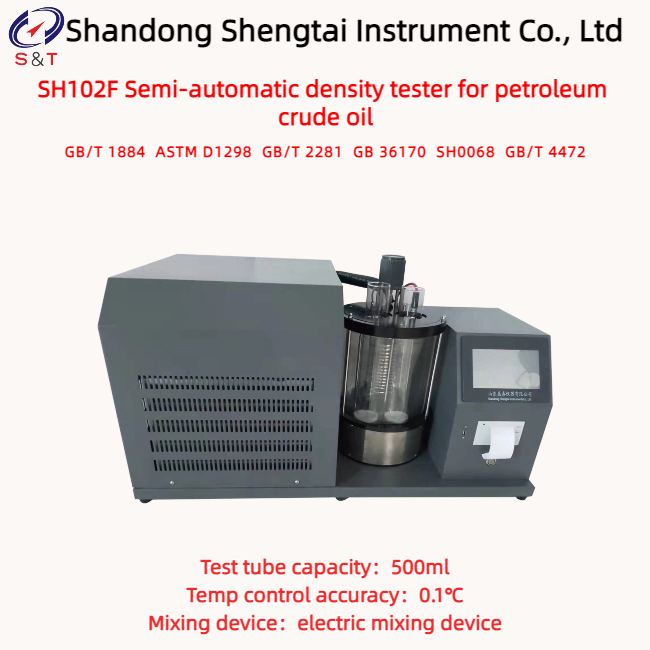

SH102F Semi-automatic density tester for petroleum crude oil

This instrument is designed and manufactured in accordance with the Chinese standard GB/T 1884 "Determination of Density of Petroleum and Liquid Petroleum Products (Densimeter Method)" and the requirements specified in ASTM D1298 and GB/T2 281-2008 for the density of coking oil products. It also complies with GB36170-2018.

Crude oil product density tester is a liquid petroleum product density analyzer developed by our company, suitable for measuring the density of crude oil and liquid petroleum products. It can also measure the density of chemical products and complies with the GB/T 4472 standard "Measurement of Density and Relative Density of Chemical Products."

Product Paramenters

● Adopting a color LCD large screen display, a fully Chinese human-machine dialogue interface, and an unmarked keyboard.

Compliant with standards GB/T 1884 ASTM D1298
Temp measurement range 0 ～ 100℃ or (customized -60℃ ～ 80℃)
Temp control accuracy 0.1℃
Test tube capacity 500ml
Mixing device electric mixing device
Cooling method Compressor cooling
Temp sensor Industrial high-precision PT100 sensor
Printing interface Enter the density value to automatically print the petroleum density value.
Result output It can also be equipped with a USB drive output function to output to the PC for long-term storage
Data storage USB data export function
Printer equipped with a micro printer
Whole power not exceeding 2000W
Working power supply AC220V ± 10% 50Hz
Instrument size 950 * 500 * 510mm
Instrument weight 48.83kg
Packaging size 1060 * 620 * 610mm
Weight 62kg

Crude Oil Semi-Automatic Density Tester 0 ～ 100℃ USB Drive Output ASTM D1298 0

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packing List

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Density tube 1 Piece 10-group set
3 Power line 1 Set
4 Cartridge fuse 1 Piece
5 Volumetric cylinder, 500mL 2 piece
6 Operating instruction 1 Piece
7 Packing list 1 Copy
8 Certificate of Conformity and Warranty Card 1 Copy

Crude Oil Semi-Automatic Density Tester 0 ～ 100℃ USB Drive Output ASTM D1298 1
