Crude oil wax precipitation point tester Crude oil testing EquipmentThermal characteristics of crude oil

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH0545
Minimum Order Quantity 1
Packaging Details Wooden box
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC220±22V Dc 12V+5V Standard SY/ T 0545-2012
Temp Range -40℃~ 600℃ Repeatability Error ±0.1℃
Heating Rate 0.1~100℃/min Display Mode 7-inch LCD Touch Screen Display
High Light

soil hardness tester

,

soil lab instruments

Leave a Message
Product Description

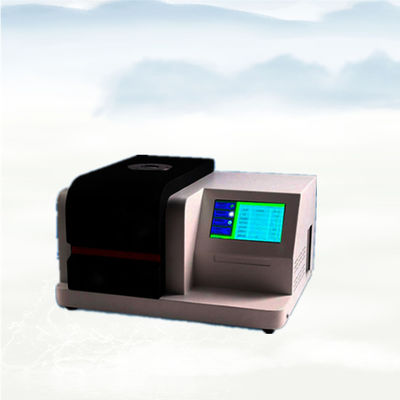

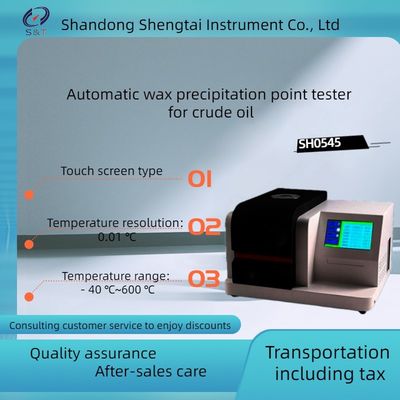

     SH0545 automatic crude oil wax precipitation point detector/meter/tester is touch screen type, can conduct glass transition temperature test, phase transition test, melting and thermal enthalpy value test, product stability, curing, specific heat, oxidation induction period test and other tests

wax precipitation point :The temperature when the wax crystals just begin to precipitate from the crude oil liquid system, and the sample curve begins to deviate from the baseline corresponding to the exothermic peak, expressed in Tc.



    The crude oil sample is heated to above the temperature of the precipitation point, and then cooled at a certain speed, the differential heat flow between the sample and the reference at each temperature point is recorded, and the crude oil wax analysis curve is drawn as the vertical coordinate and the temperature as the abscissa.



Name crude oil wax precipitation point detector/meter/tester
Standard SY T 0545-2012
Temp range -40℃~ 600℃
Temp resolution 0.01℃
Temprepeatability ±0.1℃
heating rate 0.1~100℃/min
Display mode 7-inch LCD touch screen display
Data interface the standard USB interface
Curve scan heating scanning, cooling scanning
Display mode using the human body sensing type touch screen
Instrument size 480 * 430 * 490mm



Crude oil wax precipitation point tester Crude oil testing EquipmentThermal characteristics of crude oil 0

Technical performance parameters:

●Standard:SY T 0545-2012 Thermal characteristics of crude oil and wax analysis
●Temp range: -40℃~ 600℃;

●Temp resolution: 0.01℃

●Temp fluctuation:±0.01℃

●Temprepeatability:±0.1℃

●heating rate:0.1~100℃/min

●Cooling rate:0.1~20℃/min

●constant tempe time:Program setting≤24h

●Curve scan: heating scanning, cooling scanning

●Display mode: using the human body sensing type touch screen

●USB communication interface, strong versatility, reliable communication without interruption, support for self-recovery connection function

●Metal furnace body structure, heating using indirect conduction mode, high uniformity and stability, reduce pulse radiation, better than the traditional heating mode.

●Display mode: 7-inch LCD touch screen display

●Data interface: the standard USB interface

●Instrument size: 480 * 430 * 490mm weight 35kg



OUR service

We advocate a technical marketing model, is a professional service, a pre-sale service, in-sales service and after-sales service throughout the body of trusted professional services.

Pre-sales service to provide customers with pre-sales technical advice, design of the test plan, assist users to complete the test, assist users in making inquiries for special auxiliary equipment for components.

After the contract is signed, we still negotiate and communicate with the user, confirm the specific test items and specific test requirements of the user, and communicate with the user's user department or user further. To ensure that the equipment provided to the user can fully meet the overall requirements of the user.

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.







Packaging & Delivery

1. Out packing:Standard export wooden case.

2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.

3. Checking teams: Specialized staff to inspect and classified your goods.

Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
