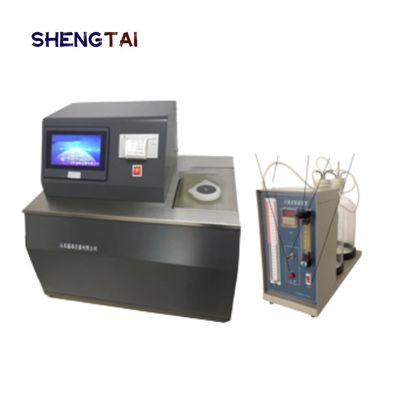

ASTM D6371 Automatic Dark Petroleum Crude Oil Cold Filtration Point Tester SH0248B

ASTMD6371 Automatic Dark Petroleum Crude Oil Cold Filtration Point Tester Single Hole Photoelectric Detection Technology

SH0248B Automatic cold filter point tester is based on the national standard SH/T 0248, using the modern advanced technology, set mechanical, optical, electronic and computer technology in one, can automatically complete the cold filter point test of petroleum products, the instrument adopts photoelectric detection technology, imported compressor refrigeration system to ensure that the required refrigeration depth.

Application: Used for analyzing the cold filter point of dark petroleum products, crude oil and other transparent or translucent petroleum products.

Instrument features:

embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;

Color touch screen;

The instrument tilts automatically, and the test results can be stored.

You can view historical data;

Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.

ASTM D6371 Cold Filter Plugging Point Apparatus for Diesel and Heating Fuels

ASTM D6371 cold filter plugging point tester

ASTM D6371 petroleum analytical instruments cold filter plugging point analyzer cold filter plugging point analyser

Automatic Pour Point Analyzer and Cold Filter Plugging Point Tester

Petroleum Products Automatic Cold Filter Point Tester

Completely Automatic Petroleum Oil Pour Point Tester/Cold Filter Plugging Point

Meet the standard: SH/T 0248 ASTMD 6371

1. Upgraded to 7-inch TFT color LCD display;

2. Refrigeration mode: fully enclosed and efficient refrigeration compressor.

3. Cold trap for test: 2.

4, detection method: imported OMRON photoelectric switch detection

5, after the upgrade can store historical data, convenient query;

At the same time can be equipped with U disk output function.

6, standard micro printer automatic measurement automatic printing

7. After the completion of the test, if there is no personnel to operate, set the automatic closing time of the refrigerator within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument.

★8, with laser printer interface, can be linked to HP1108 laser printer (optional).

★9, with date password setting function.

10, standard micro printer automatic measurement automatic thermal printing

★11, with TCP network transmission function(optional).

★12, can be uploaded and connected to LIMIS system(optional).

III. Technical parameters:

Instrument size: 650 * 480 * 620mm Instrument weight: 75kg

Package size: 690 * 520 * 660 Package weight: 80kg

Printing: dot matrix printing of 20 Chinese characters

Display: 128×64 Chinese characters display

Storage: 199 sets of historical data can be stored for easy query;

Result output: at the same time can be equipped with U disk output function, output to the PC for long-term storage

★ Data extension: laser printer interface, can be linked to HP1108 laser printer (optional).

★ Data protection: with date password setting function.

Standard printing: standard micro printer automatic measurement automatic thermal printing

★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade

★ Data management: can be connected to LIMIS system(optional).

★ Data memory: microcomputer instrument memory can be expanded to 16G.
