SH101B Gear Oil Mechanical Impurity Meter RT ～ 100℃ 4-Channel PID Temp Control GB/T 511

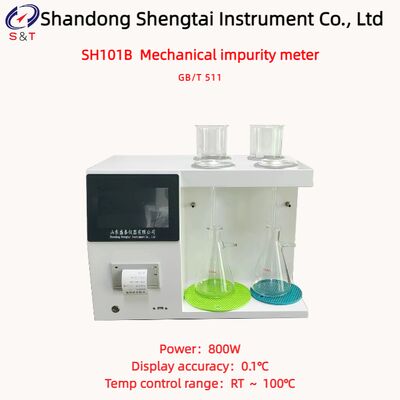

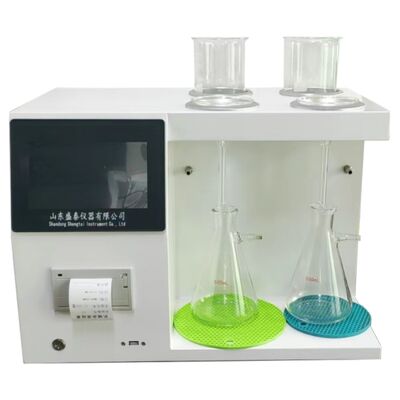

SH101B Mechanical impurity meter

The SH101B automatic mechanical impurity content analyzer (without balance) is designed according to the requirements of the national standard GB/T511 "Determination of Mechanical Impurities in Petroleum Products and Additives (Weight Method)". It is suitable for measuring the content of mechanical impurities in various light and heavy oils, lubricants, and additives in petroleum products. After weighing, the weight is input from the touch screen and the instrument automatically prints.

Method Summary

Weigh a certain amount of sample and dissolve it in the solvent used. Filter it through a constant weight filter paper or microporous glass filter. Impurities left on the filter paper or microporous glass filter are called mechanical impurities

Execution standard: GB/T 511-2010 "Petroleum and petroleum products and additives - Determination of mechanical impurities"

Performance characteristics:

● Built-in oil-free maintenance-free vacuum pump, double solvent oil preheating system, one instrument host to complete all functions, without external vacuum pump and water bath.

● 7-inch TFT true color touch screen, 800×480 resolution, human-computer interaction is simple and easy to use.

● Built-in oil-free maintenance-free vacuum pump, programme-controlled dual-channel pumping and filtration.

● 4-channel PID temperature control, precise control of solvent oil preheating temperature and insulation funnel temperature.

● Built-in formula, automatic calculation of test results, and can save and print data.

● With automatic data query function, it is convenient to find test records and statistical data, and the results can be printed at any time.

● It has a date and password setting function.

● Standard micro printer with automatic measurement and thermal printing

Technical Specifications:

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing List
